4.4.4 pH screens
pH Detail screen

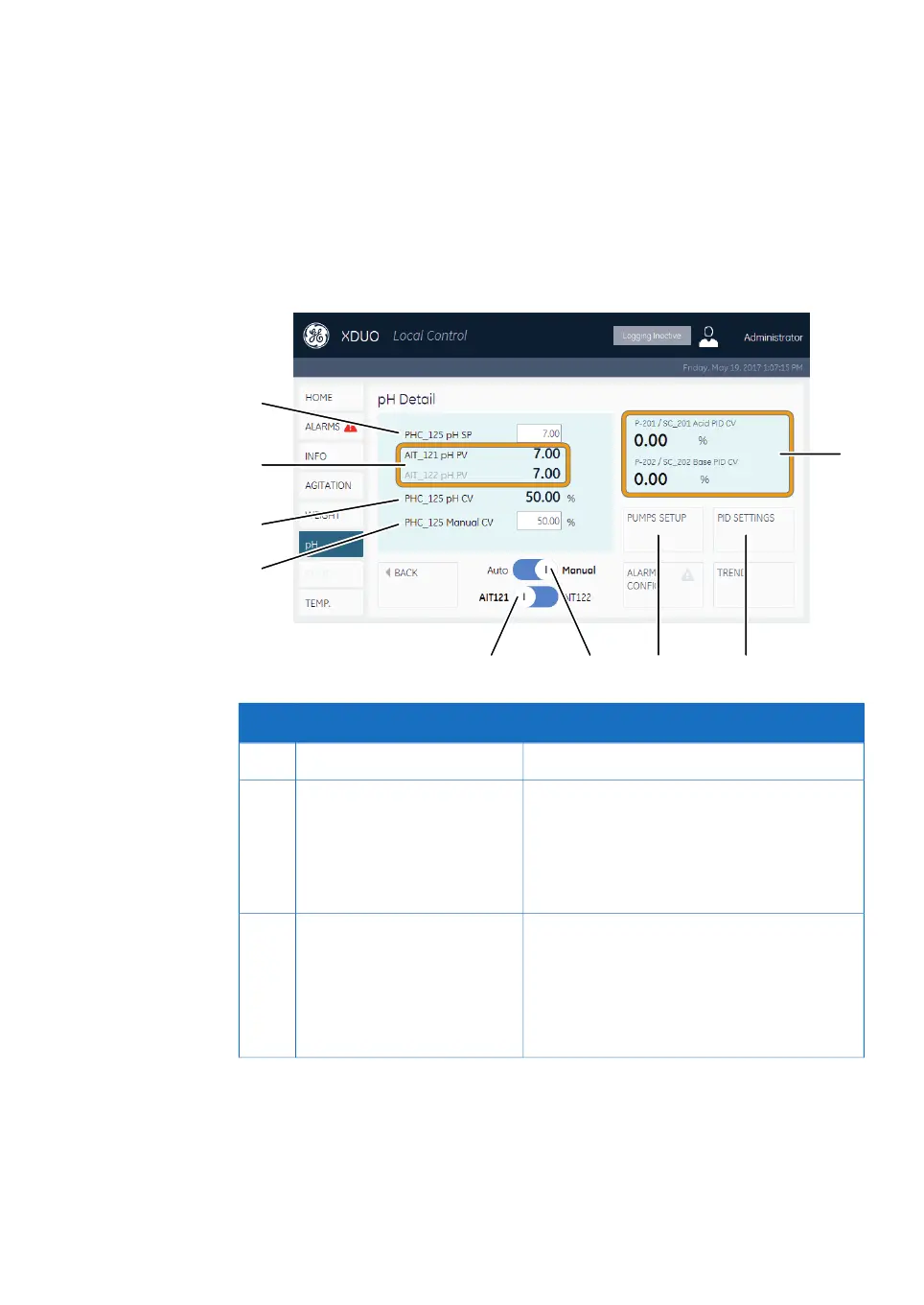

The pH Detail screen is opened by tapping pH on the navigation toolbar. The following
illustration shows an example of the pH Detail screen.
DescriptionDisplay/ButtonPart
pH setpoint (SP), text box for input.PHC_125 pH SP1
Current pH value (PV) displays for probes 1
and 2. The currently selected probe is shown
in black.
AIT_121 pH PV
AIT_122 pH PV
2
Two values are shown if XDUO mixer has
dual pH monitoring.
pH controlled variable (CV) display.
Note:
In Auto mode this value is calculated by the
PLC. In Manual mode, PHC_125 Manual CV
is used as PHC_125 pH CV.
PHC_125 pH CV3
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 103
4 User interface
4.4 Detail screens
4.4.4 pH screens
