GE Xcellerex XDM Series User Manual

4.2 Adjustment and control screens
XDUO Mixer System Info screen
The XDUO Mixer System Info screen is opened by tapping INFO on the navigation toolbar.

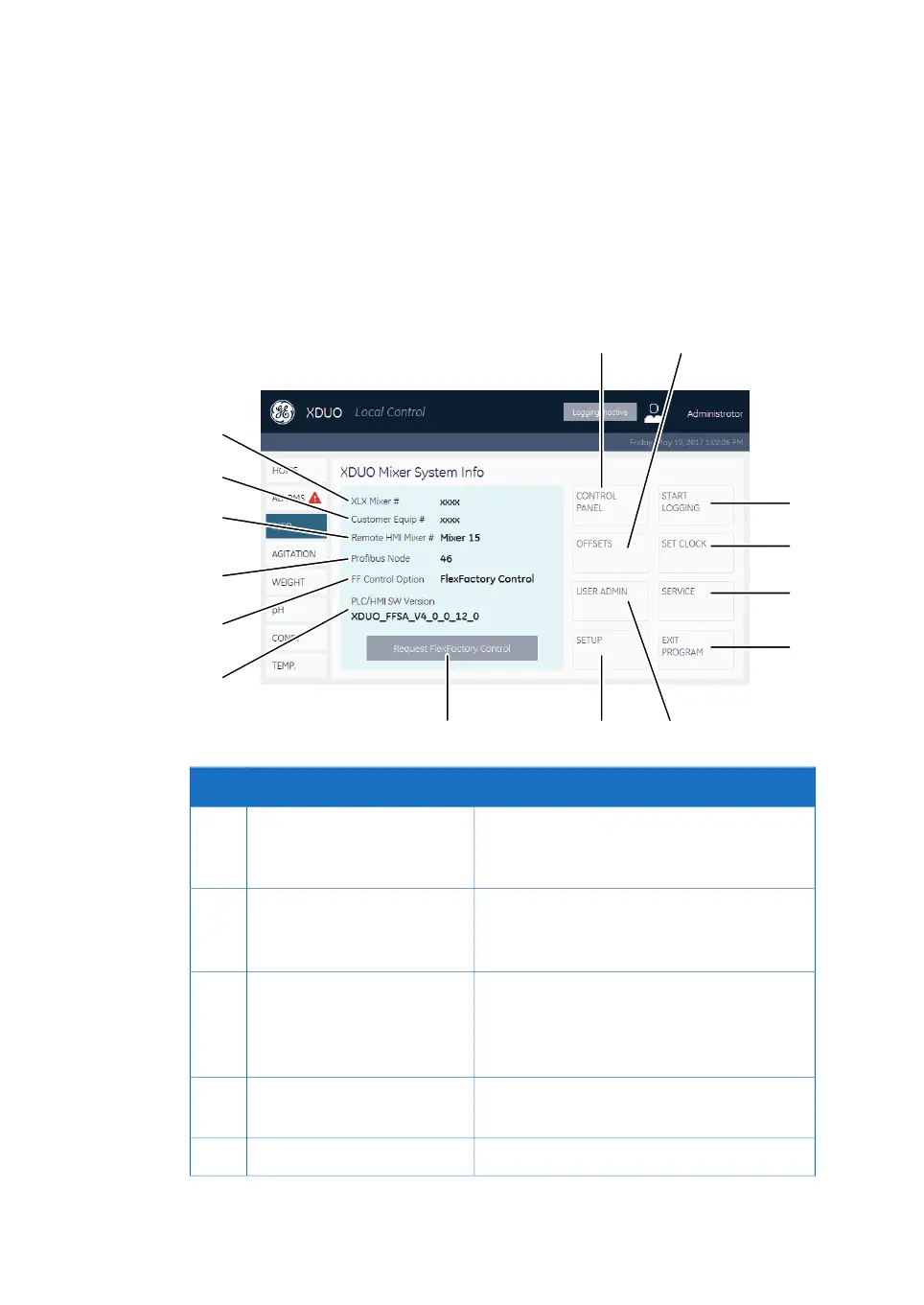

The following illustration shows the XDUO Mixer System Info screen.
1 2
3
4
5
6
789
10
11
12
13
14
15
FunctionDisplayPart
Button to open the Control Panel screen,
which allows access to Windows CE Control
Panel.
CONTROL PANEL1
Button to open the Transmitter Offsets
screen. Transmitter Offsets screen, on
page 111.
OFFSETS2
Button to start or stop data logging. The cur-
rent logging status is shown on the top tool-
bar (Logging Inactive / Logging Active). See
Start and stop data logging, on page 205.
START LOGGING / STOP
LOGGING
3
Button to open Time Management screen.
See Time Management screen, on page 92.
SET CLOCK4
Button to open the Service screen.
2
SERVICE
1
5
90 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
4 User interface
4.2 Adjustment and control screens
