gefran ADV200 SP Series User Manual

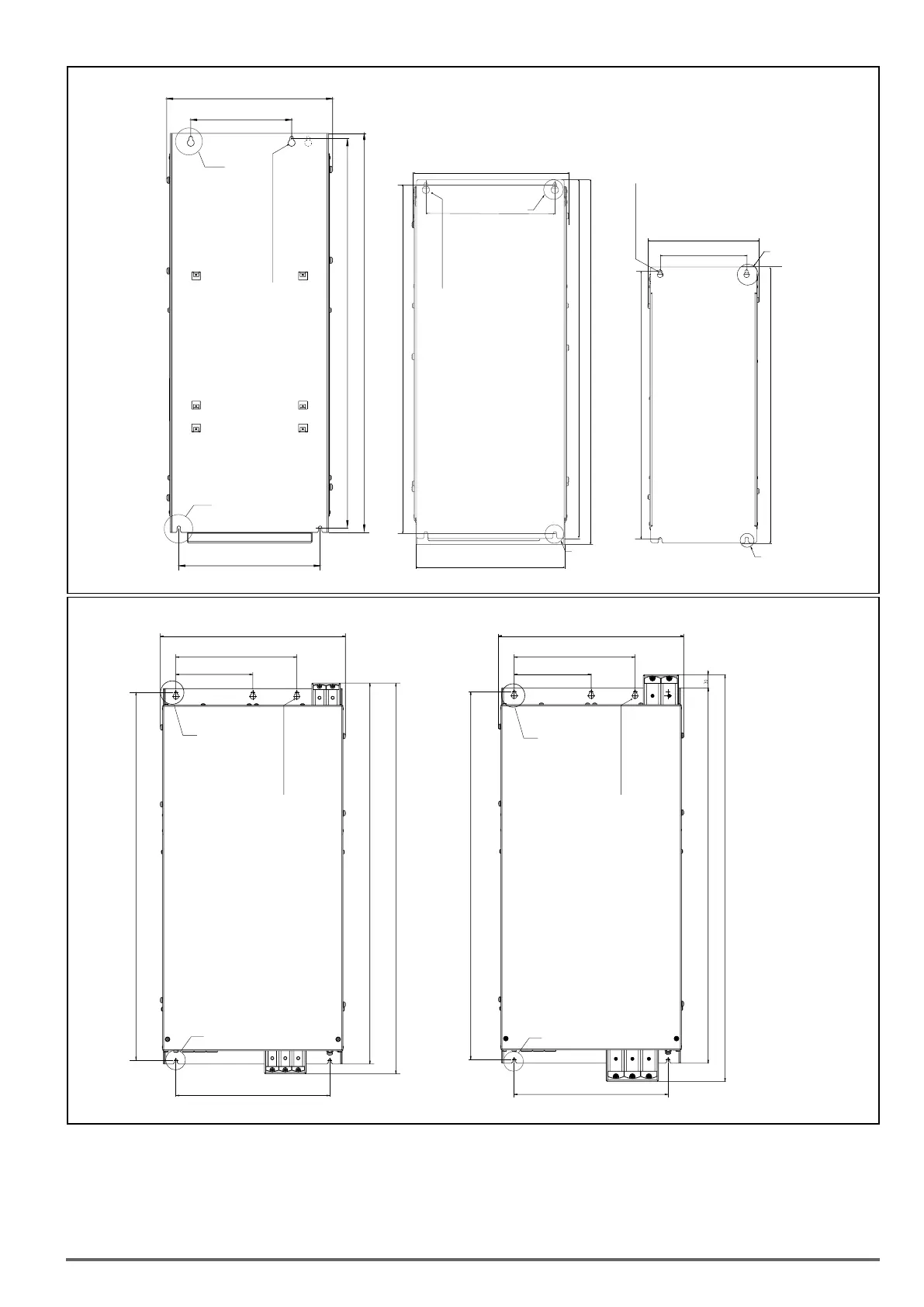

ADV200 SP • Quick start up guide - Specification and installation 15
ADV200-...-DC
Taglia 3
Size 3
150 [5.91”]
500.1 [19.7”]
(A)
No. 4 screw 5MA
(B)
Fissaggio a muro
Wall mounting
187.6 [7.4”]
517 [20.35”]
ADV200-...-DC
Taglia 4
Size 4
220 [8.66”]
612 [24.09”]
595 [23.43”]
(A)
(B)
No. 4 screw 6MA
268 [10.55”]
616 [24.25”]
267 [10.51”]
ADV200-...-DC
Taglia 5
Size 5
(B)
(A)
No. 4 screw 6MA
311 [12.24”]
190 [7.48”]
730.4 [28.76”]
748 [29.45”]
265 [10.43”]
Fissaggio a muro
Wall mounting
No. 5 screw 6MA
ADV200-...-DC
Taglia 61320
Size 61320
(B)
421 [16.57”]
350 [13.78”]
175 [6.89”]
836 [32.91”]
853 [33.58”]
(B)
(A)
(A)
350 [13.78”]
175 [6.89”]
275 [10.83”] 275 [10.83”]
421 [16.57”]
888 [34.96”]
No. 5 screw 6MA
924.5 [36.4”]
836 [32.91”]
865.5 [34.07”]
ADV200-...-DC
61600
Taglia 61600
Size
