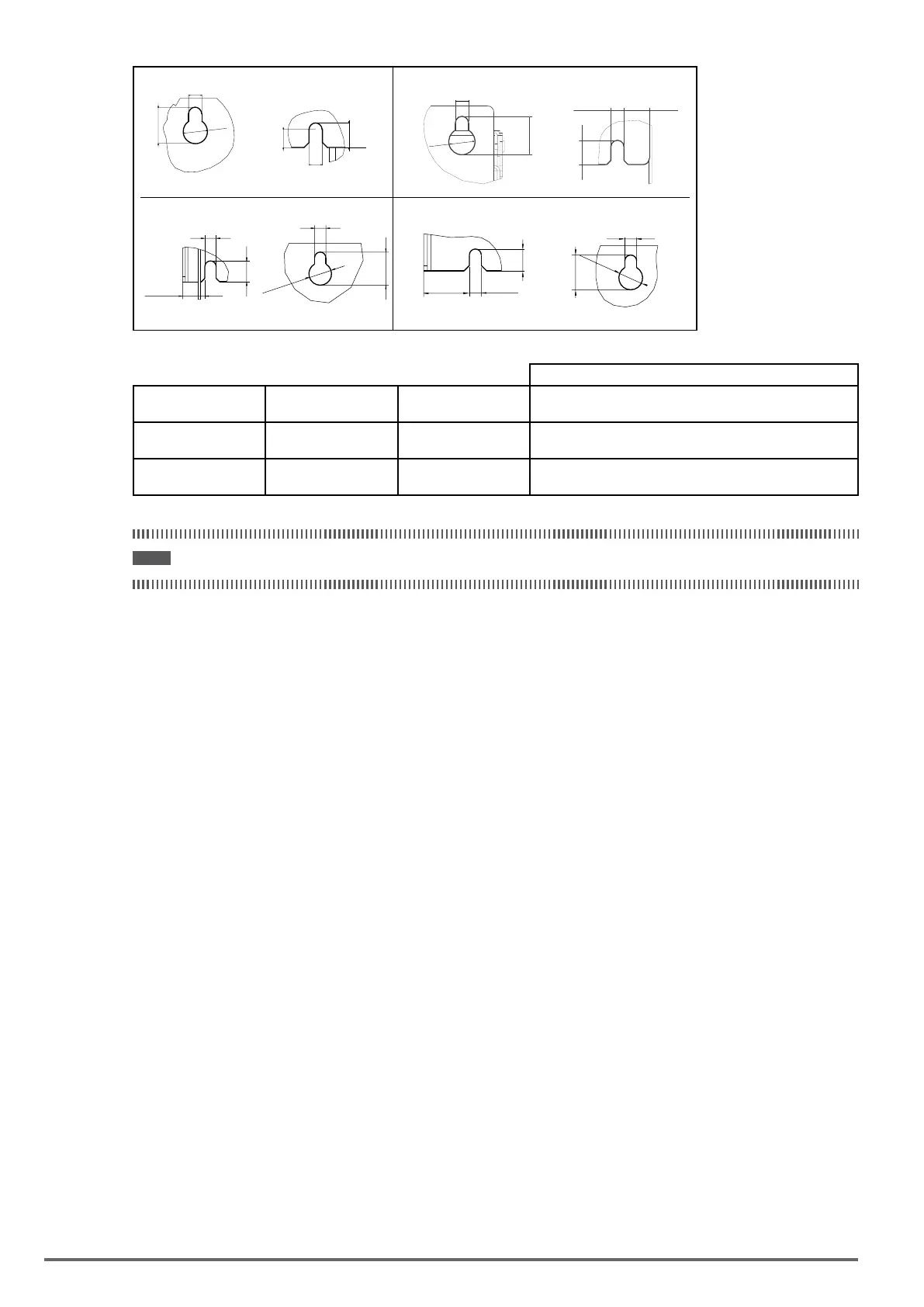

16 ADV200 SP • Quick start up guide - Specification and installation
(B)(A)
7.25
[0.29”]
5.5 [0.21”]
5.5 [0.21”]
15
[0.59”]
Ø
10 [0.39”]
11.25
[0.44”]
6.5 [0.26”]
Ø
13
[0.51”]
19
[0.75”]
6.5 [0.26”]
12.5 [0.49”]
12
[0.47”]
Taglie 1-2-3
Sizes 1-2-3
Taglia 4
Size 4
(B)(A)
Taglia 5
Size 5
(B)(A)
6.5
[0.26”]
19
[0.75”]
Ø
13
[0.51”]
6.5 [0.26”]
12
[0.47”]
12.75 [0.50”]
(B)(A)
Taglia 6
Size 6
6.5 [0.26”]
6.5 [0.26”]
Ø
13
[0.51”]
19
[0.75”]
24.95 [0.98”]
12
[0.47”]
Recommended screws for fastening
Size 1 (ADV 1...) Size 2 (ADV 2...) Size 3 (ADV 3...) 4 x M5 x 12 mm screws + Grover (spring-lock) washer +
Flat washer
Size 4 (ADV 4...) Size 5 (ADV 5...) 4 x M6 x 16 mm screws + Grover (spring-lock) washer +
Flat washer
Size 6 (ADV 6...) 5 x M6 x 16 mm screws + Grover (spring-lock) washer +
Flat washer
Note! Other dimensions see chapter “9.9 Weight and dimensions”, page 77.
