Orthoralix 8500 DDE
032-0253-EN Rev 33-4
Anatomical Reference Indications
It is strongly recommended to pay attention to the L and R letters to identify the anatomical side
and to avoid any mistake during the evaluation.
Once the Pan procedure has been performed, positioning references (L and R) will be displayed
on the acquired image:
• L (Left) to indicate the left side of the patient’s mouth
• R (Right) to indicate the right side of the patient’s mouth
On symmetrical images, both L and R are displayed. No letter is placed in correspondence of the
center of the mouth.
Tubehead Mineral Oil Safety
The tubehead contains mineral insulating oil. Such oil is potentially harmful in
case of ingestion or contact with skin or mucosa. In case of a defect or fault, an
oil leak can occur. Avoid direct contact with the oil and do not inhale its vapors.
Call your local Service Representative to repair the problem.
In case of minor leaks, the oil can be wiped away with a dry cloth, wearing
protective gloves and flush eyes with copious amounts of water.
LASER RADIATION
DO NOT STARE INTO BE AM
CAUTION
Complies with FDA performance standards for
laser products except for deviations pursuant
to Laser Notice No. 50, dated June 24, 2007
Wavelength: 650 nm, output Pow er ≤1mW
CLASS II LASER PRODUCT
LASER RADIATION
DO NOT STARE INTO BE AM
CAUTION
Complies with FDA performance standards for
laser products except for deviations pursuant
to Laser Notice N o. 50, date d June 24, 200 7
Wavelength: 650 nm, output Pow er ≤1mW
CLASS II LASER PRODUCT

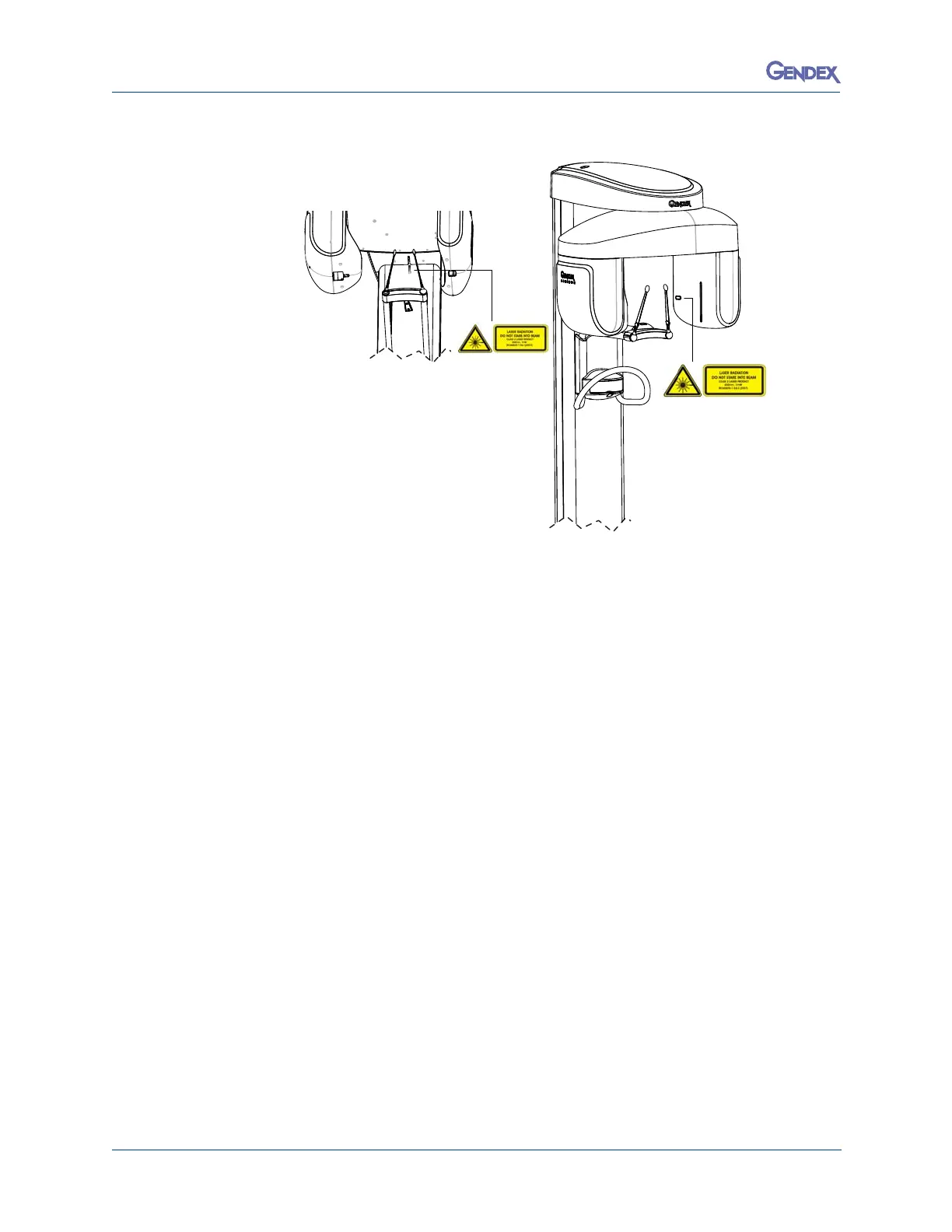

Midsagittal plane laser
2 lasers:
Frankfurt plane laser
Cuspid laser
