GREE GMV5 INDOOR UNIT SERVICE MANUAL
105
3.8 Installation of Floor Ceiling Type unit

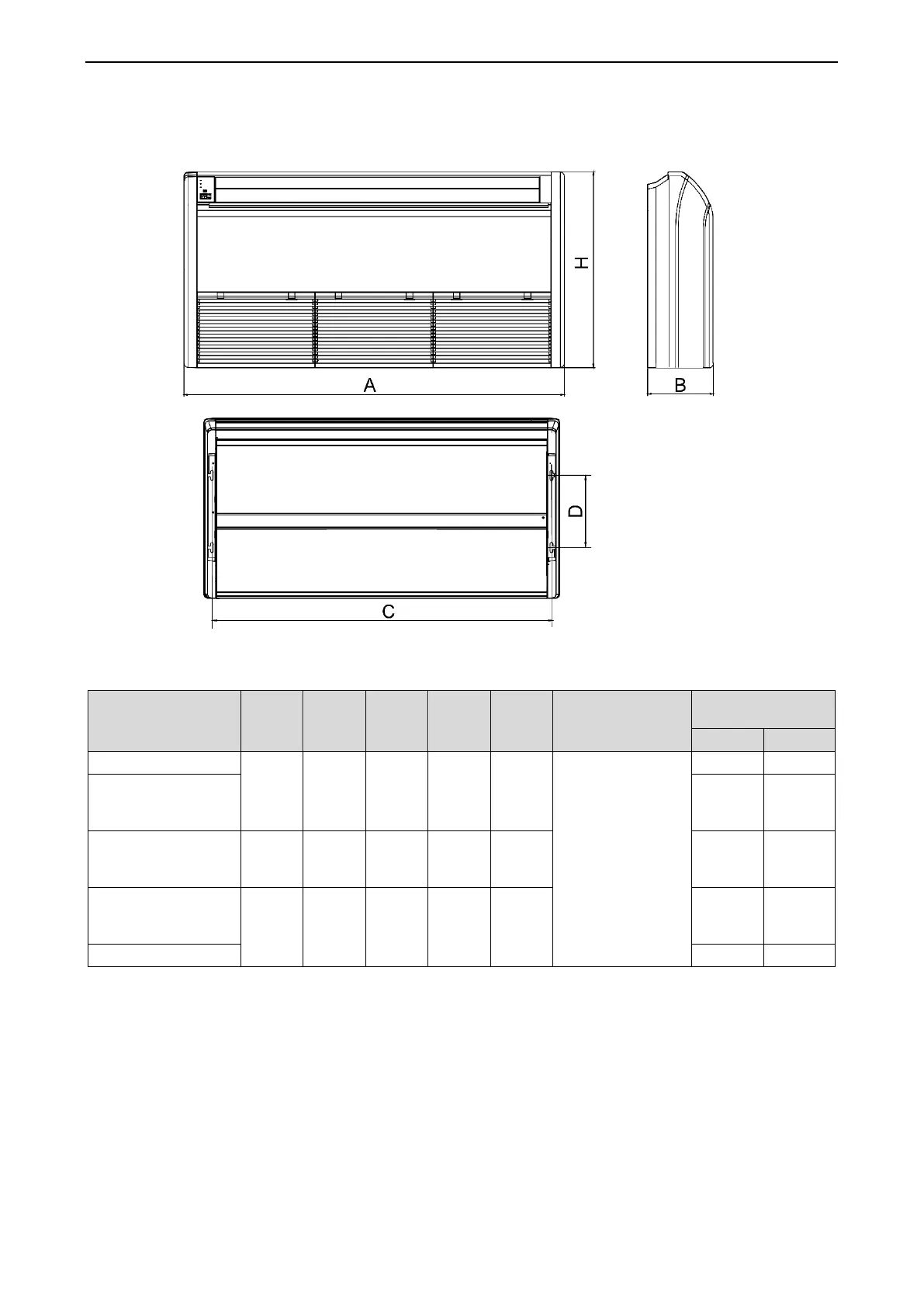

3.8.1 Outline and installation dimension
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Models:
A(mm)
B(mm)
C(mm)
D(mm)
H(mm)
Drainage pipe(Outer
Diameter × wall
thickness) (mm)
Outer diameter of
connection pipe(mm)
Liquid pipe
Gas pipe
GMV-ND28ZD/A-T
1220
225
1158
280
700
Ф17×1.75
6.35
9.52
GMV-ND36ZD/A-T
GMV-ND50ZD/A-T
GMV-ND56ZD/A-T
6.35
12.7
GMV-ND63ZD/A-T
GMV-ND71ZD/A-T
GMV-ND90ZD/A-T
1420
245
1354
280
700
9.52
15.9
GMV-ND112ZD/A-T
GMV-ND125ZD/A-T
GMV-ND140ZD/A-T
1700
245
1634
280
700
9.52
15.9
GMV-ND160ZD/A-T
9.52
19.05
