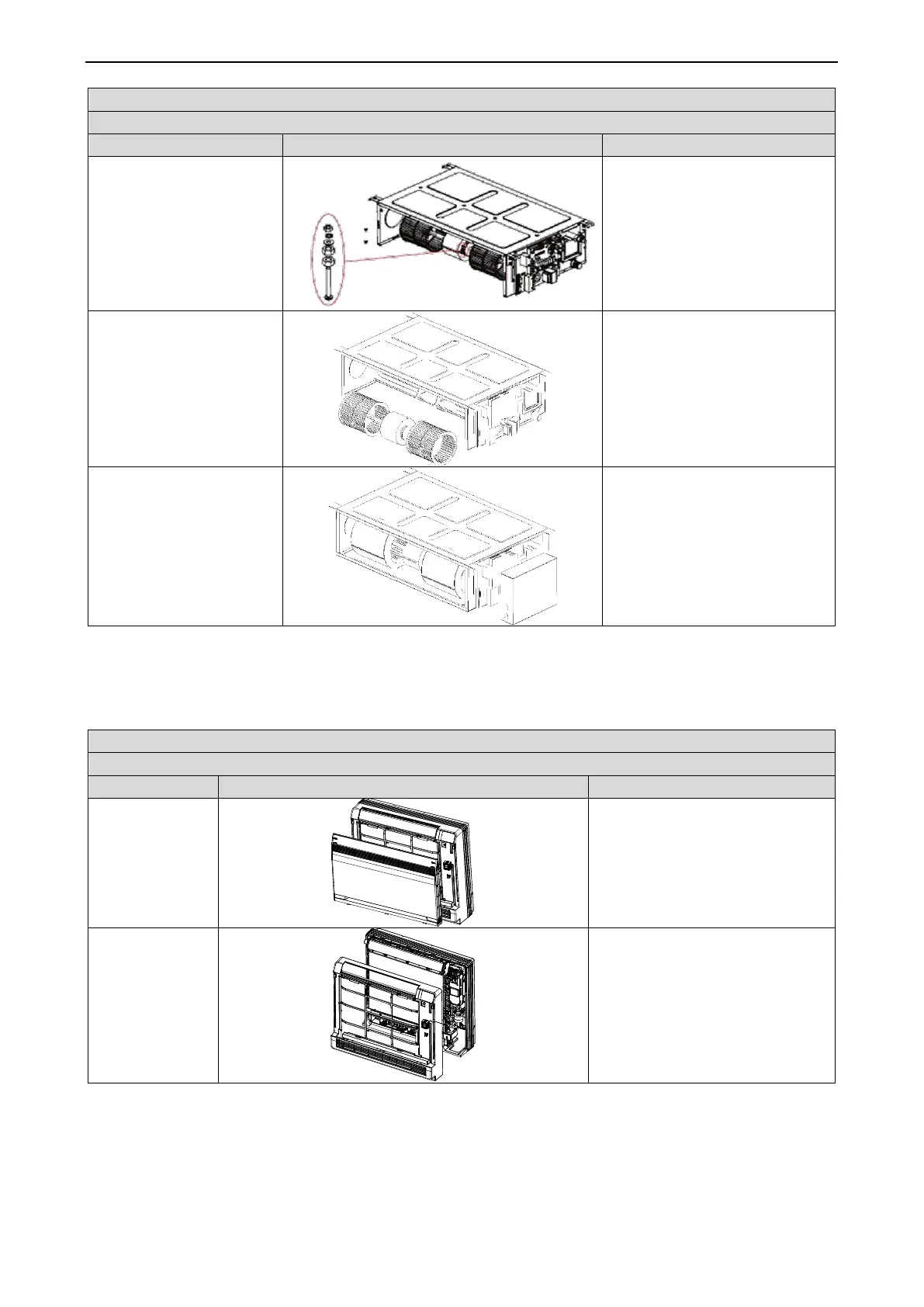

GREE GMV5 INDOOR UNIT SERVICE MANUAL

177

Motor and fan

Precondition: The power supply has been disconnected.

Step

Diagram

Operation Procedure

4. Remove the louver and

motor.

●Use a screwdriver to unscrew the

louver and loosen the fasteners of

the motor.

5. Install a new motor.

●Remove the motor from the

support and remove the louver

from the motor. Then, remove the

motor.

●Install a new motor.

6. Install units in a reverse

order of this procedure.

●Assemble units based on the

reverse order of this procedure

and power on the units for test.

4.11 Console Type Indoor Unit

Note:

The following steps are specific for GMV-ND22C/A-T units. For other units, the assembly and

disassembly procedure is similar except the numbers of louvers and motors.

Removal of Fan Motor

Remark: before removing, making sure power is disconnected.

Step

Diagram

Operation Procedure

1. Open the panel

●Press clasps at both sides to

“OPEN” position.

2. Remove filter

and front case

●Remove 5 screws fixing the front

case.
