Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
247
NO.
Model
GMV-NX224P/A(X2.0)-M
Qty.
Product Code
CM800N3620
Part Name
Part Code
21
Capacitor CBB65
33000074
1
22
Terminal Board
4201115404
1
23
Main Board
30226000004
1
24
Terminal Board
4201800002601
1
25
Top Cover Plate Sub-Assy
01262200013
1
26
Left Side Plate Sub-Assy
01312200015
1
27
Sensor Sub-assy
39008000103G
1
28
Display Board
30296000040
1
Above data is subject to change without notice, pls reference the SP in global service website.
5.12 Console Type Indoor Unit

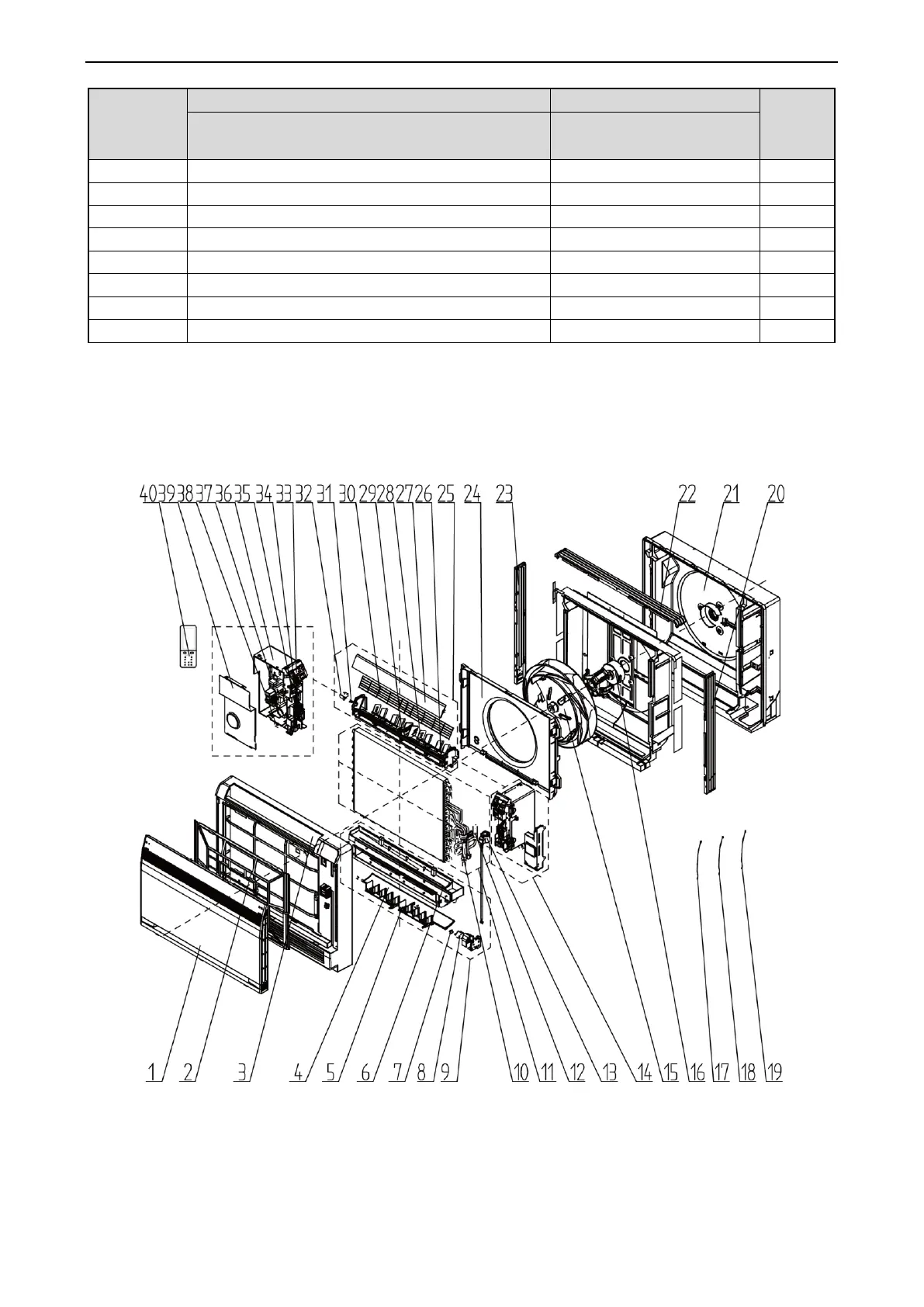

Exploded View of GMV-ND22C/A-T, GMV-ND28C/A-T, GMV-ND36C/A-T, GMV-ND45C/A-T, GMV-
ND50C/A-T
