5.10 Slim Duct Type

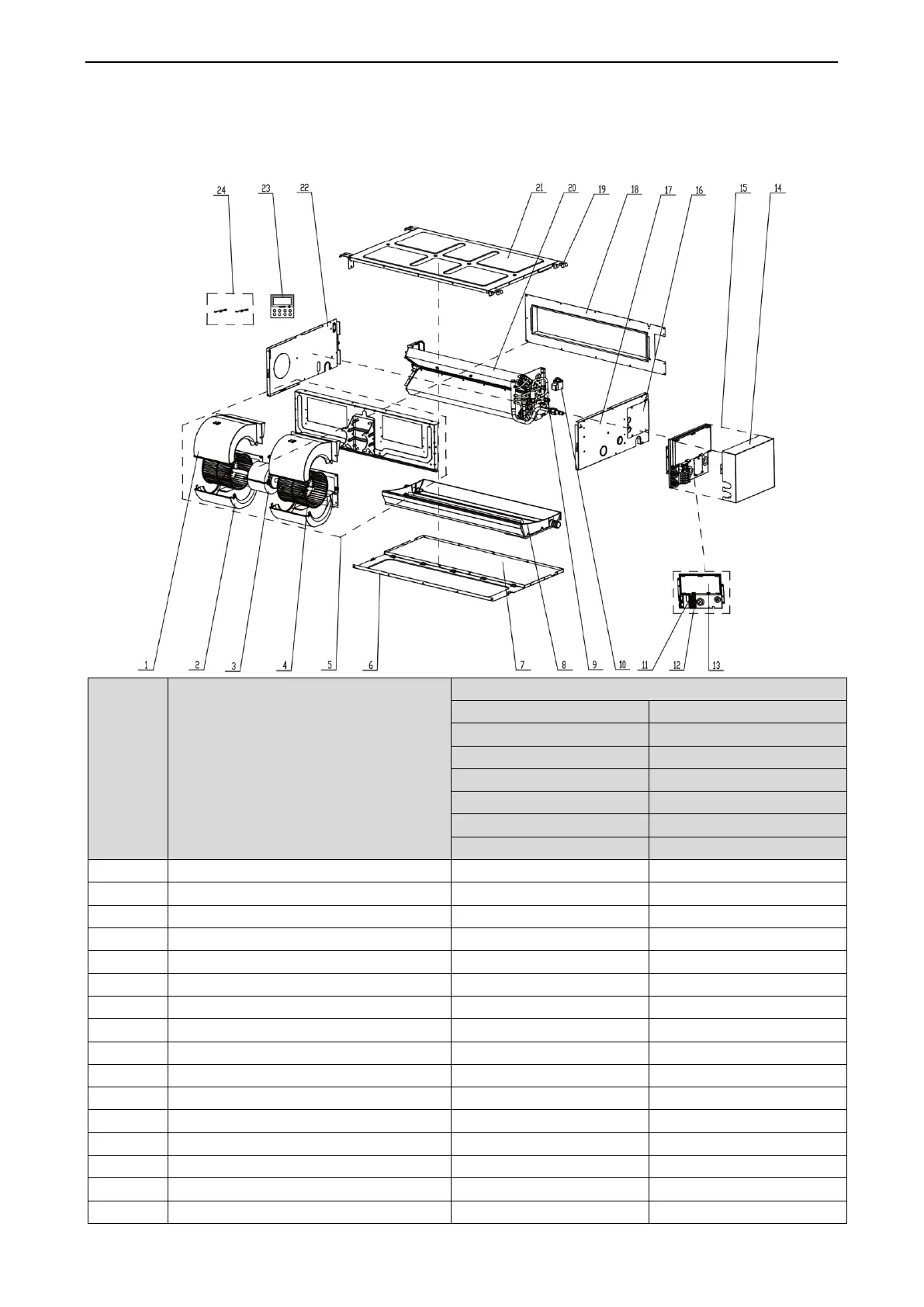

Exploded View of GMV-ND22PL/B-T, GMV-ND25PL/B-T, GMV-ND28PL/B-T, GMV-ND32PL/B-T
GMV-ND36PL/B-T:
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND22PL/B-T
CM800N3560
GMV-ND25PL/B-T
CM810N0010
GMV-ND28PL/B-T
CM810N0020
GMV-ND32PL/B-T
CM800N3570
GMV-ND36PL/B-T
CM810N0030
Part code
Quantity
1
Propeller Housing(Upper)
26905200018
2
2
Propeller Housing(Lower)
26905200019
2
3
Fan Motor
15704100001
1
4
Centrifugal Fan
10425200003
2
5
Centrifugal fan assy
15404100031
1
6
Cover Plate
01265200057
1
7
Bottom Cover Plate Assy
01265200065
1
8
Water Tray Assy
01285200020
1
9
Electronic Expansion Valve
07334463
1
10
Electric Expand Valve Fitting
4304413215
1
11
Terminal Board
42011106
1
12
Terminal Board
4201800002601
1
13
Main Board
30226000029
1
14
Electric Box Cover
01425200023
1
15
Electric Box Assy
01394100160
1
16
Closing Plate Sub-Assy
01494100010
1
