Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
160

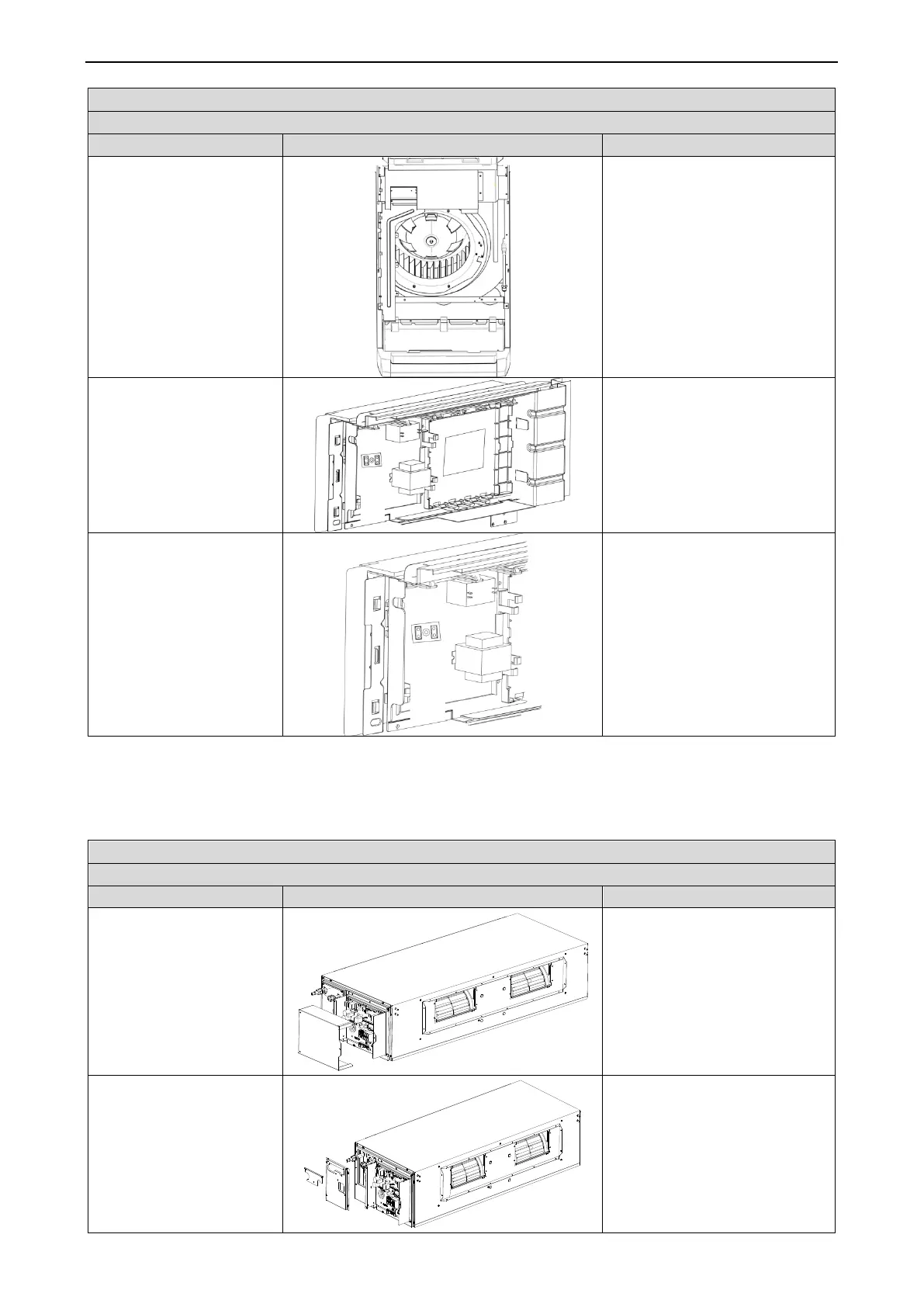

Removal and Assembly of electric box
Remarks: Before removing the electric box, make sure to cut off the power firstly.
Step
Illustration
Handling Instruction
2. Unscrew the screws on
the bottom panel and then
pull it out outwards.
Unscrew the screws on the bottom
panel and then pull it out
outwards.
3. Unscrew the screws on
the electric box and then
open the cover of it.
Unscrew the screws on the electric
box and then open the cover of it.
4. Connect the power cord
and the connection pipe.
Connect the power cord and the
connection pipe.
4.2 High Static Pressure Duct Type
Note:
The following steps are specific for GMV-ND71PHS/A-T units. For other units, the assembly and
disassembly procedure is similar except the specifications of centrifugal fans and motors.
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
1. Remove the line
connecting to the motor.
●Use a screwdriver to unscrew the
electric box cover.
●Remove from the master board
the line connecting to the motor
and remove the tie.
2. Disassemble the seal
plate and cover plate.
●Use a screwdriver to unscrew the
seal plate and cover plate and
then remove them.
