 Installation of the unit must be in accordance with National Electric Codes and local regulations.
 Improper installation will affect unit’s performance, so do not install the unit by yourself. Please
contact local dealer to arrange professional technicians for the installation.
 Do not connect power until all installation work is finished.
3.10.4 Selection of air switch and power cord
Model
Power Cord Size
Air Switch apacity
(A)
Minimum Sectional
Area of Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power Cord
(mm
2
/AWG)
GMV-ND22PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND25PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND28PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND32PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND36PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND40PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND45PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND50PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND56PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND63PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND72PL/B-T
220-240V~50Hz/208-
230V~60Hz
6
1.0/AWG18
1.0/AWG18

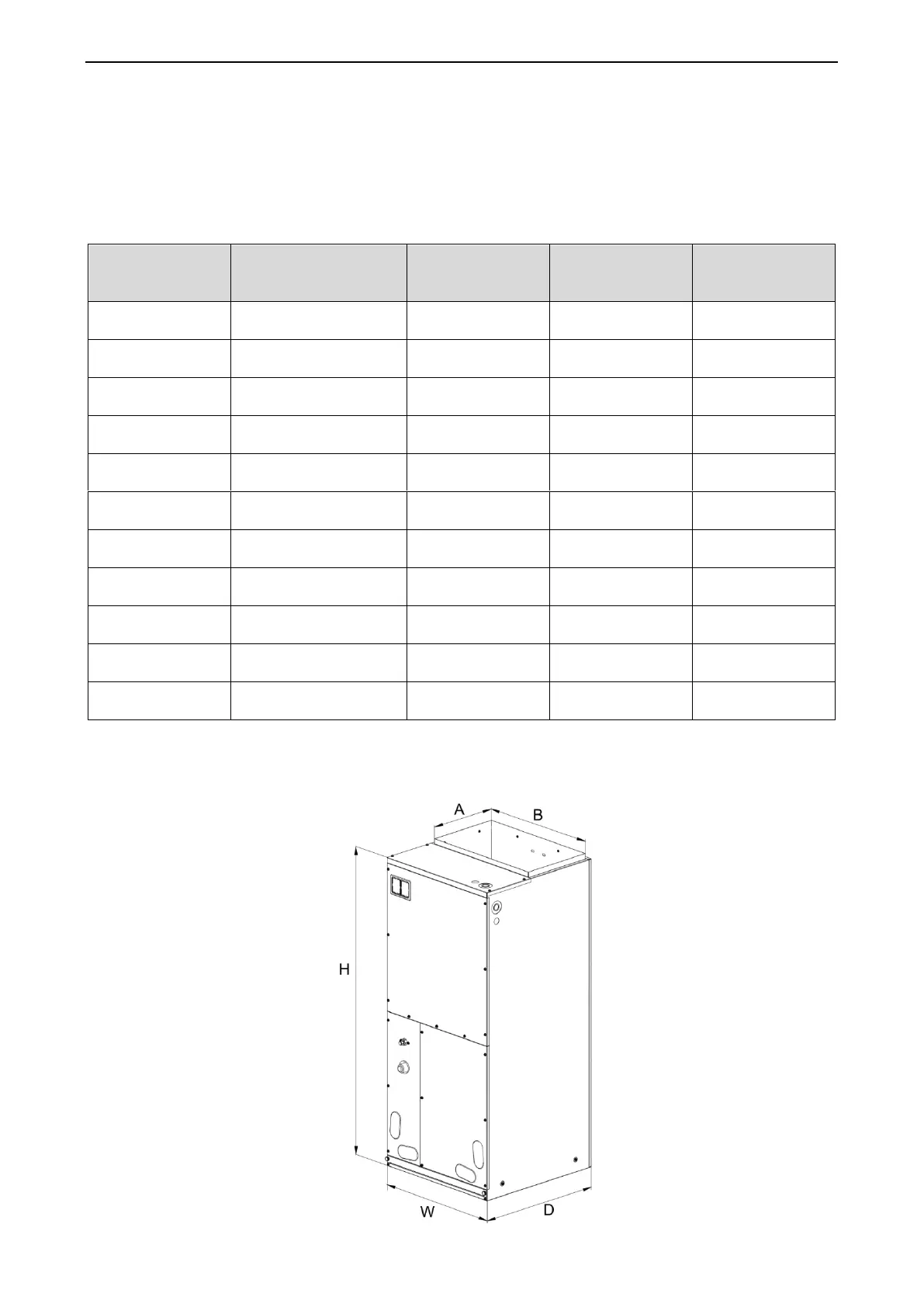

3.11 Installation of Air Handler type Indoor Unit
3.10.1 Outline and installation dimension

Gree GMV-ND22C/A-T Specifications

General

Brand	Gree
Model	GMV-ND22C/A-T
Category	Air Conditioner
Language	English
