Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
119
tightly.
Notes:
① Be careful in bending the connection pipes, or you would damage the pipes.
② If the tightening torque for the flare nut is too great, leakage would happen.
3.12.4 Selection of air switch and power cord
Model
Power Cord
Size
Air Switch
apacity
(A)
Minimum Sectional Area of
Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power Cord
(mm
2
/AWG)
GMV-ND22C/A-T, GMV-ND28C/A-T
GMV-ND36C/A-T, GMV-ND45C/A-T
GMV-ND50C/A-T
220-240V
~ 50Hz
6
1.0/AWG18
1.0/AWG18
3.13 Installation of Super High Static Pressure Duct Type
Indoor Unit

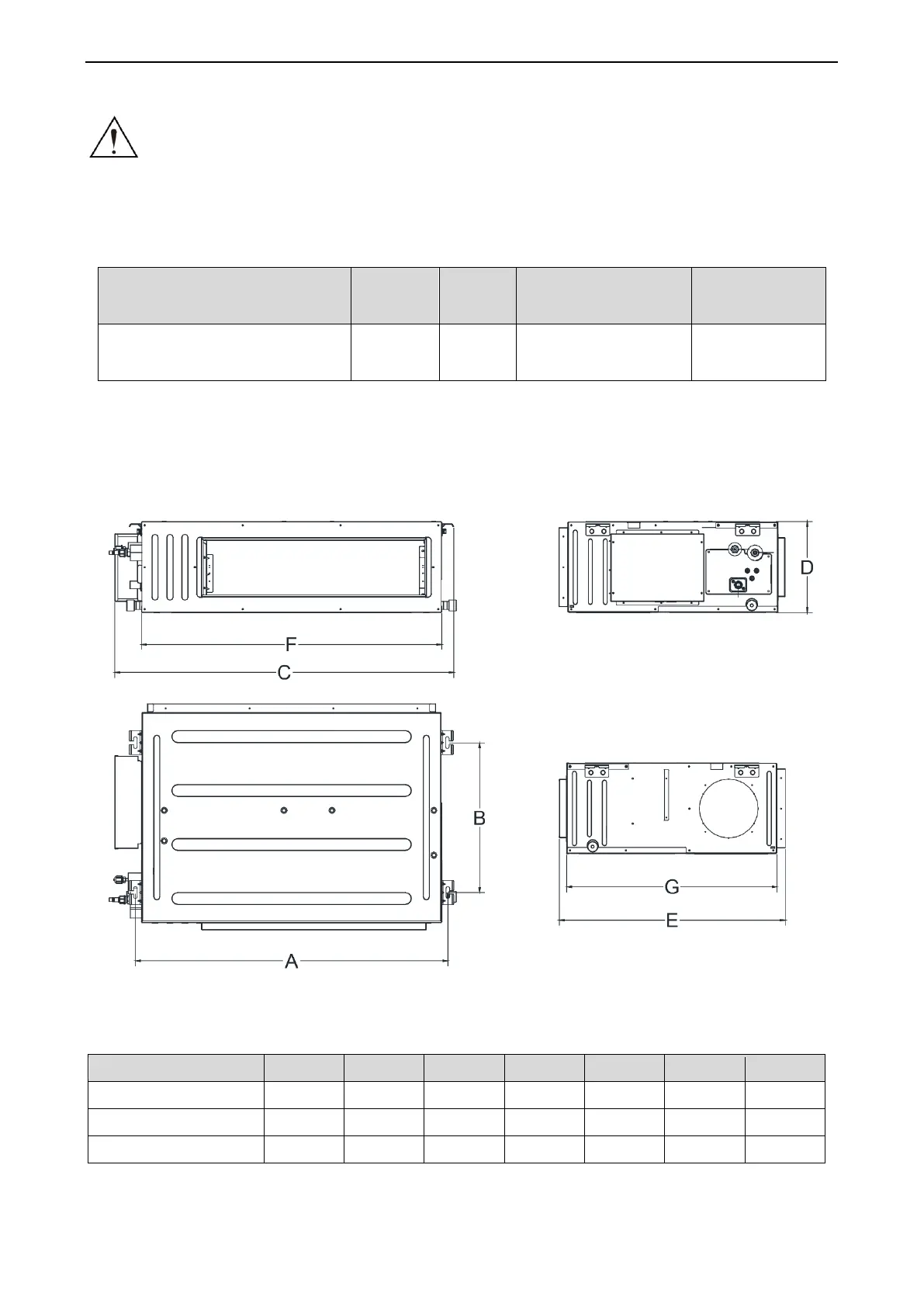

3.13.1 Outline and installation dimension
Model:
GMV-ND22PHS/B-T~ GMV-ND160PHS/B-T
Below are dimensions of A, B, C, etc. for different models:
Unit: mm/inch
Model
A
B
C
D
E
F
G
GMV-ND22~50PHS/B-T
740
500
830
300
754
700
700
GMV-ND56~80PHS/B-T
1040
500
1130
300
754
1000
700
GMV-ND90~160PHS/B-T
1440
500
1530
300
754
1400
700
