5. Assembly

PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 51

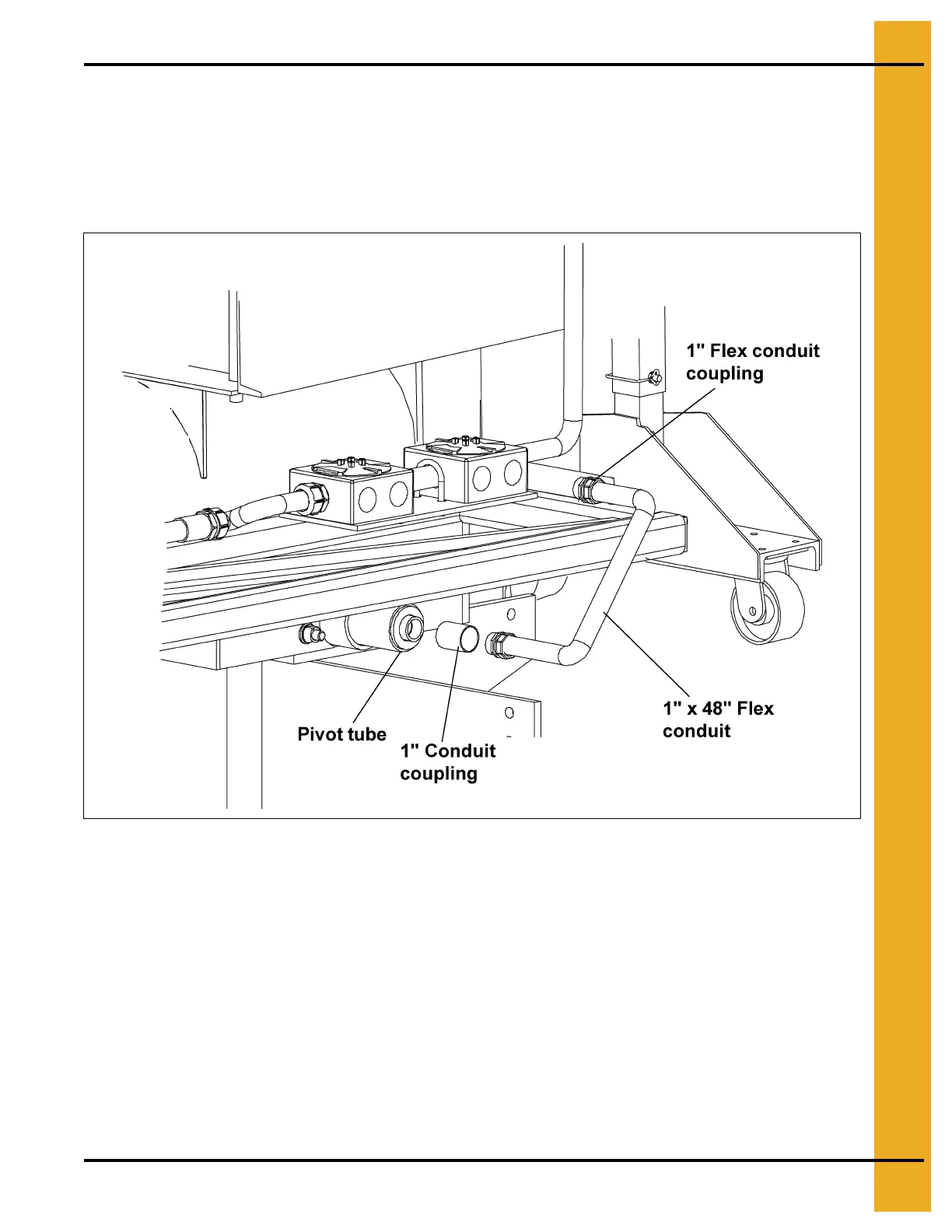

8. Connect the 1" x 48" liquid-tight flex conduit to the pivot tube using one 1" conduit coupling and

one 1" liquid-tight flex conduit coupling. (See Figure 5AK.)

9. Connect the 1" x 48" liquid-tight flex conduit to one of the junction boxes using one 1" liquid-tight

flex conduit coupling. Connect the leads as required. (See Figure 5AK.)

10. The customer is to provide proper power cord protection between the pivot assembly and the

sump transition. (See Figure 5AK.)

Figure 5AK

11. The multi-conductor power cord can be connected with the 14 AWG/3 wire, 14 AWG/4 wire and

10 AWG/4 wire cords in an explosion proof junction box.

12. Hardwire foot switch to terminals 3 and 4 in control panel. (See Schematic on Page 70.)

13. Hardwire motor thermostat J-wires to terminals 1 and 2 in control panel. (See Schematic

on Page 70.)

14. Hardwire motors to starters in control panel. (See Schematic on Page 70.)
