17
Sprayer setup
GB 05 07 01
Suspension (SPC only)Suspension (SPC only)
Suspension (SPC only)Suspension (SPC only)
Suspension (SPC only)
The SPC boom features adjustable suspension for
24-28 m booms and 30 m booms.

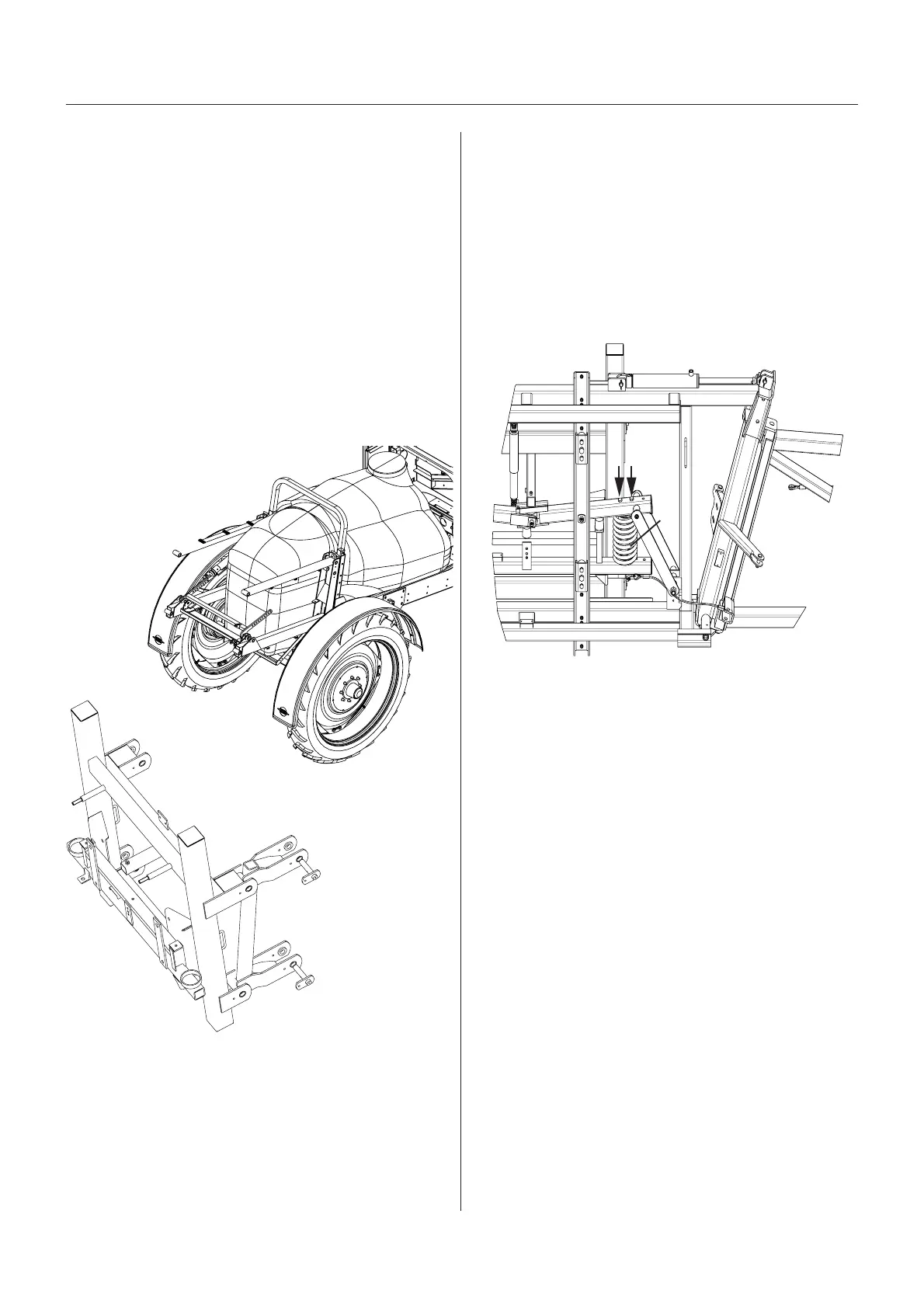

The spring A has two assembly positions as shown on
the illustration below. Position 1 is meant for 24-28 m
booms and position 2 is meant for 30 m booms.
Please control that the setup of the suspension corre-
sponds to the actual boom width of your sprayer.
T212-0019
12
A
Extension kExtension k
Extension kExtension k
Extension k
it fit f
it fit f
it f
or centror centr
or centror centr
or centr
e sectione section
e sectione section
e section
If the sprayer is fit with large-size tyres, the boom centre
section may be in lack of sufficiant space in unfolded
position.
To obtain sufficiant space, an extension kit can be
mounted between boom centre section and the paralift.
Thereby, the space between centre section and paralift
can be increased by approx. 30 cm.
Mounting procedure for extension kit
1. Unfold the boom
2. Secure boom (centre section) by means of a crane.
3. Loosen the 4 bolts which join the paralift and the
centre section.
4. Fit the extension bracket A by means of the 4 bolts to
centre section and paralift.
T142-0028
T251-0021
