40
GB 08 04
Operation
4. Add the chemicals through the main tank hole.
5. When the spray liquid is well mixed, turn handle on
the Pressure Manifold towards Spraying position.
Keep P.T.O. engaged so the spray liquid is continu-
ously agitated until it has been sprayed on the crop.
2. F2. F
2. F2. F
2. F
illing billing b
illing billing b
illing b
y HARDI FILLER cy HARDI FILLER c
y HARDI FILLER cy HARDI FILLER c
y HARDI FILLER c
hemicalhemical
hemicalhemical
hemical
inductorinductor
inductorinductor
inductor

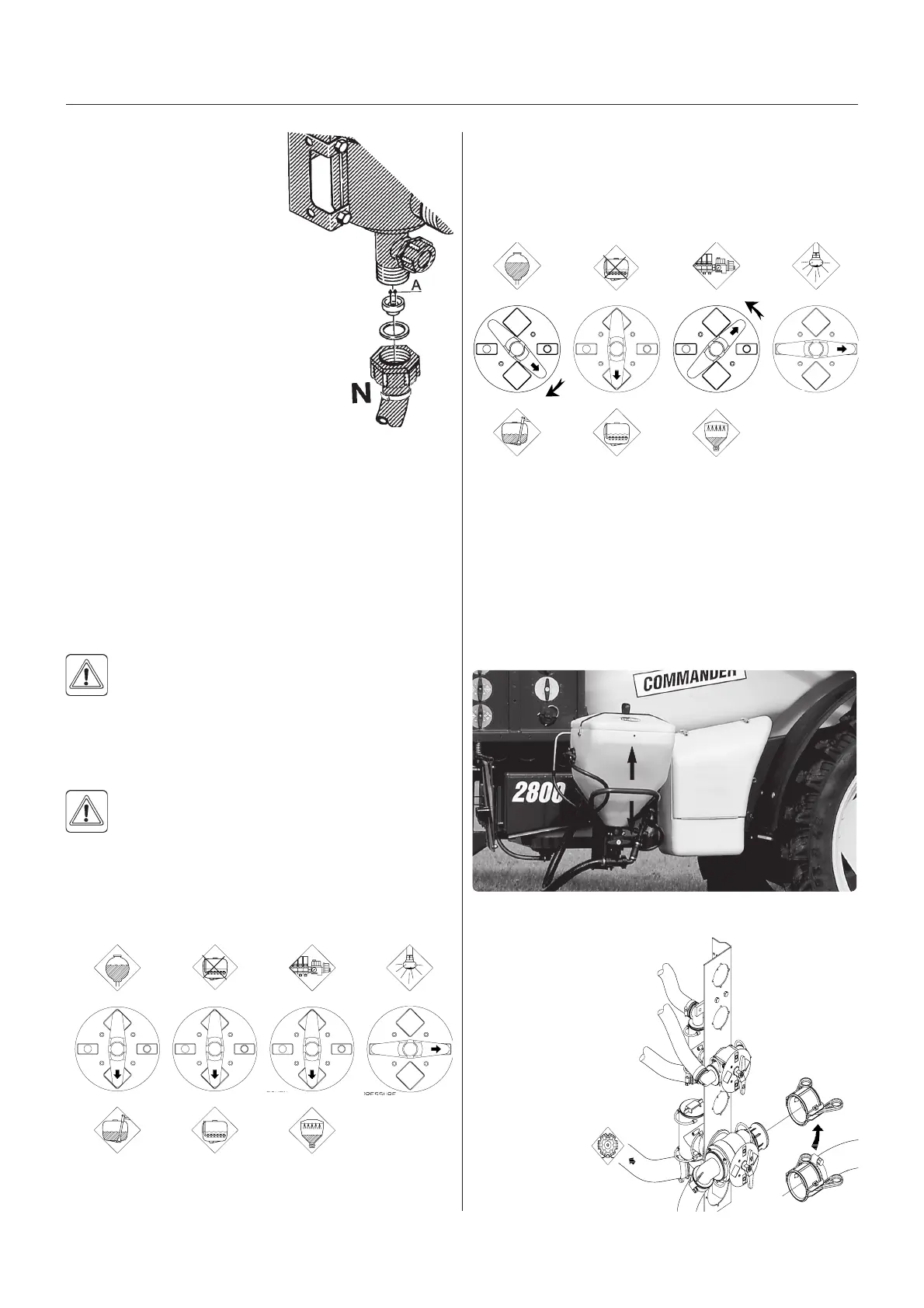

To get access to the HARDI FILLER, grab the handle
and drag the HARDI FILLER the whole way down. Due
to the spring loaded suspension, it will stay in this
position. After use, it is pushed the whole way up again.
Filling of Liquid
chemicals
1. Fill the main tank at
least
1
/
3
with
water (unless
something else
is stated on the
chemical
container
label). See
section Filling
of water.
2. Turn the handle
at the Suction Mani-
fold towards Main tank .
The hose N is demounted at the
self-cleaning filter, the restrictor
is put in the hose and the hose
is mounted again. If the re-
quired working pressure cannot
be obtained, the restrictor is too
large. Choose a smaller restrictor. Start
with a black one, then a white and finally a
red one.
When cleaning the filter remove hose N
and the hose at the safety valve, and
check there are no residue.
Standard filter size is 80 mesh. Sizes of
50 and 100 mesh are available and can
be changed by opening the filter top,
and replace the strainer.
Check the O-rings before reassembling the filter and
replace if damaged.
FF
FF
F
illing ofilling of
illing ofilling of
illing of
c c
c c
c
hemicalshemicals
hemicalshemicals
hemicals
Chemicals can be filled in the tank in two ways:
1. Through tank lid.
2. By means of HARDI FILLER chemical filling device.
WARNING! Always wear correct protective
clothing before handling chemicals!
1. F1. F
1. F1. F
1. F
illing thrilling thr
illing thrilling thr
illing thr
ough tank lidough tank lid
ough tank lidough tank lid
ough tank lid
The chemicals are filled through the tank lid - Note
instructions on the chemical container!
WARNING! Be careful not to slip or splash
chemicals when carrying chemicals up to the tank
lid!
1. Make sure the EVC is switched off.
2. Set the MANIFOLD valves to correct position. Black
valve Suction from main tank, green valve towards
Agitation
3. Engage the pump and set P.T.O. revolutions to 540
r/min or 1000 r/min (depending on pump model).
T020-0020
T042-0001
Black
Green
Green Green
Black
Green Green Green
T060-0119
