Hardi Commander Plus SPC Series User Manual

38
GB 08 04
Operation
FF
FF
F
illing ofilling of
illing ofilling of
illing of
c c
c c
c
lean wlean w
lean wlean w
lean w
aa
aa
a
ter tankter tank
ter tankter tank
ter tank

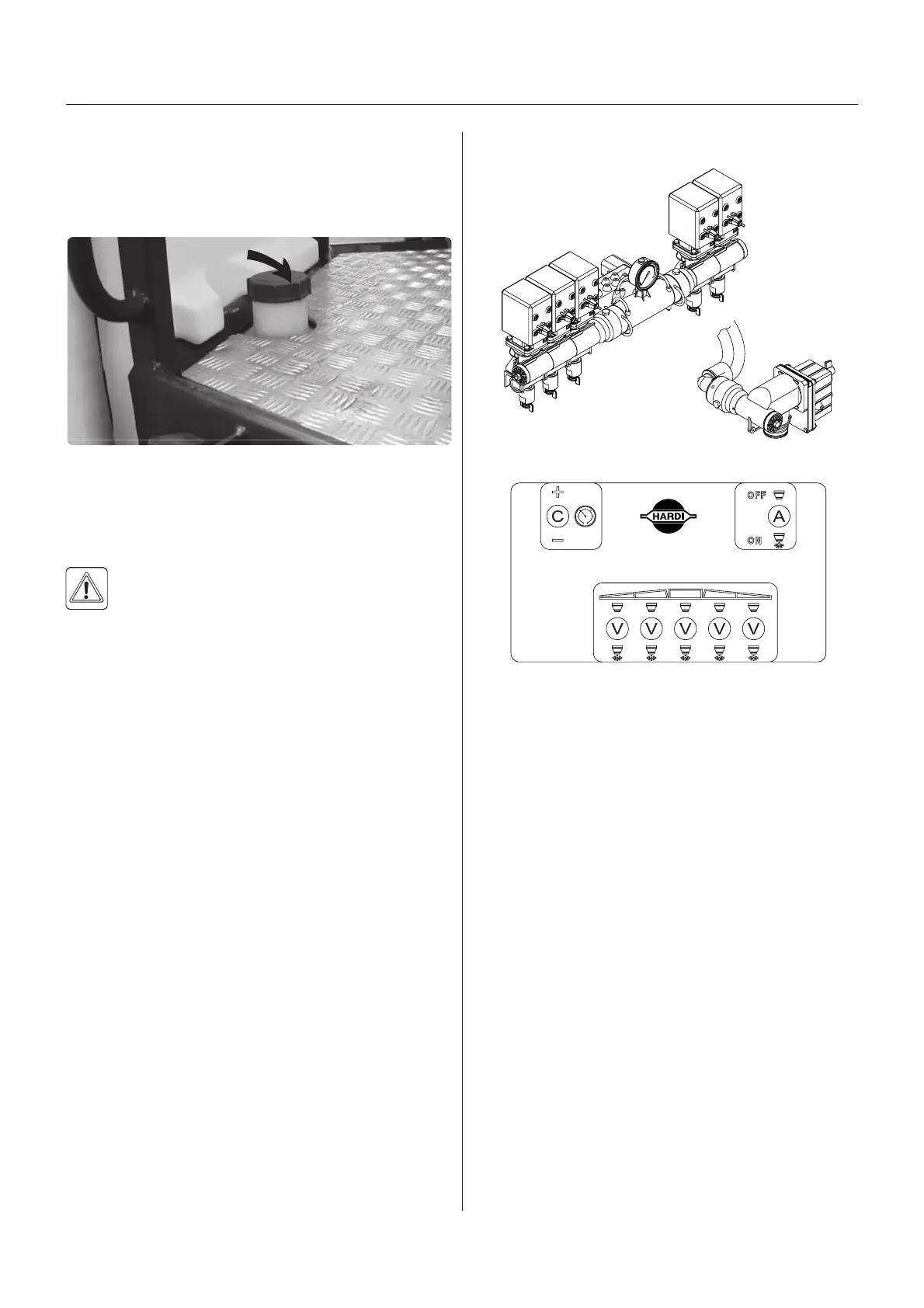

The clean water tank is integrated in the platform and
has a capacity of 30 l. Access to the tank lid is possible
from the platform. Only fill this tank with clean water
from the well.
The water from this tank is for hand washing, cleaning of
clogged nozzles etc. The tap is centrally situated in near
reach from the MANIFOLD valves and is opened/closed
by a handle.
WARNING! Although the clean water tank is only
filled with clean water, it must never be used for
drinking.
Adjustment ofAdjustment of
Adjustment ofAdjustment of
Adjustment of
EV EV
EV EV
EV
C operC oper
C operC oper
C oper
aa
aa
a
ting unitting unit
ting unitting unit
ting unit
Before spraying, the EVC operating unit is adjusted
using clean water (without chemicals).
1. Choose the correct nozzle for the spray job by turning
the TRIPLET nozzle bodies. Make sure that all noz-
zles are the same type and capacity. See the Spray
Technique book.
2. On-off switch A is activated against green.
3. All distribution valve switches V are activated against
green.
4. Pressure regulation switch C is activated until emer-
gency handle stops rotating (minimum pressure).
5. Put the tractor in neutral and adjust the P.T.O. and
thereby the number of revolutions of the pump corre-
sponding to the intended travelling speed. Remember
the number of revolutions on the P.T.O. must be kept
between 300-600 rpm (pump 540 r/min) or 650-1100
rpm (pump 1000 r/min).
6. Pressure regulation switch C is activated until the
required pressure is shown on the pressure gauge.
Adjustment ofAdjustment of
Adjustment ofAdjustment of
Adjustment of
pr pr
pr pr
pr
essuressur
essuressur
essur
e equalisae equalisa
e equalisae equalisa
e equalisa
tiontion
tiontion
tion
1. Close the first distribution valve switch V.
2. Turn the adjusting screw(s) until the pressure gauge
again shows the same pressure.
3. Adjust the other sections of the distribution valve in
the same way.
T020-0044
T060-0117
