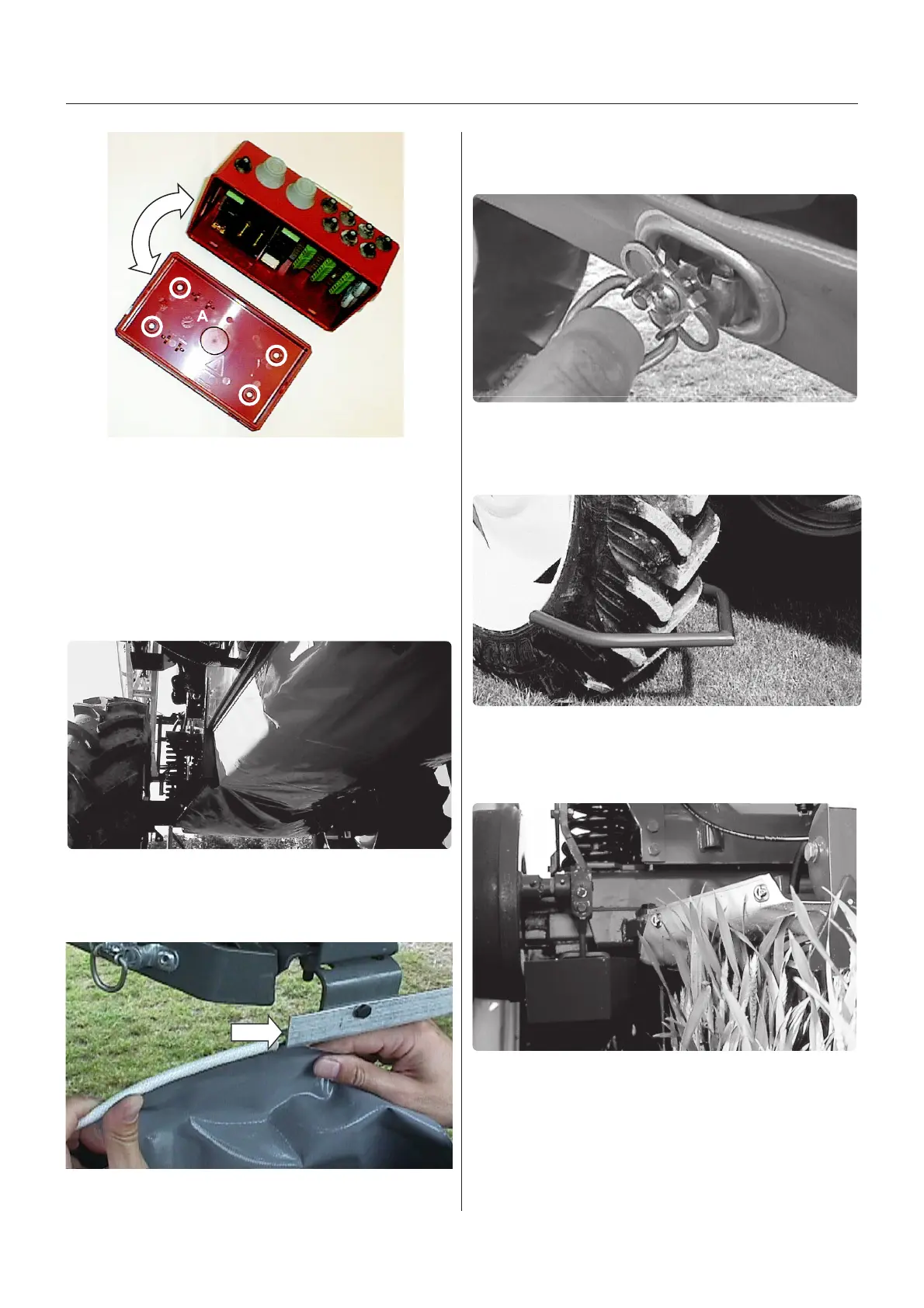

The kit consists of sheet, straw dividers and wheel brake
covers.
Sheet
The PVC sheet is fitted underneath the trailer and
covers the undercarriage of the chassis
The sheet is lead through guiding rails fastened on both
sides of the trailer.
T060-0113
T060-0123
T066-0073
Drag the split, twist
it 90
0
and drop the
split again to lock it
T066-0074
Each cutout in the shield is then fastened with a match-
ing locking device, which are mounted along the lower
part of the sprayer.
Strawdividers
A strawdivider can be fitted on each trailer wheel.
Wheel brake covers
A wheel brake cover A can be mounted in order to cover
the brake.
T060-0125
T060-0126
A
