86
GB 18 01 02 05
Technical specifications
ConCon
ConCon
Con
vv
vv
v
erer
erer
er
sion fsion f
sion fsion f
sion f
actoractor
actoractor
actor
ss
ss
s
, SI to Imperial units, SI to Imperial units
, SI to Imperial units, SI to Imperial units
, SI to Imperial units
All units used in this manual are SI units. In some
occasions Imperial units are used. Use following factors
to convert SI units to Imperial units:
SI unit Imperial Factor
unit
Weight kg lb. x 2.205
Surface area ha acres x 2.471
Length cm in x 0.394
m ft x 3.281
m yd x 1.094
km mile x 0.621
Velocity km/h mile/h x 0.621
km/h m/s x 0.277
Quantities/area l/ha gal (Imp.) x 0.089
/acre
Volume ml fl. oz (Imp.) x 0.0352
l Imp. pt. x 0.568
l gal (Imp.) x 0.22
Pressure bar lb./in
2
x 14.504
(p.s.i.)
Temperature °C °F (°C x 1.8) +
32
Power kW hp x 1.341
Torque Nm lbft x 0.74
FF
FF
F
ilterilter
ilterilter
ilter
s and nozzless and nozzles
s and nozzless and nozzles
s and nozzles
Filter gauze width
30 mesh: 0.58 mm 50 mesh: 0.30 mm
80 mesh: 0.18 mm 100 mesh: 0.15 mm
TT
TT
T
emperemper
emperemper
emper
aa
aa
a
turtur
turtur
tur
e and pre and pr
e and pre and pr
e and pr
essuressur
essuressur
essur
e re r
e re r
e r
angang
angang
ang
eses
eses
es
Operating temperature range:
2° to 40° C. (36°F to 104°F)
Operating pressure for safety valve:
15 bar (220 psi)
Max. pressure on the pressure manifold:
20 bar (290 psi)
Max. pressure on the suction manifold:
7 bar (100 psi)
BrBr
BrBr
Br
akak
akak
ak
eses
eses
es
Max. wear rates on brake components, mm (in):
2200/2800 3200/4200
Max. drum diameter A 302 (11.8897) 402 (15.8388)
Min. lining thickness B 2.0 (0.07874) 4.0 (0.15748)
Hydraulic brakes
Max. hydraulic pressure: 150 bar (2176 p.s.i.)
Air brakes, single line:
Air pressure, relieved brakes: 5.3 - 5.6 bar
Air pressure drop to activate: 0.8 - 1.3 bar
Air brakes, dual line
Load apportioning valve pressure settings:
Relieved: 0 bar
Empty: 1.6 bar (23.2 p.s.i.)
Half: 3.4 bar (49.3 p.s.i.)
Full: Air tank pressure
MaMa
MaMa
Ma
terials and rterials and r
terials and rterials and r
terials and r
ecec
ecec
ec
yy
yy
y
cc
cc
c
lingling
lingling
ling
Tank: HDPE
Hoses: PVC
Valves: mainly glass-filled PA.
Fittings: PA
Disposal of the sprayer
When the equipment has completed its working life, it
must be thoroughly cleaned. The tank, hose and syn-
thetic fittings can be incinerated at an authorised dis-
posal plant. The metallic parts can be scrapped. Always
follow local legislation regarding disposal.
1
2
3
4
5
6
7

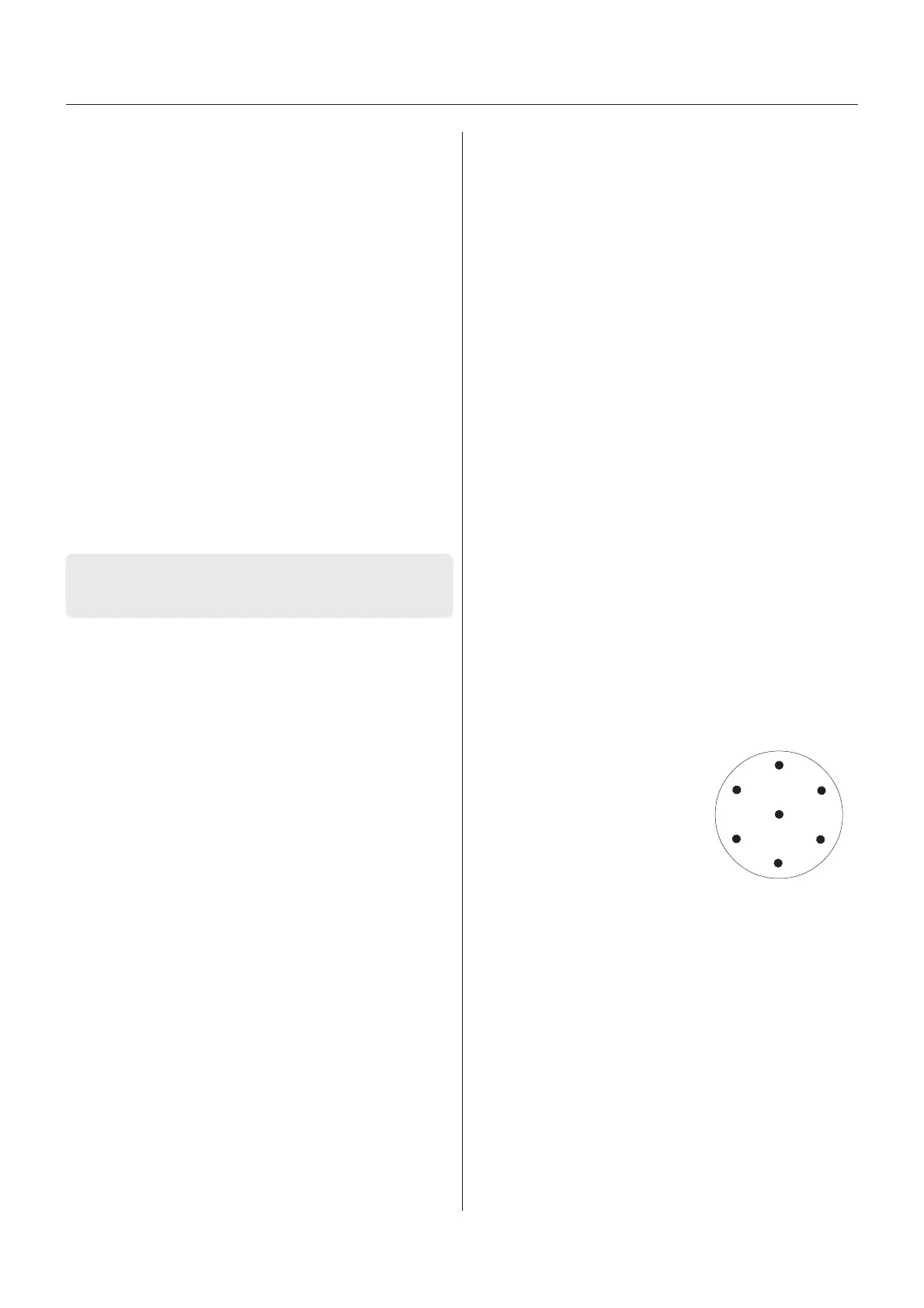

Electrical connectionsElectrical connections
Electrical connectionsElectrical connections
Electrical connections
Rear lights
Position Wire colour
1. LH direction indicator Yellow
2. Free Blue
3. Frame White
4. RH direction indicator Green
5. RH rear position lamp Brown
6. Stop lamps Red
7. LH rear position lamp Black
The wiring is in accordance with ISO 1724.
