Hatz 2G40 User Manual

2G40, 2G40 H Engine overview
HATZ
25Operator’s Manual
5 Engine overview

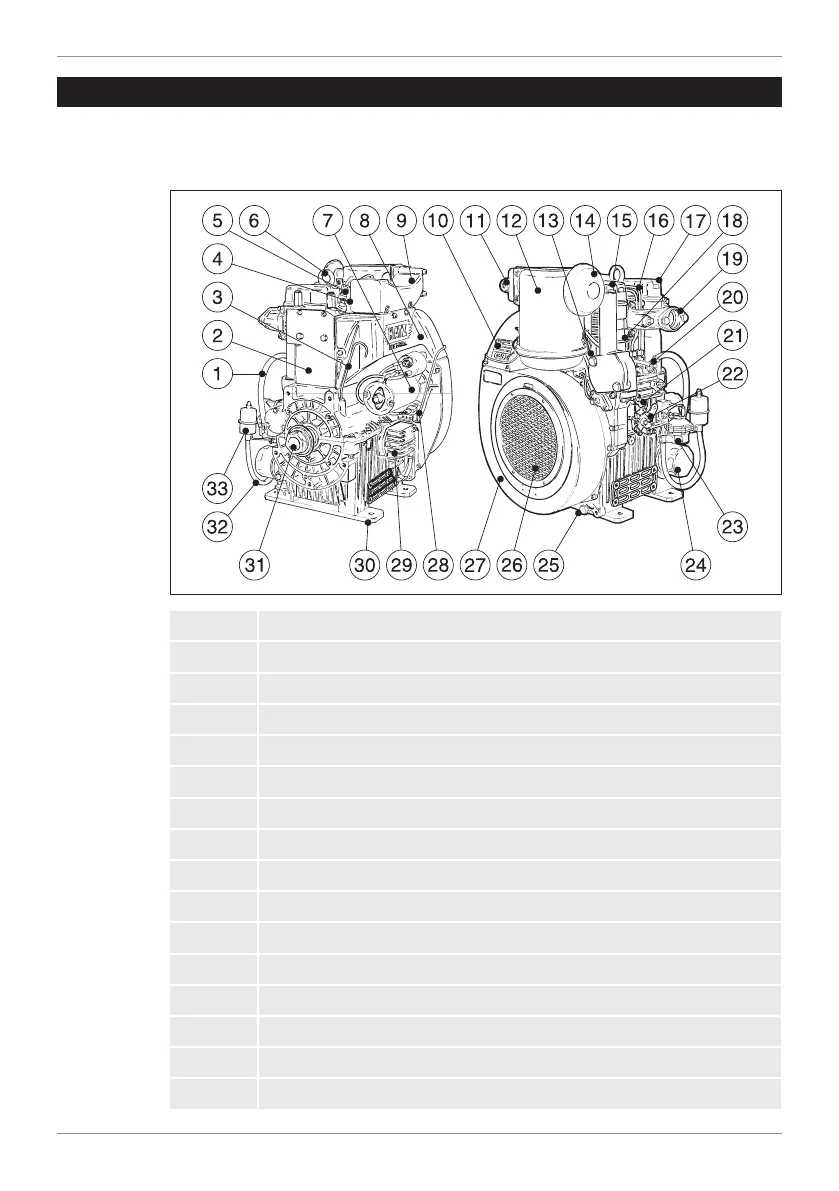

5.1 Designation of components
Overview
1 Fuel line (feed pump - injection pump)
2 Air guide panel
3 Dipstick
4 Fuel return line
5 Injector
6 Lifting eye
7 Starter
8 Air guide
9 Air intake pipe
10 Type plate
11 Glow plug (option)
12 Oil bath air filter
13 Oil pressure switch
14 Rain cap
15 Oil filler plug
16 Fuel pressure tube

Hatz 2G40 Specifications

General

Displacement	462 cm³
Cooling System	Air-cooled
Compression Ratio	20.5:1
Fuel Type	Diesel
Fuel System	Direct injection
Starting System	Electric starter
Engine Type	1-cylinder 4-stroke diesel engine
Lubrication System	Forced lubrication
