Hatz 2G40 User Manual

2G40, 2G40 H Operation and use
HATZ
41Operator’s Manual

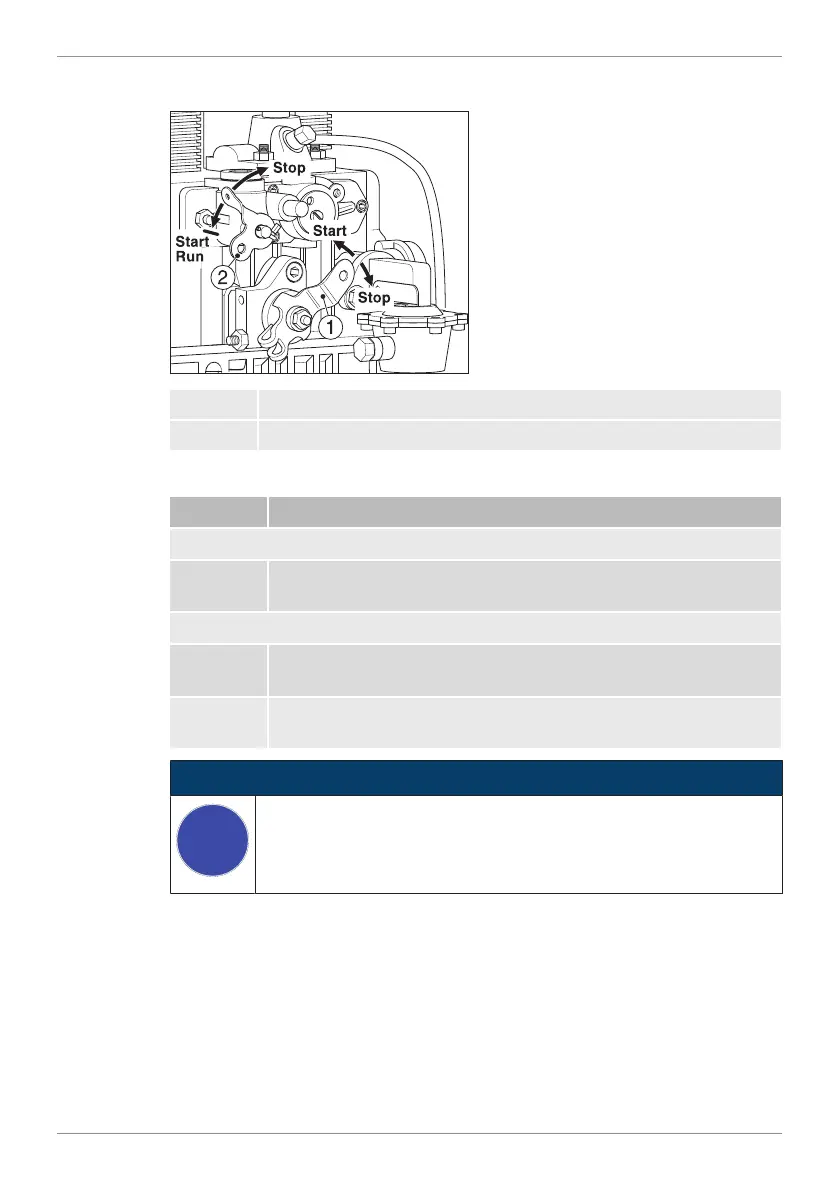

Overview
1 Speed control lever
2 Stop lever
Procedure
Step Activity
Speed control lever
1 Push the speed control lever (1) all the way to the "STOP" po-
sition. The engine switches off.
Stop lever
1 Actuate the stop lever (2) in the "STOP" direction and hold until
the engine has stopped.
2 Release the stop lever (2). The stop lever is placed automati-
cally in the "START" position by a spring.
NOTICE
i
Engines with a stop magnet can not be switched off by actuating
the stop lever, rather only with the starting key (see chapter
7.5.2 Switching off the engine (electrical), page 42).

Hatz 2G40 Specifications

General

Displacement	462 cm³
Cooling System	Air-cooled
Compression Ratio	20.5:1
Fuel Type	Diesel
Fuel System	Direct injection
Starting System	Electric starter
Engine Type	1-cylinder 4-stroke diesel engine
Lubrication System	Forced lubrication
