1.4.3 iDS-7700NXI-I4/(16P)/16S(B) Series

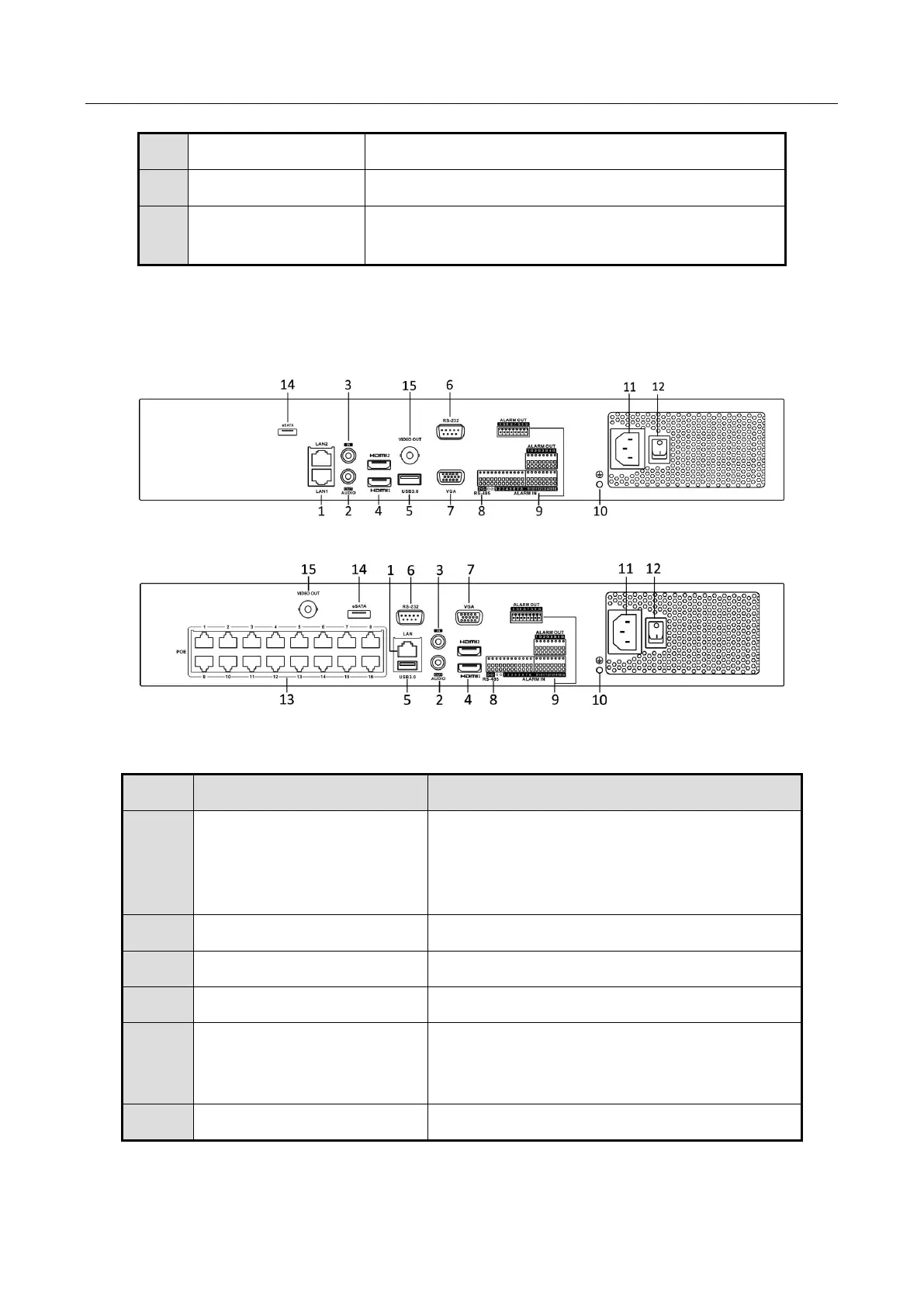

Figure 1-11 iDS-7700NXI-I4/16S(B) Series Rear Panel
Figure 1-12 iDS-7700NXI-I4/16P/16S(B) Series Rear Panel
Table 1-11 Panel Description
10
Power Supply
100 to 240 VAC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GROUND
Ground (needs to be connected when NVR starts
up).
No.
Name
Description
1
LAN Interface
1 network interface provided by
iDS-7700NXI-I4/16P/16S(B) series, and 2
network interfaces by iDS-7700NXI-I4/16S(B)
series.
2
AUDIO OUT
RCA connector for audio output.
3
LINE IN
RCA connector for audio input.
4
HDMI
HDMI video output connector.
5
USB 3.0 Interface
Universal Serial Bus (USB) interface for
additional devices such as USB mouse and USB
Hard Disk Drive (HDD).
6
RS-232 Interface
Connector for RS-232 devices.
