Fig. 3.4 Camera input adjustment
Each menu contains different kinds of items. There is a small rectangular frame named
“Active Frame” which is pointing to the selected item. This “Active Frame” can be moved by
direction keys ([↑] [↓][←][→]). There are several kinds of menu items as follows:
1. Check Box: Provides two options, “” means enable and “×” means disable. You can
use [ENTER] or [EDIT] key to switch over.
2. List Box: Provide more than 2 options. Only one of them can be selected. After
pressing [EDIT] you can use [↑] and [↓] to select one option. For example, on the right
side of “Select Camera”, there is a list box for you to select one camera.
3. Edit Box: This is for you to input characters. Press [EDIT] key to enter the edit status,
you can input text there:
a) Press [A] key to select number, upper case, lower case or symbols;
b) Use [→] and [←] keys to move cursor;
c) Use [EDIT] key to delete the character in front of cursor;
d) Press [ENTER] to save & [ESC] to exit without saving.
4. Button: Trigger a special function or enter the next sub-menu. For example, press
“Policy” button to enter the sub-menu. Press [Confirm] to save parameters and return to
main menu. Press [Cancel] button to cancel and return to main menu. The button in
grey means it can be operated only after being enabled.
How to exit menu
Press [PREV] key to exit menu and return to preview mode. Also you can press [ESC] key to
exit sub-menu as well as main menu.
3.4 Input text

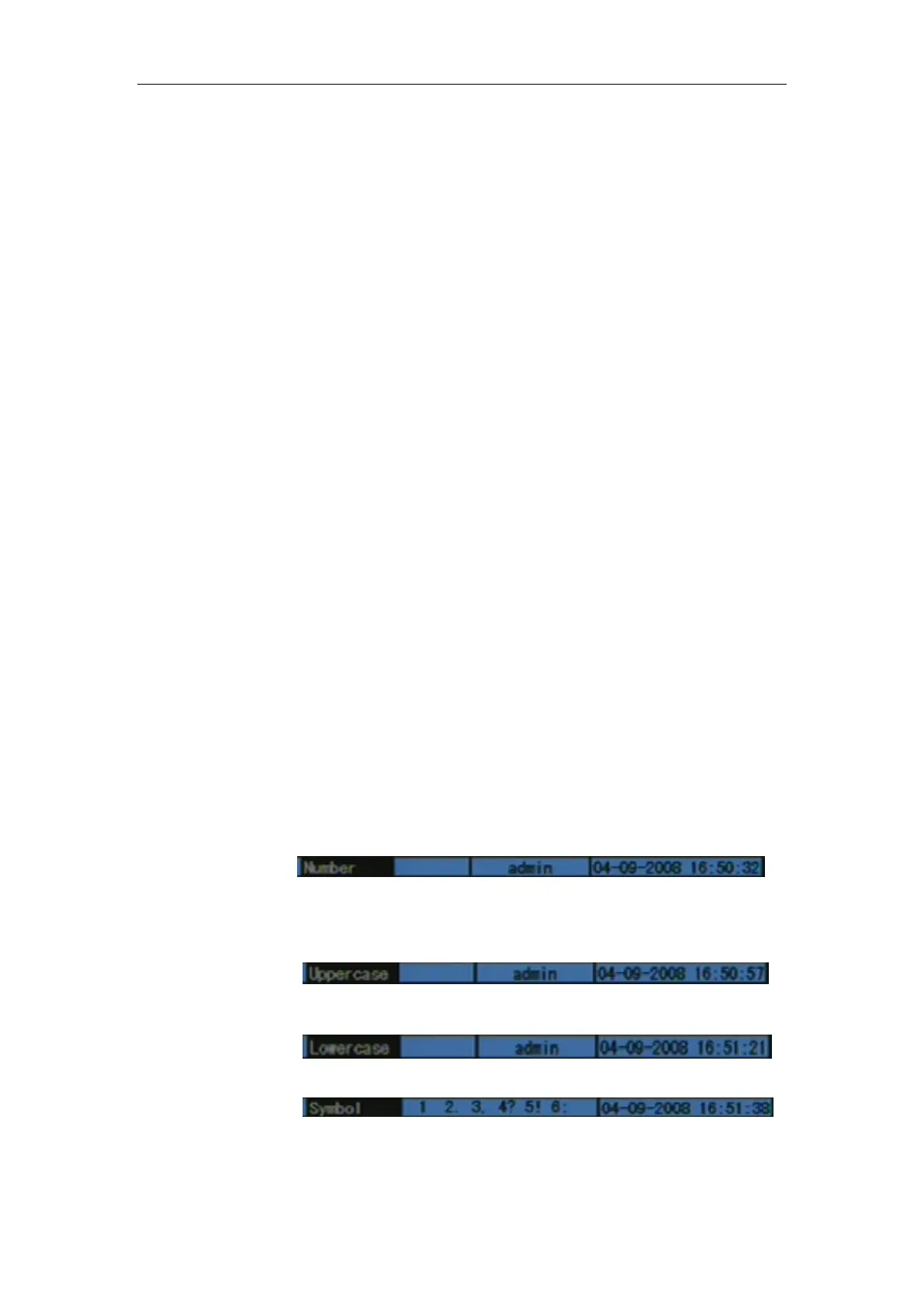

In the menu interface, if in edit status (for example, in the “camera name” edit box), at the
bottom of screen, the input status is appeared as follow:
Here it means you can press numeric keys to input digital number.
Press [A] key to change input ways. You can select “number”, “Uppercase”, “Lowercase” or
“Symbol”.
Uppercase
Lowercase
Symbol
There are 24 symbols in all. They are divided into 4 pages, and you can press [SHIFT] and then
use [0] key to turn over pages.
To Next Page
