DS-7108HI-S series Net DVR User Manual
33
5.4 Video Output Standard and VGA Setup
Video output standard
There is one VOUT BNC connector at the rear panel of DVR. It is used to connect with
analog monitor and can support PAL or NTSC video output. You can modify video output
standard to match monitor video input.
In “Display” menu: There is a list box named “Video Standard”, you can firstly press “EDIT”
or “Enter” key and then use [] [] key to select PAL or NTSC video output.
VGA setup
There is one VGA interface at the rear panel of DVR. You can connect it with VGA display.
You can define VGA resolution; refresh frequency in “Display” menu.
There are following options: 1280*1024/60Hz, 1024*768/60Hz, 800*600/60Hz. You can use
[] [] key to select.
Press “Confirm” button to save or “Cancel” to invalidate.
5.5 Camera name and OSD Setup
Camera Name
In “Camera” menu, you can define name for each camera. Please notice that camera’s name
can’t be the same. Shown as Fig.5.10 below

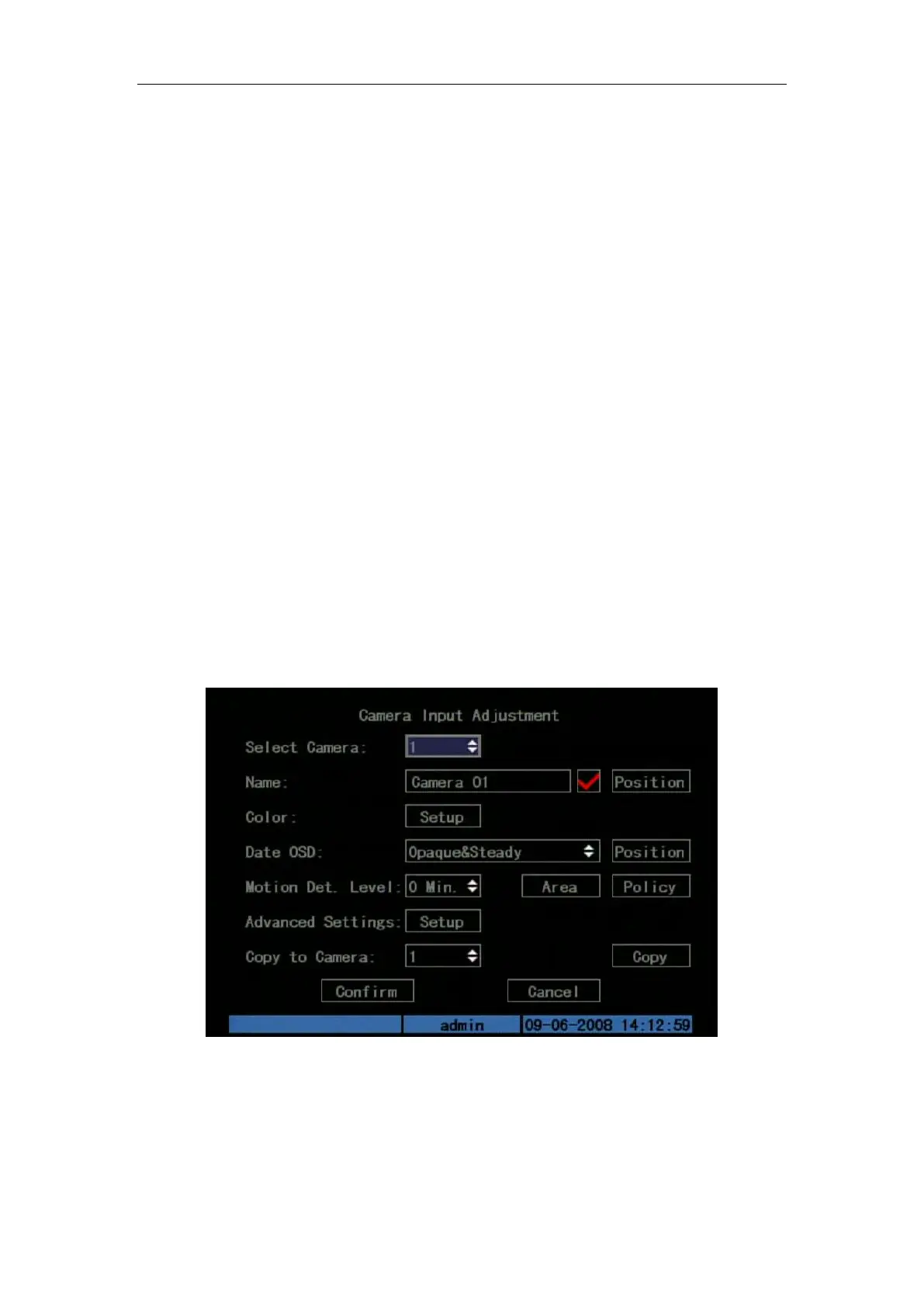

Fig. 5.10 Input camera number
The steps of camera name setup:
Step 1: Select one camera.
Step 2: Move “Active Frame” to camera name edit box, press[EDIT]key to enter edit status,
you can input digital number, uppercase and lowercase characters (refer to Chapter 3.4). The
camera name can support 32 characters.
