DS-7108HI-S series Net DVR User Manual
70
Appendix C DVR Connect Cable
Definition
1 UTP Network Connect Cable Made Method
Material and tool
One twist cable (8 pin, the length can be defined as to the actual demand, but must be within
100m), 2 standard RJ45 head, one tool for RJ45.
Suggestion: have a network cable test tool to test each cable made.
Pin definition
To make the network cable according to the actual situation, there are two options:
(1) Use the following method to make the network cable when DVR is connected with
network hub or switch.

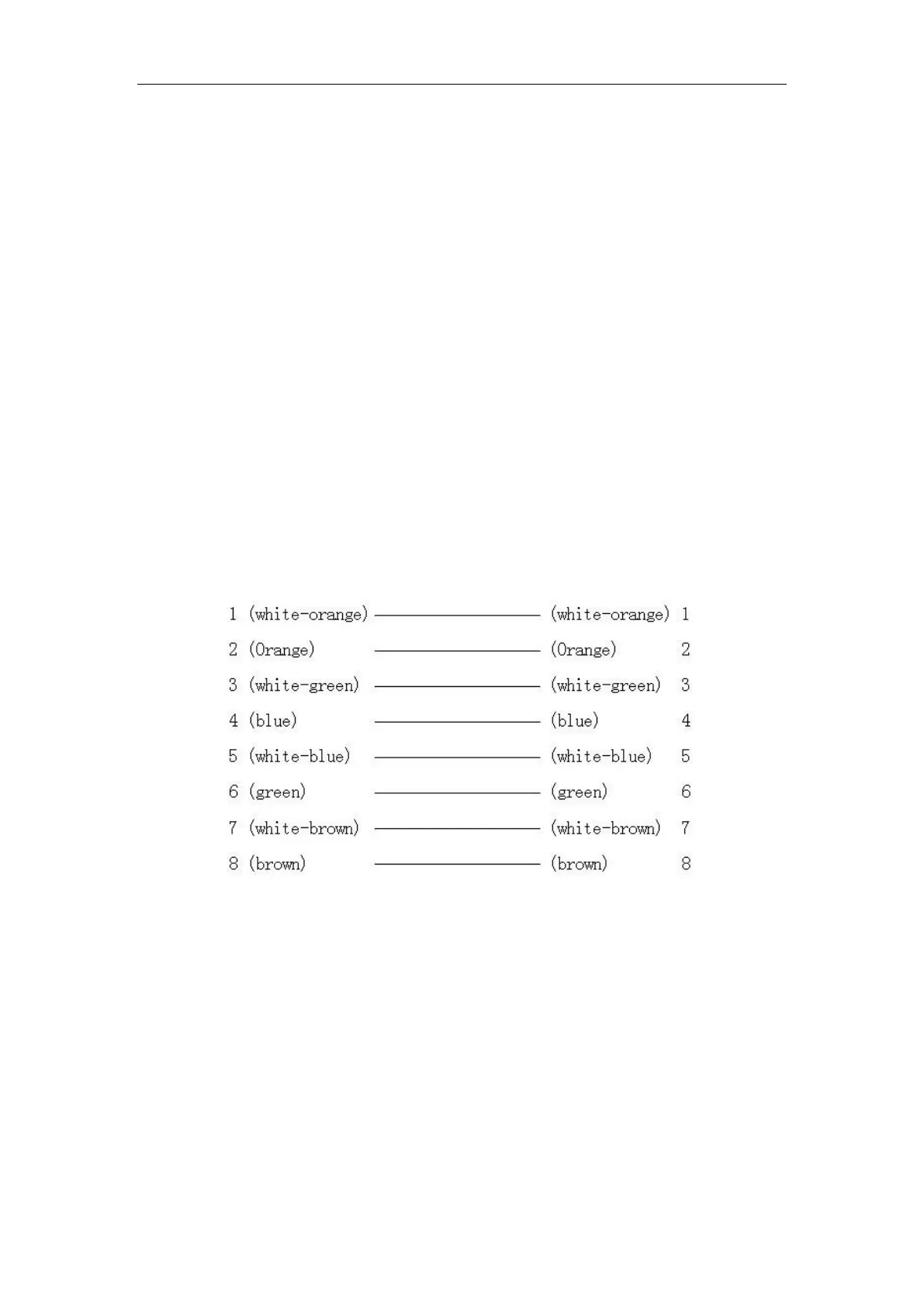

The corresponding relationship of the direct cable
(2) Use the following method to make the cross network cable when DVR is directly
connected with client-end PC.
