10
through tab pages. It will also bring up the Channel & OSD Position settings.
• 4GHI/ESC: (1) Enter numeral “4”; (2) Enter letters “GHI”
(3) Exit and back to the previous menu
• 5JKL/EDIT: (1) Enter numeral “5”; (2) Enter letters “JKL”; (3) Delete characters before
cursor;
(4)Select the checkbox and ON/OFF switch; (5) Start/stop record clipping in playback
• 6MNO/PLAY: (1) Enter numeral “6”; (2) Enter letters “MNO”; (3) Playback, for direct
access to playback interface
• 7PQRS/REC: (1) Enter numeral “7”; (2) Enter letters “PQRS”; (3) Manual record, for
direct access to manual record interface; manually enable/disable record
• 8TUV/PTZ: (1) Enter numeral “8”; (2) Enter letters “TUV”; (3) Access PTZ control
interface
• 9WXYZ/PREV: (1) Enter numeral “9”; (2) Enter letters “WXYZ”; (3) Multi-camera
display in live view.
• 0/A: (1) Enter numeral “0”; (2) switch between input methods (upper and lowercase
alphabet, symbols and numeric input)
4. SHIFT: Switch of compound keys between the numeric/letter input and functional control.
5. Control Buttons:
• Directional buttons: In menu mode, the direction buttons are used to navigate between
different fields and items and select setting parameters. In playback mode, the Up and Down
buttons are used to speed up and slow down record play, and the Left and Right buttons are
used to select the recording 30s forwards or backward
s. In live view mode, these buttons can be
used to cycle through channels.
• Enter: The Enter button is used to confirm selection in menu mode; or used to select
checkbox fields and ON/OFF switch. In playback mode, it can be used to play or pause the
video. In single-frame play mode, pressing the Enter button will advance the video by a
single frame. And in auto sequence view mode, the buttons can be used to pause / resume
auto sequence.
6. USB Interface: Connects USB mouse or USE flash memory devices.

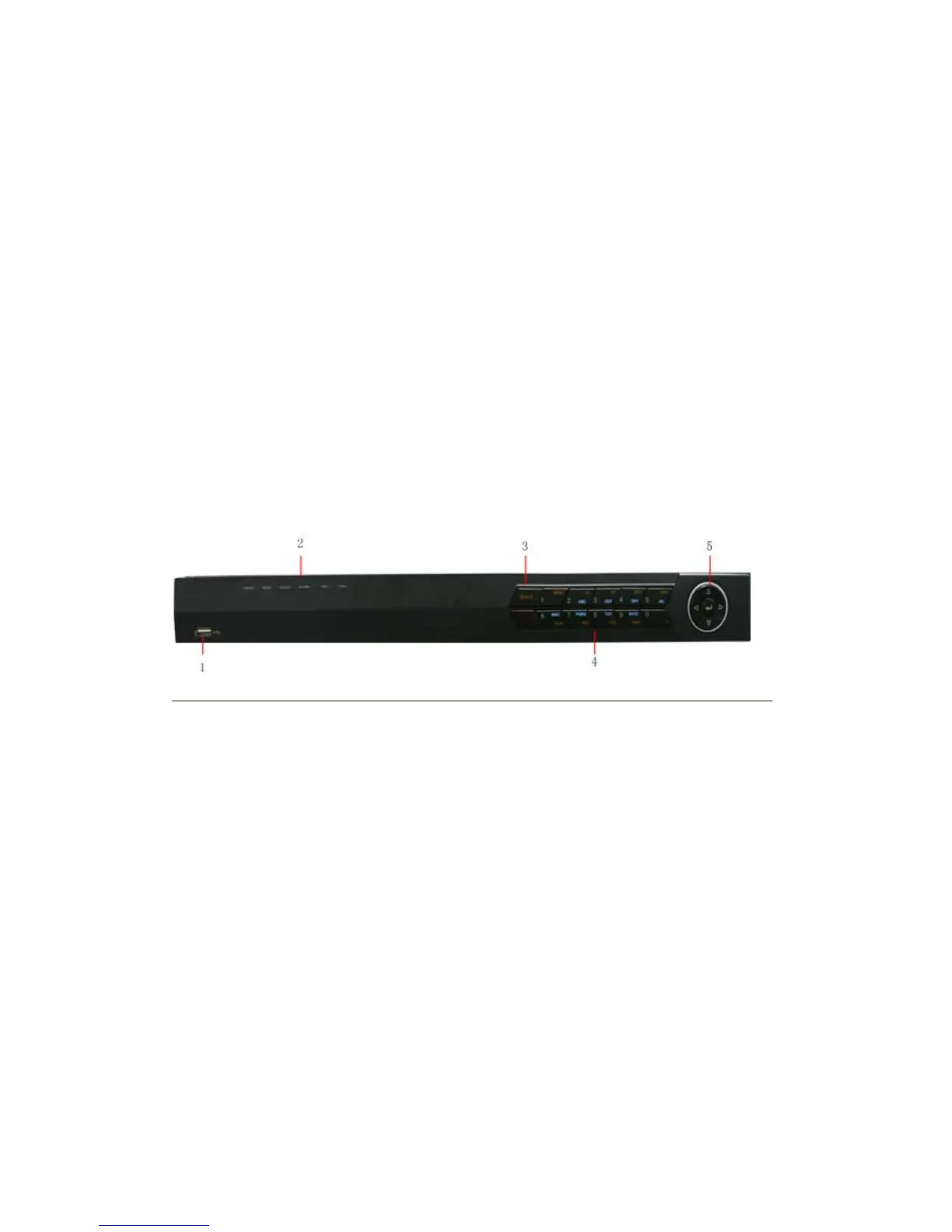

Figure5. DS-7608NI-S DVR Front Panel
The controls on the front panel include:
1. USB Interface: Connect USB mouse or USE flash memory devices.
2. Status Indicators:
• POWER: the POWER indicator turns green when NVR is powered up.
• READY: the indicator lights in green when the device is running normally.
• STATUS: the indicator: 1. Lights in green when the IR remote control is enabled; 2. Lights in
red when the compound key (SHIFT) is used.
• ALARM: the indicator lights in red when there is sensor alarm occurring.
• HDD: the indicator flickers in red when HDD is reading/writing.
• Tx/Rx: TX/RX indicator flickers green when network connection is functioning normally.
3. SHIFT: Switch of compound keys between the numeric/letter input and functional control.
4. Compound Buttons:
• 1 MENU: (1) Enter numeral “1”; (2) Access the main menu interface.
• 2ABC/F1: (1) Enter numeral “2”; (2) Enter letters “ABC”; (3) The F1 button when used in a
list field will select all items on the list. In PTZ Control mode, it will turn on/off PTZ light.
• 3DEF/F2: (1) Enter numeral “3”; (2) Enter letters “DEF”; (3) The F2 button is used to cycle
through tab pages. It will also bring up the Channel & OSD Position settings.
• 4GHI/ESC: (1) Enter numeral “4”; (2) Enter letters “GHI”; (3) Exit and back to the
previous menu.
• 5JKL/EDIT: (1) Enter numeral “5”; (2) Enter letters “JKL”; (3) Delete characters before
cursor; (4)Select the checkbox and ON/OFF switch; (5) Start/stop record clipping in
playback.
• 6MNO/PLAY: (1) Enter numeral “6”; (2) Enter letters “MNO”; (3) Playback, for direct
access to playback interface.
