80

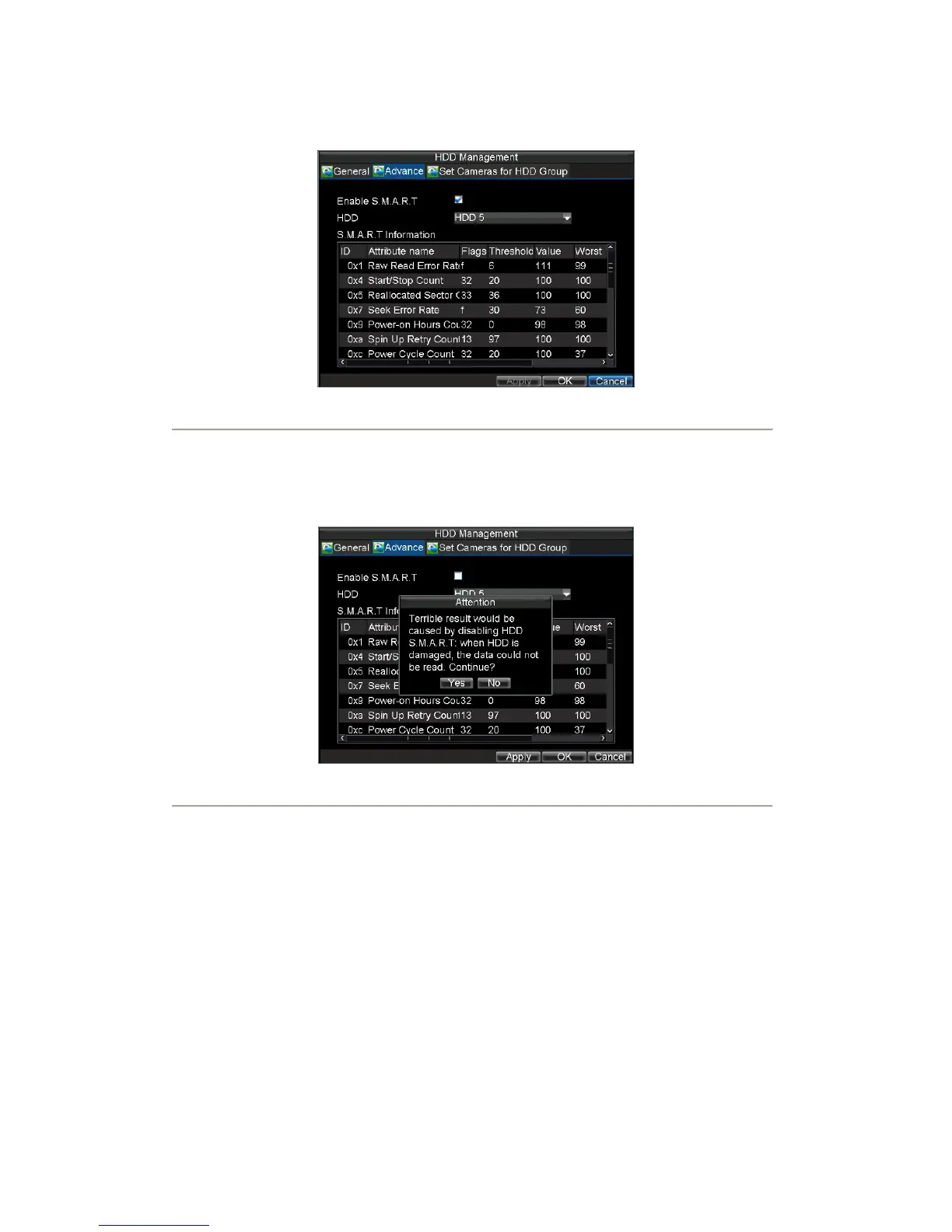

1. Enter the HDD Management menu by clicking Menu >HDD, select Advance tab, shown in
Figure 7.
Figure7. S.M.A.R.T Function
2. The checkbox of Enable S.M.A.R.T is already checked in default.
3. Select a HDD you want to view S.M.A.R.T information, the corresponding information will be
displayed below, shown in above figure.
4. If click to disable S.M.A.R.T function, the warning information appears, shown in Figure 9
Figure8. Warning Information Pop up
Configure HDD Alarms
HDD alarms can be set to trigger when an HDD is uninitialized or in an abnormal state.
To set HDD alarms:
1. Click Menu > Settings > Exception to enter Exception menu, shown in Figure9.
