HIKVISION DS-7616 User Manual

13
shown in Figure 7.

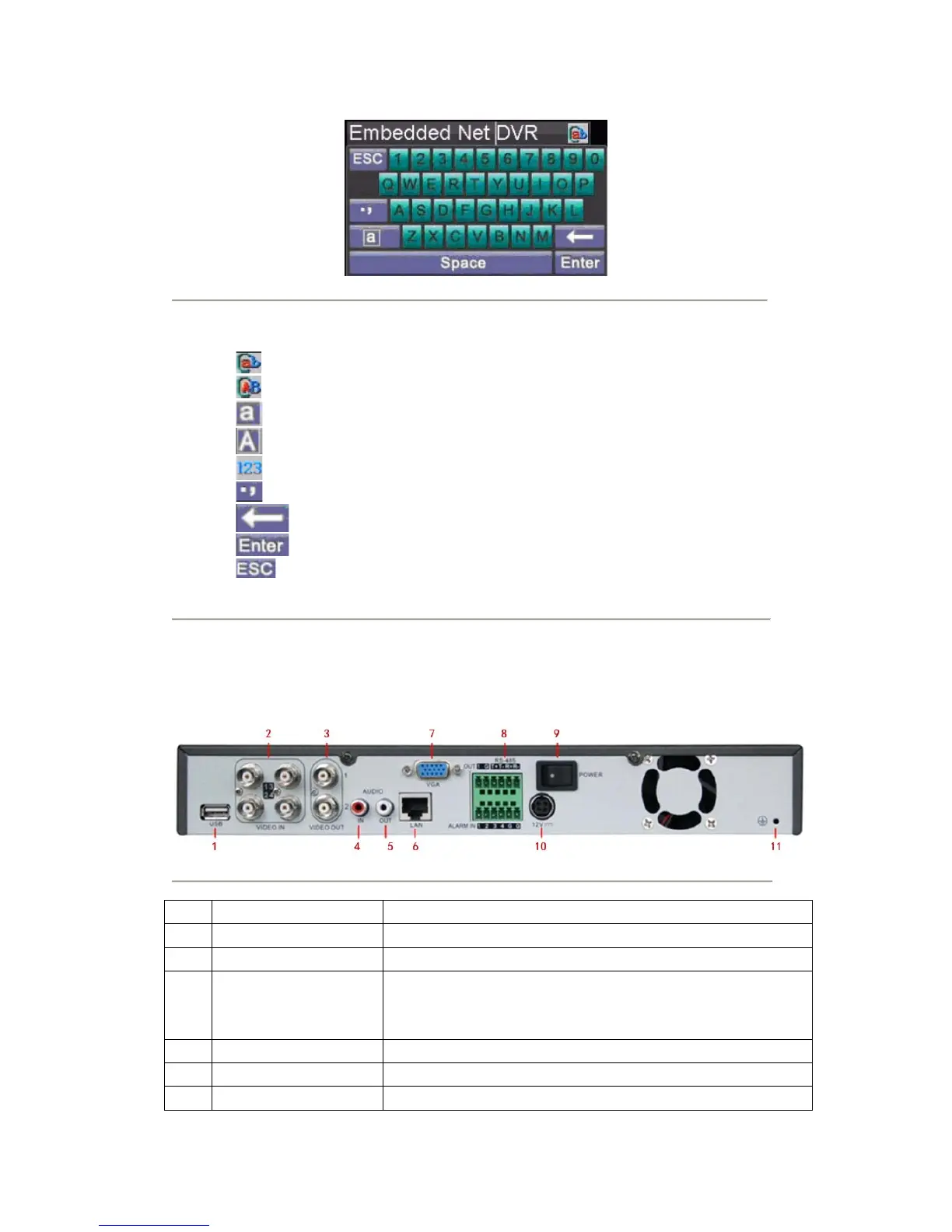

Figure7. Soft Keypad
The buttons on the soft keyboard represents:
Lowercase: Designates lowercase input is being used.
Uppercase: Designates uppercase input is being used.
Switch to Lowercase: Switch to lowercase input.
Switch to Uppercase: Switch to uppercase input.
Number: Designates number input is being used.
Symbols: Switch to symbols input.
Backspace: Delete the character in front of the cursor.
Enter: Confirm selection.
ESC: Exit Soft Keyboard.
Figure8. Soft Keyboard Buttons
Rear Panel
Figure9. Rear Panel of DS-7604HI-S
No.
Item
Description
1
USB Interface
Connector for USB devices
2
VIDEO IN
BNC connectors for video input
3
VIDEO OUT
BNC connector for video output. If VGA output has been connected, then the
VIDEO OUT port provides no output.
VIDEO OUT1 is main video out, and VIDEO OUT2 is spot video out.
4
AUDIO IN
RCA connectors for analog audio input
5
AUDIO OUT
RCA connector for audio output
6
LAN
Connector for LAN (Local Area Network)
