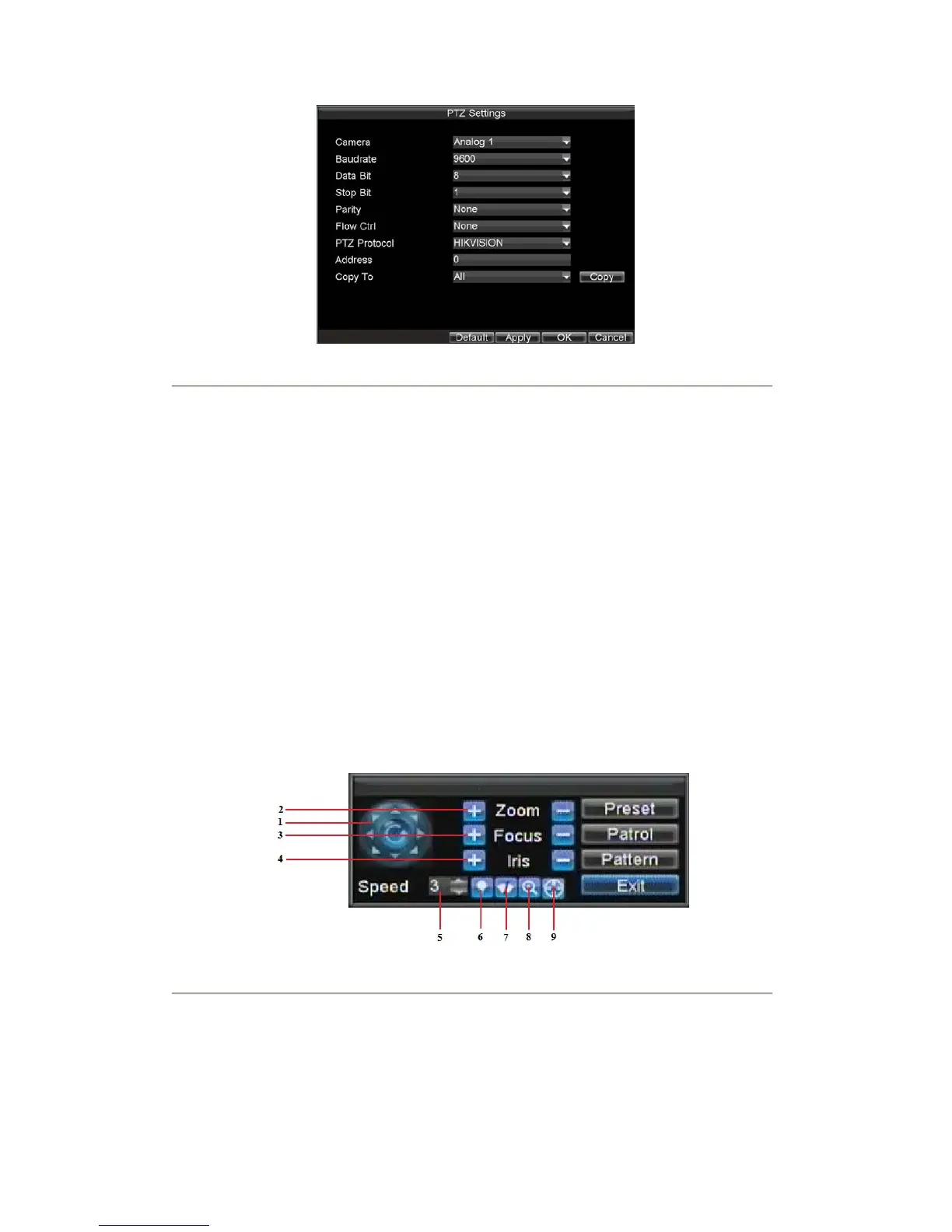

Figure2. PTZ Settings Menu
2. Select channel where PTZ camera is installed next to Camera label.
3. Configure the settings of baud rate, date bit, stop bit, parity, flow control, PTZ protocol and
address.
4. Click OK to save settings and exit the PTZ Settings menu.
Note: All setting parameters (baud rate, date bit, stop bit, parity, flow control, PTZ protocol
and address) must be consistent with the PTZ camera connected.
Note: DS-7604NI-S/M, DS-7604NI-S and DS-7608NI-S provide no analog camera connection;
please select IP camera for configuration.
Setting PTZ Presets, Patrols & Patterns
The DVR allows you to program presets, patrols and patterns for a connected PTZ camera.
Understanding PTZ Controls
The PTZ control panel provides a series of PTZ controls, shown in Figure 3.
Figure3. PTZ Control Interface
The control buttons on the PTZ panel include:
1. Directional Pad/Auto-scan Buttons: Control the movements and directions of the PTZ. The
center button is also used to start auto-scan of PTZ.
2. Zoom: Used to zoom in and out with the PTZ.
3. Focus: Used to adjust the focus of the PTZ.
4. Iris: Used to open up or close the iris of the PTZ.
5. Speed: Adjusts the movement speed of the PTZ.
