85
• Transparent Channel: Connect a serial device directly to the DVR. The serial device will be
controlled remotely by the PC through the network and the protocol of the serial device.
Note: DS-7604 Series DVR provides no RS-232 port, thus it is unallowable to set parameters control or create
transparent channel.
Managing User Accounts
By default settings, your DVR is configured with the user name of admin and the password of 12345. The
Administrator has the authority to add, delete or configure the user parameters.
Add a New User
To add a new user:

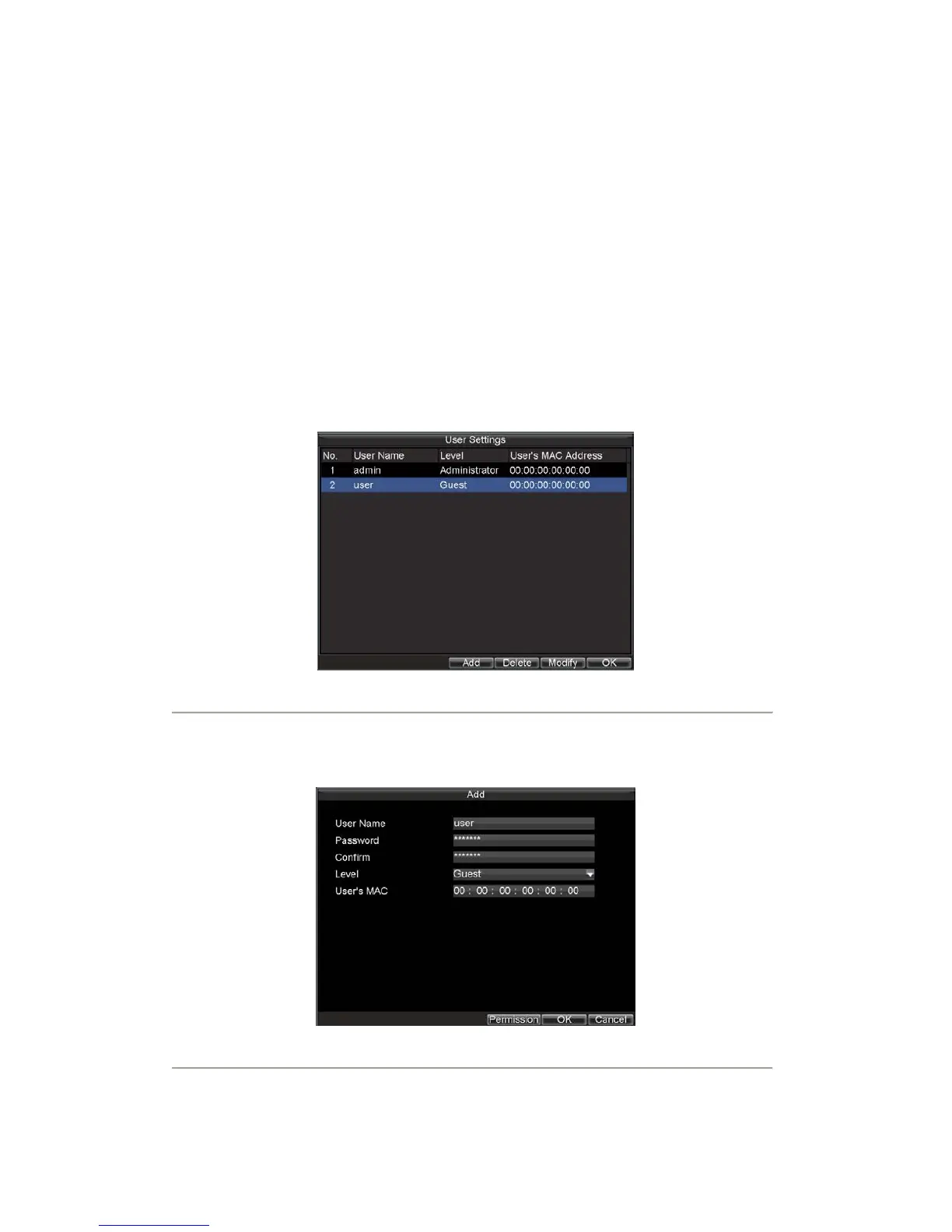

Click Menu > Setting > User to enter the User Settings menu, shown in Figure 4.
Figure4. User Settings Menu
1. Select the Add button to enter the Add User menu, shown in Figure 5.
Note: Up to 31 users can be added.
Figure5. Add User Menu
2. Enter information for new user, including User Name, Password, Level and User’s MAC.
3. The Level is the user level and is separated into two ways.
To Next Page
