26

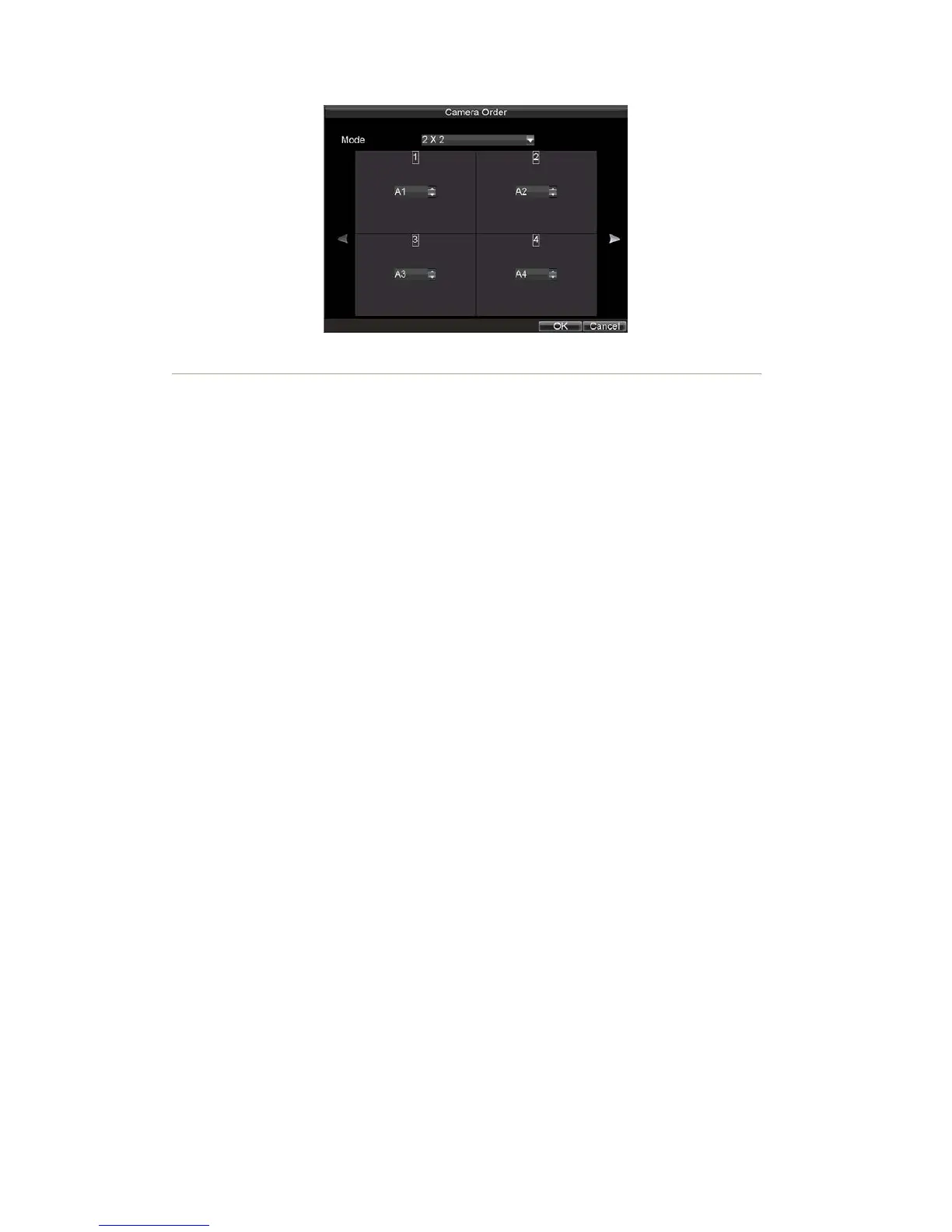

Figure5. Camera Order Settings
Operate the following steps to set camera order:
1. Enter the Display Settings menu (Menu > Settings > Display) and click Set in the Camera Order
item.
2. Select the video output port and the display mode (1*1, 2*2 and 3*3 modes selectable).
Note: DS-7604NI-S/M and DS-7608NI-S model only provide the Main Vout.
3. Use the direction buttons on front panel to move to the display pane for setting press the Enter
button to confirm the selection.
4. Use the direction buttons on front panel to select the camera you want to be view in the display
pane. The option ‘*’ indicates no display of camera.
5. Press Enter button to confirm the selection.
Note: DS-7604NI-S/M, DS-7604NI-S and DS-7608NI-S models provide no analog camera
connection, and it only allows user to set the order for the added IP cameras.
