Network Video Recorder User Manual
107
Step 2 Select Sub-periods from the drop-down list in the upper-left corner of the page to enter the
Sub-periods Playback interface.
Step 3 Select the stream to Main Stream or Sub Stream.
Step 4 Select a date and start playing the video file.
Step 5 Select the Split-screen Number from the dropdown list. Up to 16 screens are configurable.

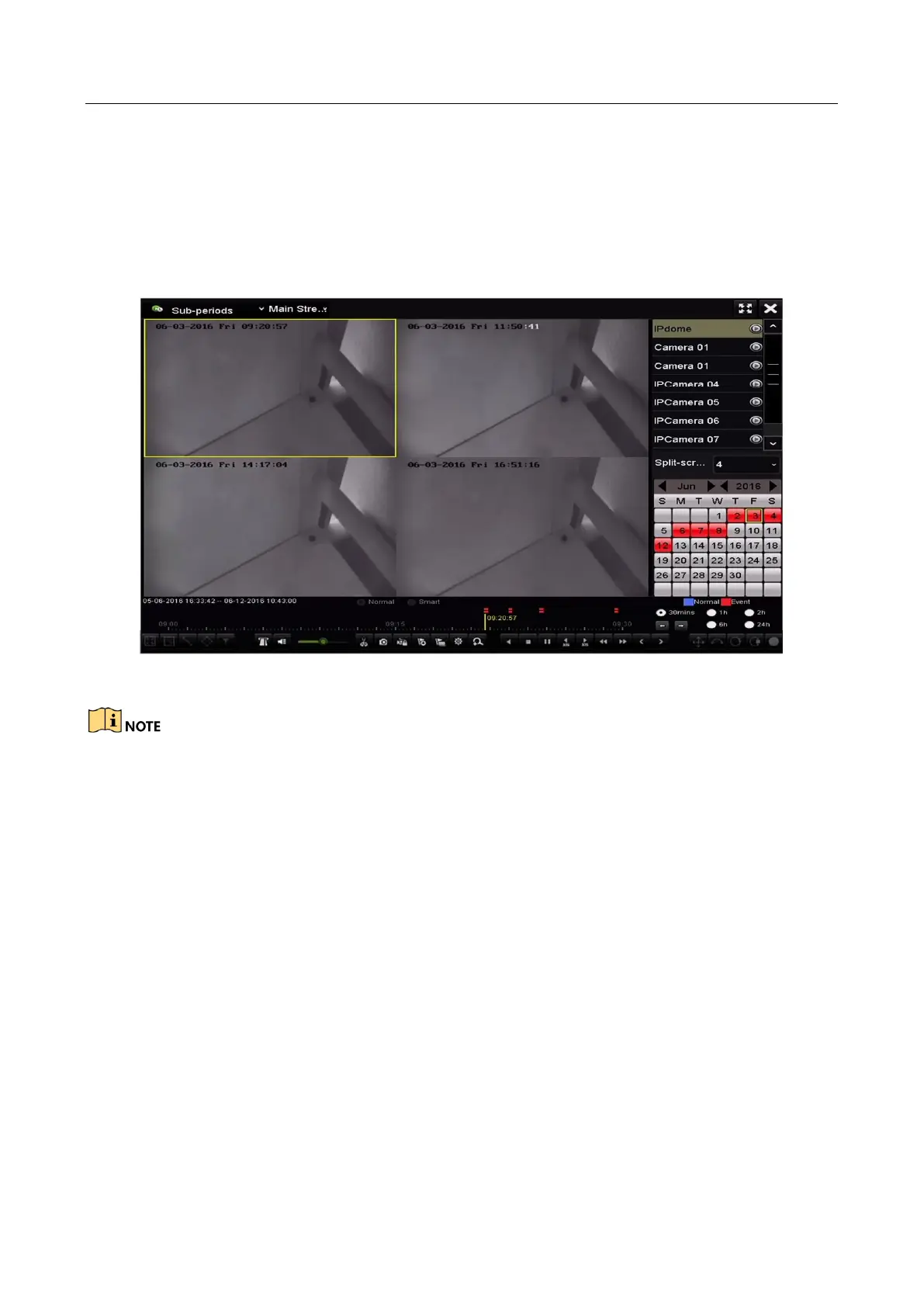

Figure 7-15 Interface of Sub-periods Playback
According to the defined number of split-screens, the video files on the selected date can be
divided into average segments for playback. E.g., if there are video files existing between 16:00 and
22:00, and the 6-screen display mode is selected, then it can play the video files for 1 hour on each
screen simultaneously.
7.1.7 Playing Back by System Logs
Purpose:
Play back record file(s) associated with channels after searching system logs.
Step 1 Go to Menu >Maintenance >Log Information.
Step 2 Click Log Search tab to enter Playback by System Logs.
Step 3 Set search time and type and click Search button.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION iDS-9632NXI-I8/16S and is the answer not in the manual?

HIKVISION iDS-9632NXI-I8/16S Specifications

General IconGeneral
Input bandwidth256 Mbit/s
Output bandwidth200 Mbit/s
Maximum frame rate30 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Wi-FiNo
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
RAID supportYes
HDD interfaceSerial ATA
Maximum storage capacity80 TB
Number of HDDs installed0
Number of HDDs supported8
RS-485 ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
Product colorBlack
Rack capacity2U
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Power consumption (typical)70 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
Weight10000 g
