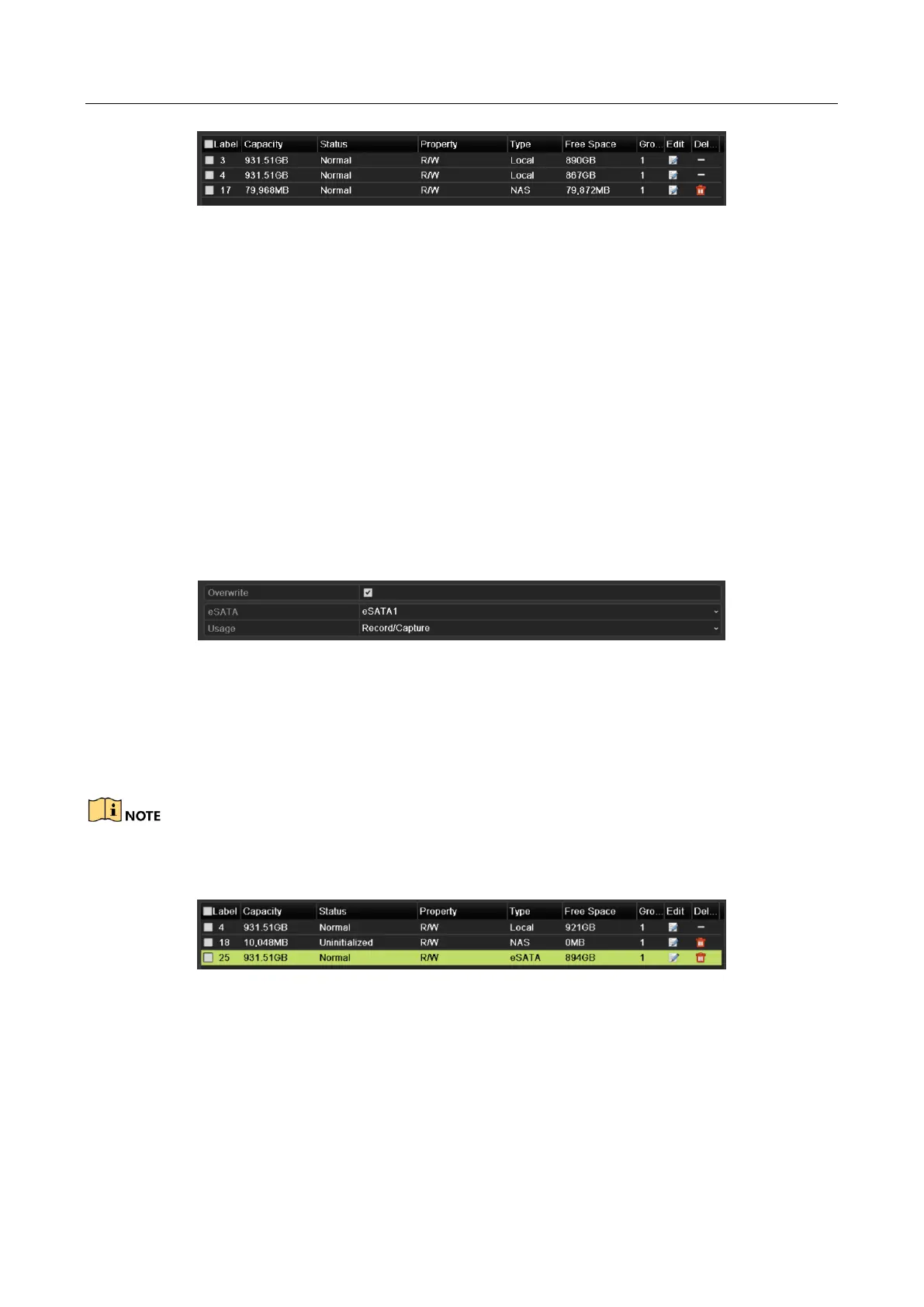

Figure 15-10 Initialize Added NetHDD
15.3 Managing eSATA
Purpose:
When there is an external eSATA device connected to NVR, you can configure eSATA for the use of
Record/Capture or Export, and you can manage the eSATA in the NVR.
Step 1 Go to Menu >HDD >Advanced.
Step 2 Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA.
Export: use the eSATA for backup. Refer to Backup using eSATA HDDs in Chapter Backing up
by Normal Video/Picture Search for operating instructions.
Record/Capture: use the eSATA for record/capture. Refer to the following steps for
operating instructions.
Figure 15-11 Set eSATA Mode
Step 3 When the eSATA type is selected to Record/Capture, enter the HDD Information interface.
Menu > HDD>General
Step 4 Edit the property of the selected eSATA, or initialize it is required.
Two storage modes can be configured for the eSATA when it is used for Record/Capture. Please
refer to Chapter Managing HDD Group and Chapter Configuring Quota Mode for details.
Figure 15-12 Initialize Added eSATA

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
