HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
187

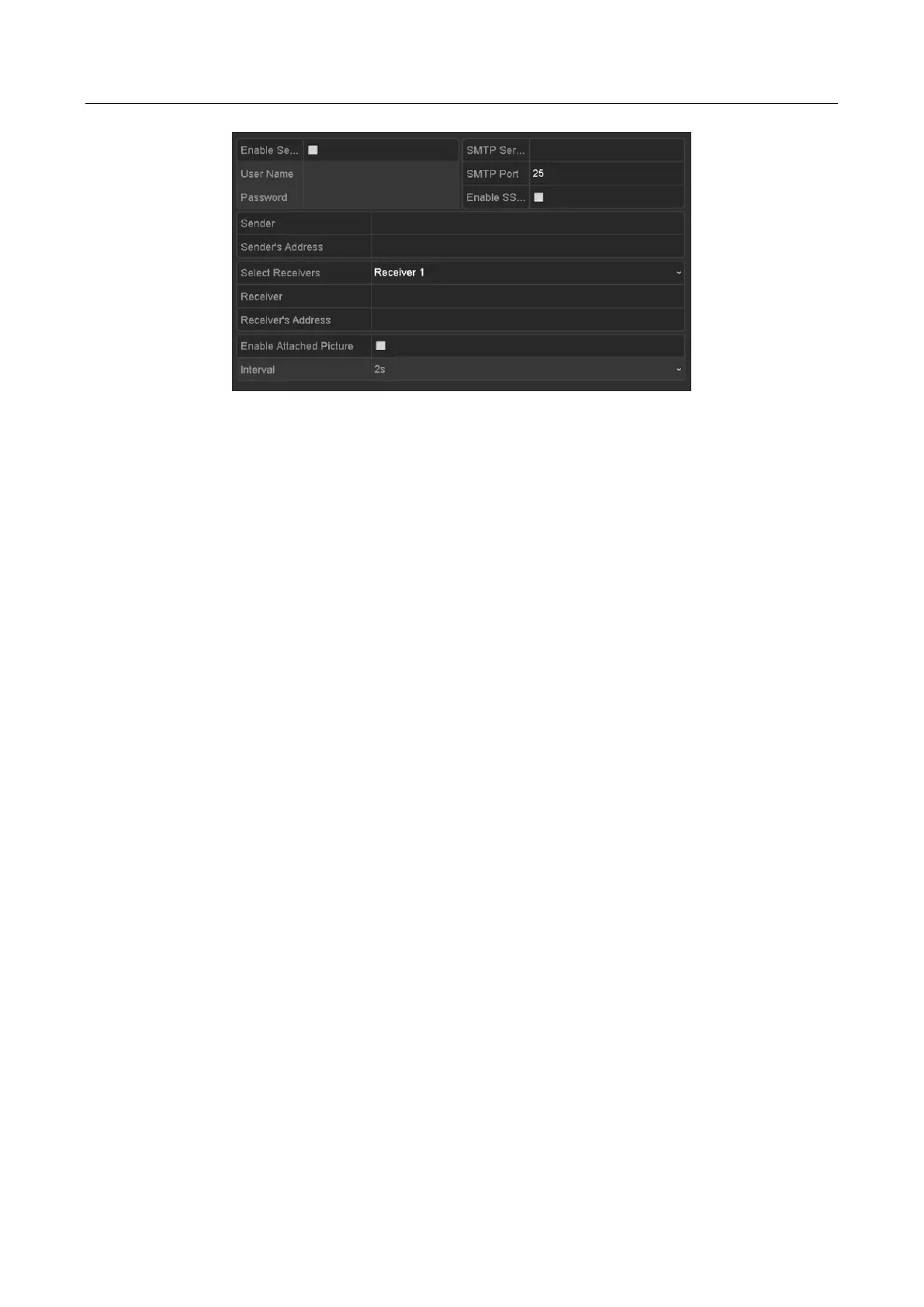

Figure 13-15 Email Settings Interface
Step 5 Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server
authentication feature.
User Name: The user name of sender’s account registered on the SMTP server.
Password: The password of sender’s account registered on the SMTP server.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL/TLS (optional): Click the checkbox to enable SSL/TLS if required by the SMTP
server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.
Receiver: The name of user to be notified.
Receiver’s Address: The Email address of user to be notified.
Enable Attached Picture: Check the checkbox of Enable Attached Picture if you want to send
email with attached alarm images. The interval is the time of two adjacent alarm images. You
can also set SMTP port and enable SSL here.
Interval: The interval refers to the time between two actions of sending attached pictures.
Step 6 Click Apply button to save the Email settings.
Step 7 You can click Test button to test whether your Email settings work.
13.2.8 Configuring NAT
Purpose:

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
