HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
184
The Server Port should be set to the range of 2000-65535 and it is used for remote client software
access. The HTTP port is used for remote IE access.

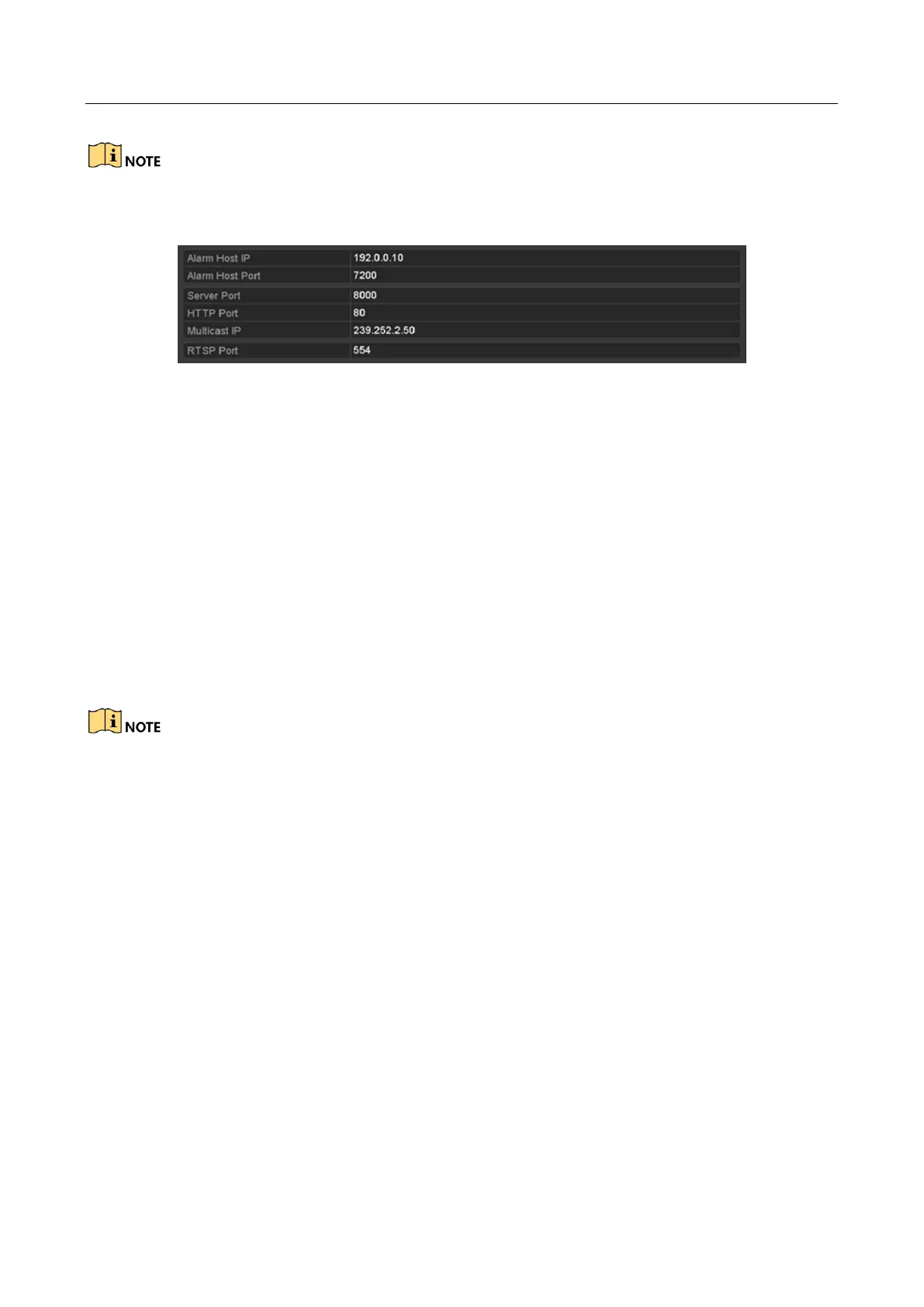

Figure 13-10 Configure More Settings
Step 4 Click the Apply button to save and exit the interface.
13.2.6 Configuring HTTPS Port
Purpose:
HTTPS provides authentication of the web site and associated web server that one is
communicating with, which protects against Man-in-the-middle attacks. Perform the following
steps to set the port number of https.
Example:
If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by
inputting https://192.0.0.64:443 via the web browser.
The HTTPS port can be only configured through the web browser.
Step 1 Open web browser, input the IP address of device, and the web server will select the
language automatically according to the system language and maximize the web browser.
Step 2 Input the correct user name and password, and click Login button to log in the device.
Step 3 Enter the HTTPS settings interface.
Step 4 Configuration > Remote Configuration > Network Settings > HTTPS
Step 5 Create the self-signed certificate or authorized certificate.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
