HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
233
17.5 Upgrading System
Purpose:
The firmware on your NVR can be upgraded by local backup device or remote FTP server.
17.5.1 Upgrading by Local Backup Device
Step 1 Connect your NVR with a local backup device where the update firmware file is located.
Step 2 Go to Menu >Maintenance >Upgrade.
Step 3 Click the Local Upgrade tab to enter the local upgrade menu, as shown in Figure 17-7.

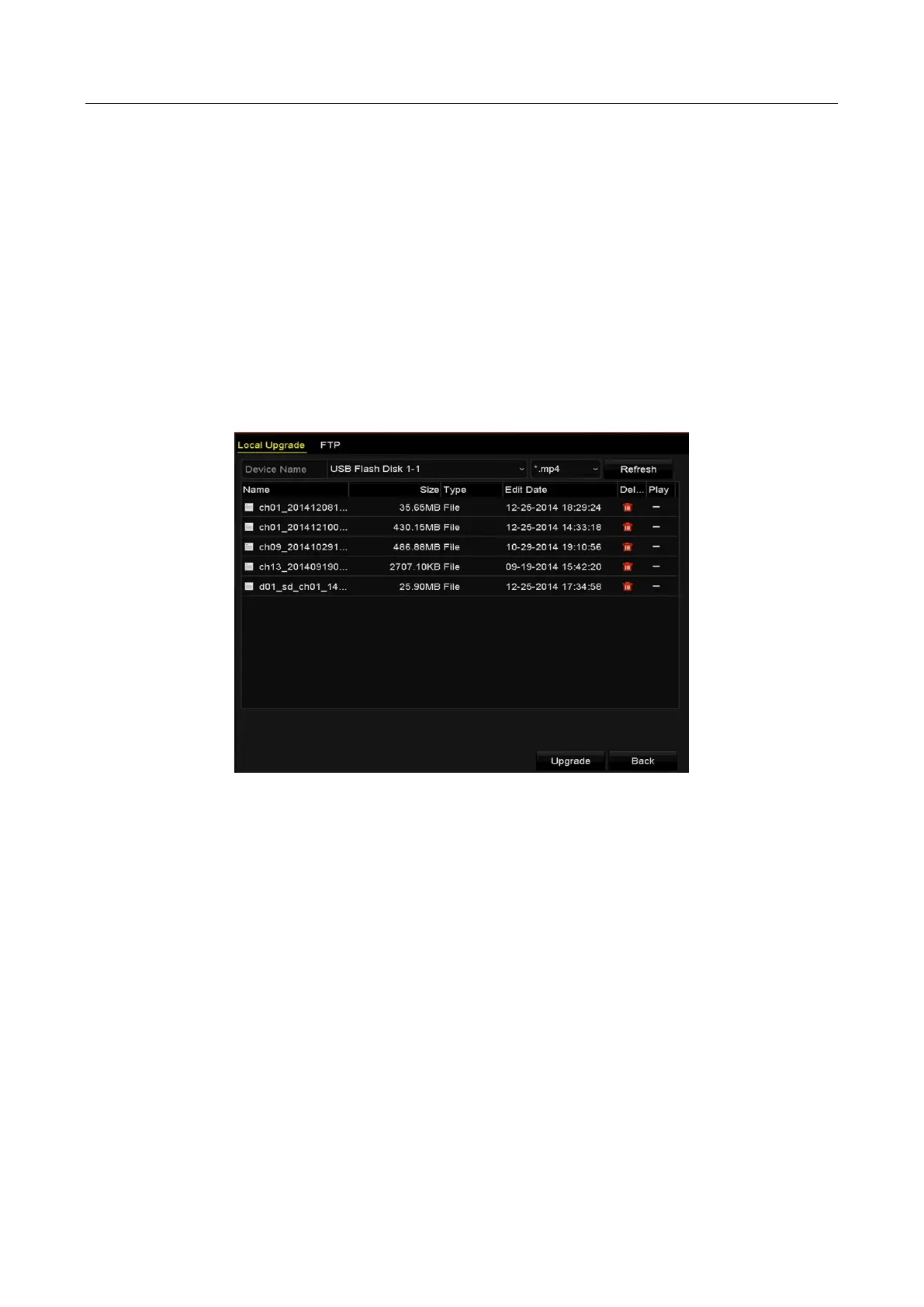

Figure 17-7 Local Upgrade Interface
Step 4 Select the update file from the backup device.
Step 5 Click the Upgrade button to start upgrading.
Step 6 After the upgrading is complete, reboot the NVR to activate the new firmware.
17.5.2 Upgrading by FTP
Before you start:
Ensure the network connection of the PC (running FTP server) and the device is valid and correct.
Run the FTP server on the PC and copy the firmware into the corresponding directory of your PC.
Step 1 Go to Menu >Maintenance >Upgrade.
Step 2 Click the FTP tab to enter the local upgrade interface, as shown in Figure 17-8.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
