11.5 Intrusion Detection
Purpose:
Intrusion detection function detects people, vehicle or other objects which enter and loiter in a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
Step 1 Go to Menu> Camera> VCA.
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Intrusion Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 (Optional) Check the checkbox to enable the Human Body of target interest to filter the
non-human body pictures and video files which are not triggered by intrusion detection.
Step 6 Click to configure the trigger channel, arming schedule and linkage actions for the line
crossing detection alarm.
Step 7 Click the Rule Settings button to set the intrusion detection rules. Set the following
parameters.
1) Threshold: Range [1s-10s], the threshold for the time of the object loitering in the region.
When the duration of the object in the defined detection area is longer than the set time,
the alarm will be triggered.
2) Click-and-drag the slider to set the detection sensitivity.
3) Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which
can trigger the alarm. The higher the value is, the more easily the detection alarm can be
triggered.
4) Percentage: Range [1-100]. Percentage defines the ratio of the in-region part of the
object which can trigger the alarm. For example, if the percentage is set as 50%, when
the object enters the region and occupies half of the whole region, the alarm is
triggered.

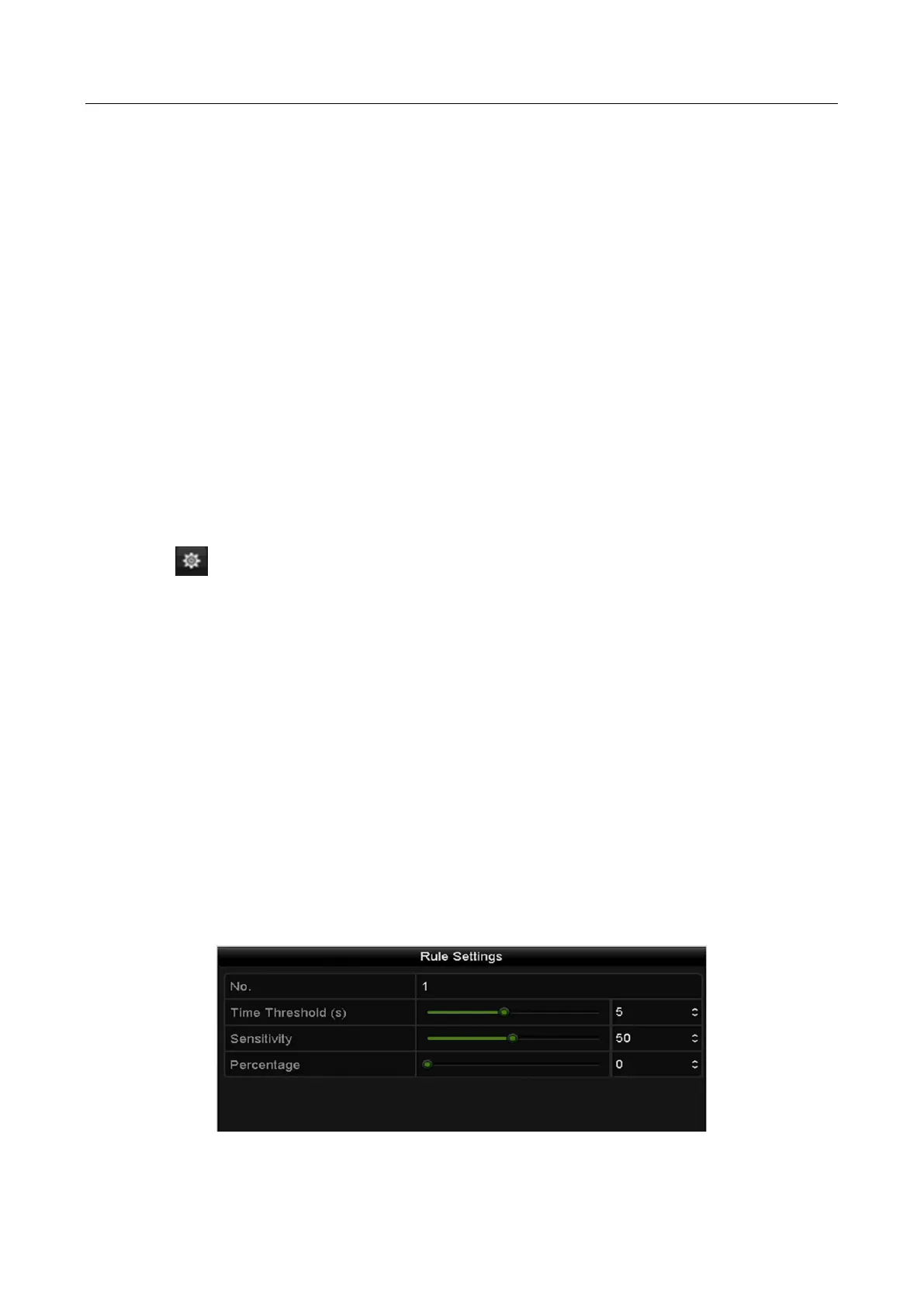

Figure 11-8 Set Intrusion Crossing Detection Rules

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
