Step 4 Edit the array name in the Array Name text filed and click OK button to start configuring
array.
If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It
is recommended to set hot spare disk for automatically rebuilding the array when the array is
abnormal.
Step 5 When the array configuration is completed, click OK button in the pop-up message box to
finish the settings.
Step 6 You can click Array tab to view the information of the successfully created array.
By default, one-touch configuration creates an array and a virtual disk.

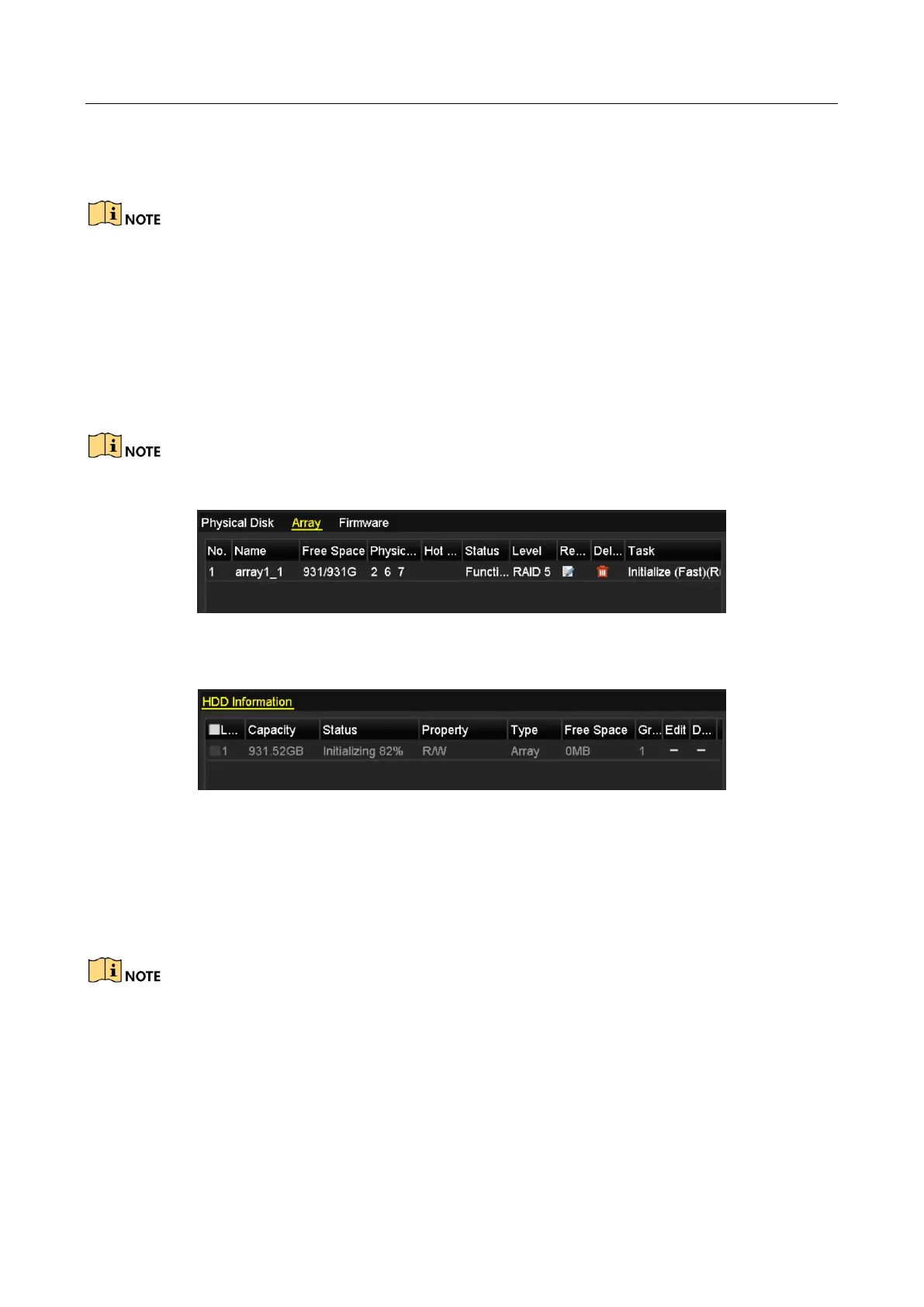

Figure 14-5 Array Settings Interface
Step 7 A created array displays as an HDD in the HDD information interface.
Figure 14-6 HDD Information Interface
14.1.4 Manually Creating Array
Purpose:
You can manually create the array of RAID 0, RAID 1, RAID 5, RAID6 and RAID 10.
In this section, we take RAID 5 as an example to describe the manual configuration of array and
virtual disk.
Step 1 Go to Menu >HDD >RAID >Physical Disk.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
