HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
82
6.5 Configuring VCA Event Recording
Purpose:
The event triggered recording can be configured through the menu. Then events include the
motion detection, alarm and VCA events (face detection/face capture, line crossing detection,
intrusion detection, region entrance detection, region exiting detection, loitering detection, people
gathering detection, fast moving detection, parking detection, unattended baggage detection,
object removal detection, audio loss exception detection, sudden change of sound intensity
detection, and defocus detection).
Step 1 Go to Menu >Camera >VCA
Step 2 Select a camera for the VCA settings.

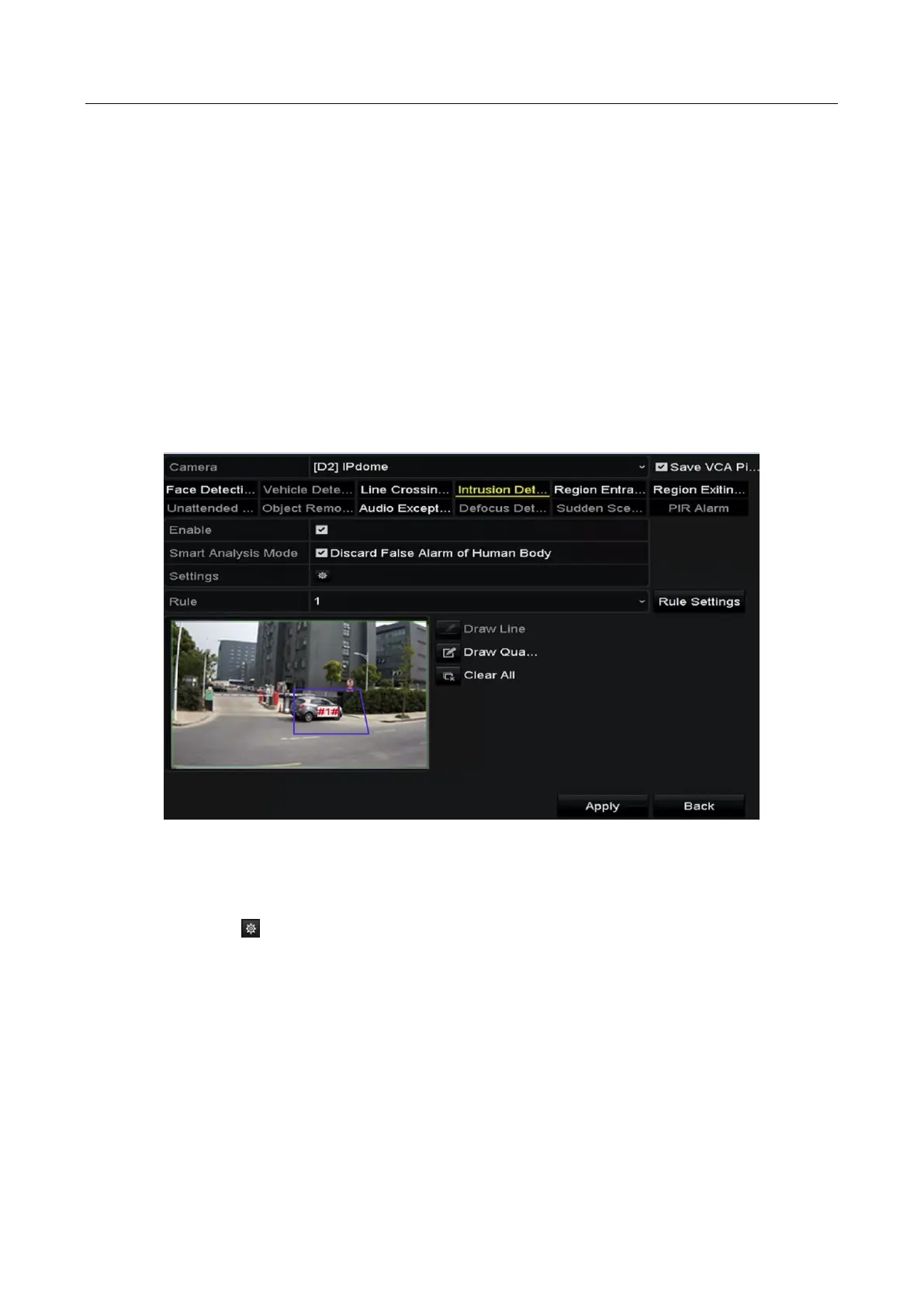

Figure 6-18 VCA Settings
Step 3 Configure the detection rules for VCA events. For details, please refer to Chapter 11 VCA
Alarm.
Step 4 Click the icon to configure the alarm linkage actions for the VCA events.
Step 5 Select Trigger Channel tab and select one or more channels which will start to record when
VCA alarm is triggered.
Step 6 Click Apply to save the settings

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
