HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
239
18.4 Configuring More Settings
Step 1 Go to Menu >Configuration >General > More Settings.
Step 2 Click the More Settings tab to enter the More Settings interface.

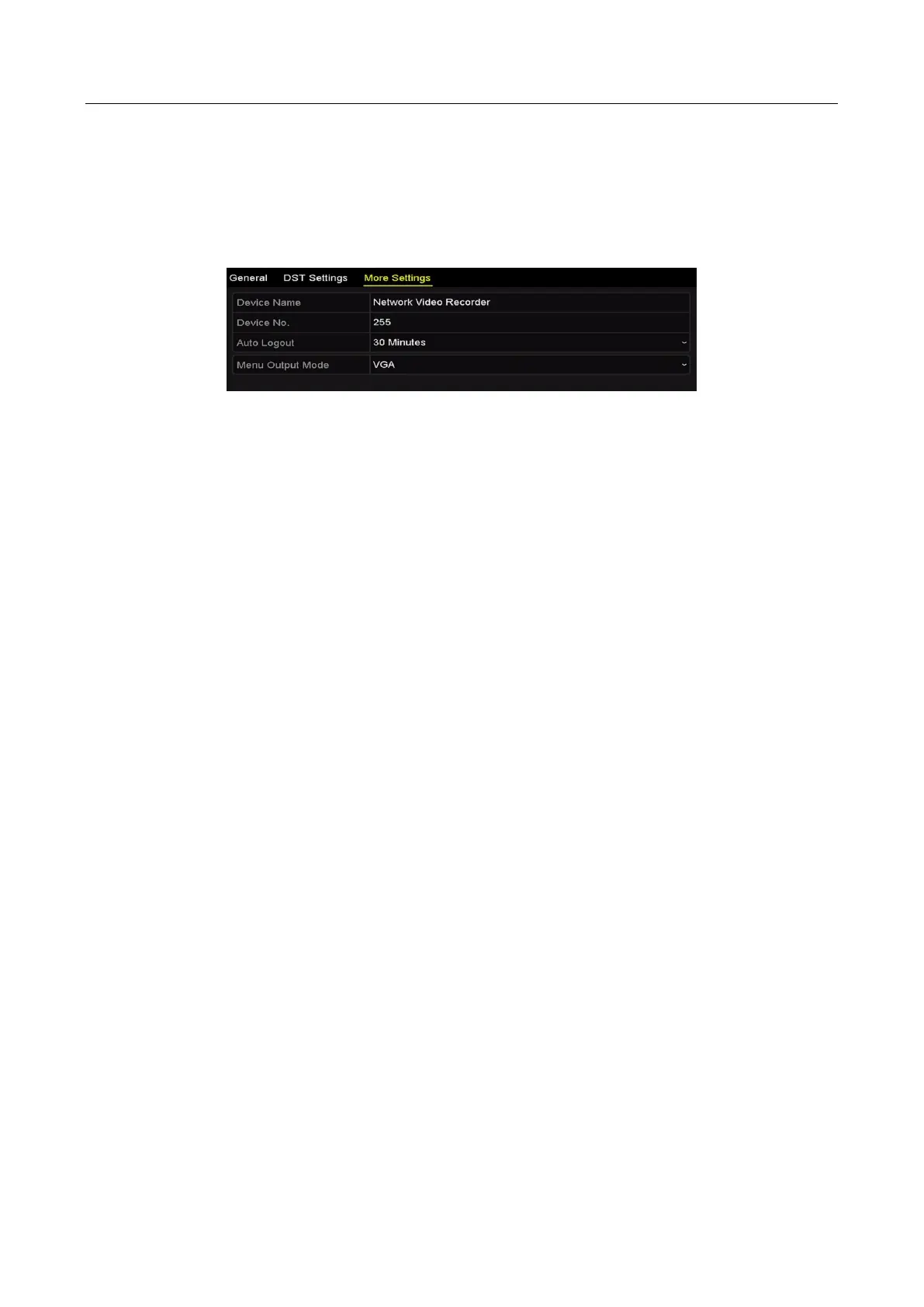

Figure 18-4 More Settings Interface
Step 3 Configure the following settings:
Device Name: Edit the name of NVR.
Device No.: Edit the serial number of NVR. The Device No. can be set in the range of 1~255,
and the default No. is 255. The number is used for the remote and keyboard control.
Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen after
5 minutes of menu inactivity.
Enable HDMI/VGA Simultaneous Output: By default, the video outputs from HDMI and VGA
interfaces can be operated separately. You can set the simultaneous output for the HDMI and
VGA by checking the checkbox of the option.
Menu Output Mode: You can choose the menu display on different video output. You can
select the menu output mode to VGA/HDMI, VGA2/HDMI2.
Step 4 Click the Apply button to save the settings.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
