HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
221
15.8 HDD Detection
Purpose:
The device provides the HDD detection function such as the adopting of the S.M.A.R.T. and the Bad
Sector Detection technique. The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is
a monitoring system for HDD to detect and report on various indicators of reliability in the hopes
of anticipating failures.
S.M.A.R.T. Settings
Step 1 Go to Menu >Maintenance >HDD Detect.
Step 2 Select the HDD to view its S.M.A.R.T information list, as shown in Figure 15-27.

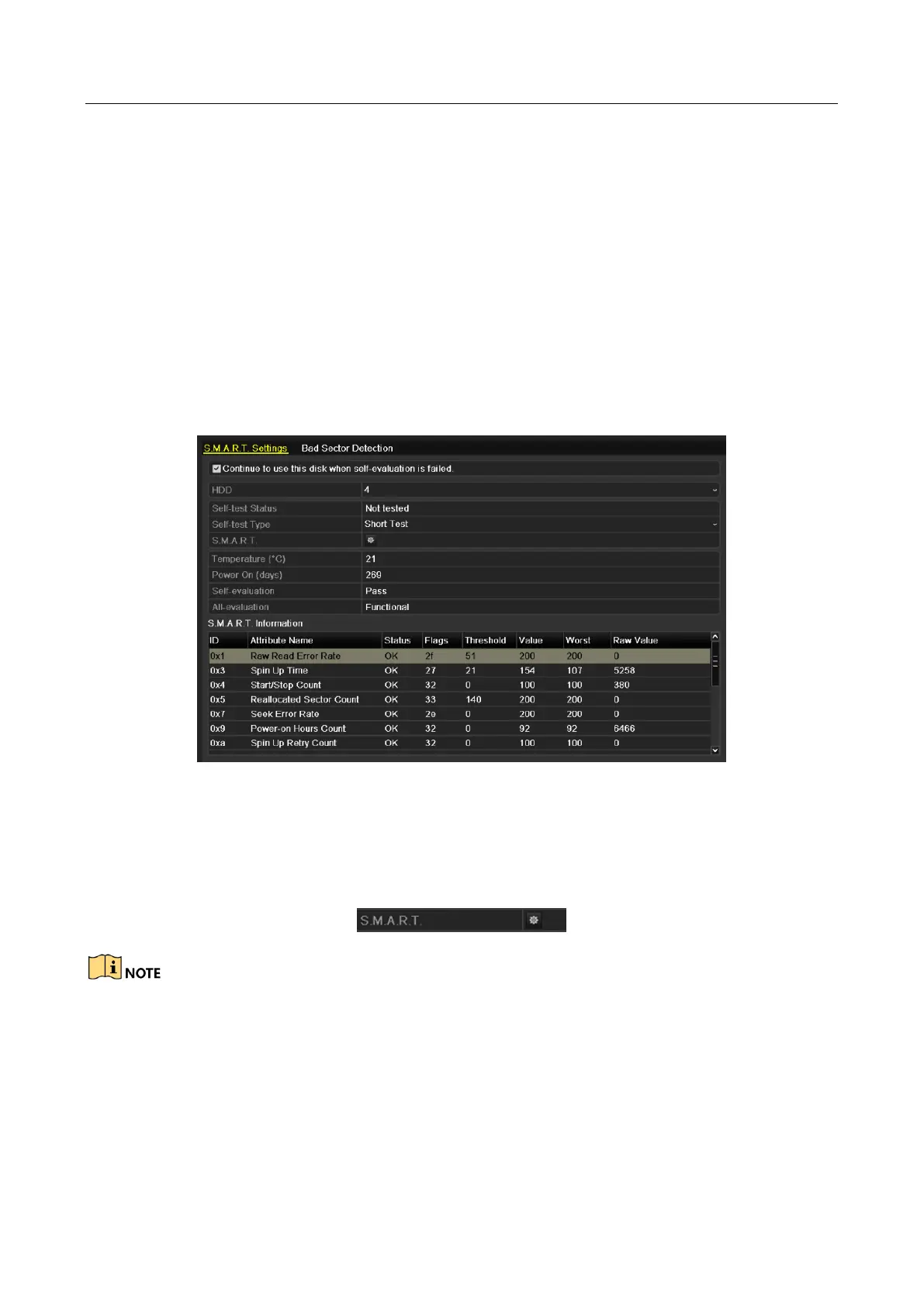

Figure 15-27 S.M.A.R.T Settings Interface
The related information of the S.M.A.R.T. is shown on the interface.
You can choose the self-test types as Short Test, Expanded Test or the Conveyance Test.
Click the start button to start the S.M.A.R.T. HDD self-evaluation.
If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the
checkbox of the Continue to use the disk when self-evaluation is failed item.
Bad Sector Detection
Step 3 Click the Bad Sector Detection tab.
Step 4 Select the HDD No. in the dropdown list you want to configure, and choose All Detection or
Key Area Detection as the detection type.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
