HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
227
16.3 Configuring Video Parameters
Purpose:
You can customize the image parameters including the brightness, contrast, saturation, image
rotate and mirror for the live view and recording effect.
Step 1 Go to Menu > Camera >Image.

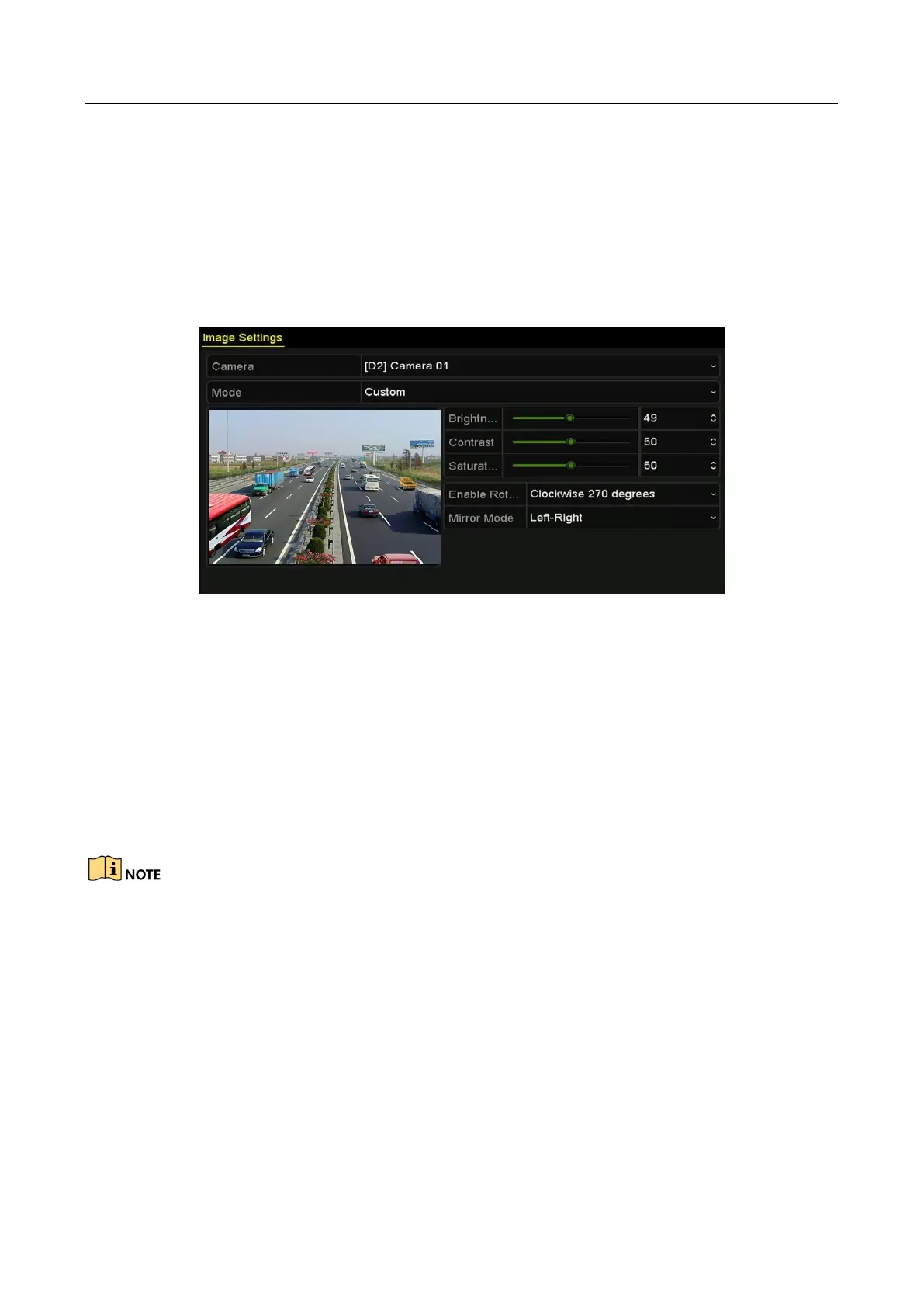

Figure 16-4 Image Settings Interface
Step 2 Select the camera to set image parameters.
Step 3 Adjust the slider or click on the up/down arrow to set the value of the brightness, contrast or
saturation.
Step 4 Select the Enable Rotate function to Clockwise 270 degrees or OFF. When OFF is selected,
the image is restored to original.
Step 5 Select the Mirror Mode to Left-Right, Up-Down, Center or OFF. When OFF is selected, the
image is restored to original.

The Rotate and Mirror functions must be supported by the connected IP camera.

The image parameters adjustment can affect both the live view and the recording quality.
Step 6 Click the Apply button to save the settings.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
