Deskstar T7K500 Hard Disk Drive Specification
28
6.5.2 RX+ / RX-
These signals are the inbound high-speed differential signals that are connected to the serial ATA cable.
The following standard shall be referenced about signal specifications.
Serial ATA: High Speed Serialized AT Attachment Revision 1.0a 7-January -2003
Serial ATA-II Electrical Specification 1.0 26-May-2004.
Serial ATA-II Extensions to Serial ATA 1.0a Rev.1.2 27-Aug-2004.

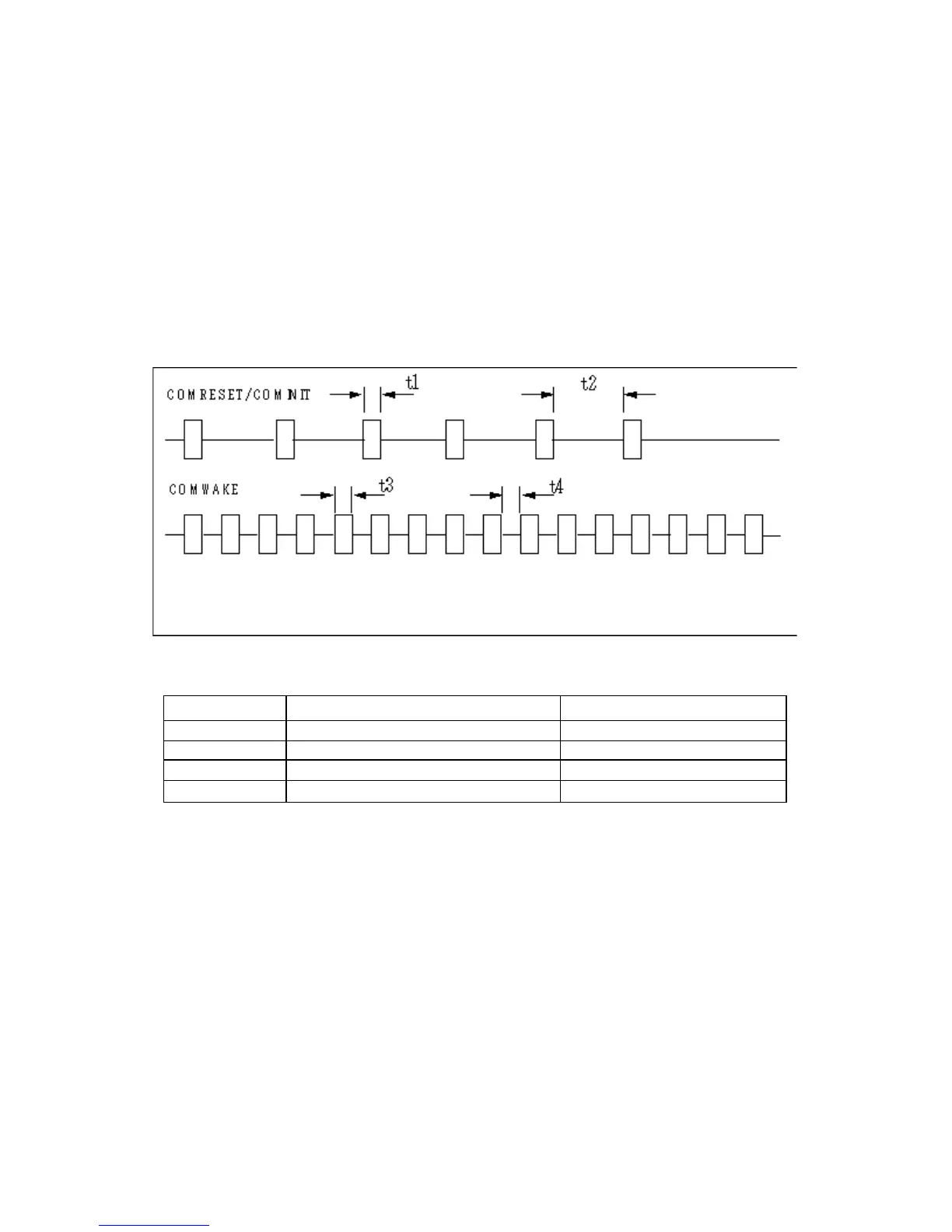

6.5.3 Out of band signaling (SATA model)
PARAMETER DESCRIPTION Nominal (ns)
t1 ALINE primitives 106.7
t2 Spacing 320
t3 ALIGN primitives 106.7
t4 Psacing 106.7
