Deskstar T7K500 Hard Disk Drive Specification
58
7.5.2 Mounting hole locations

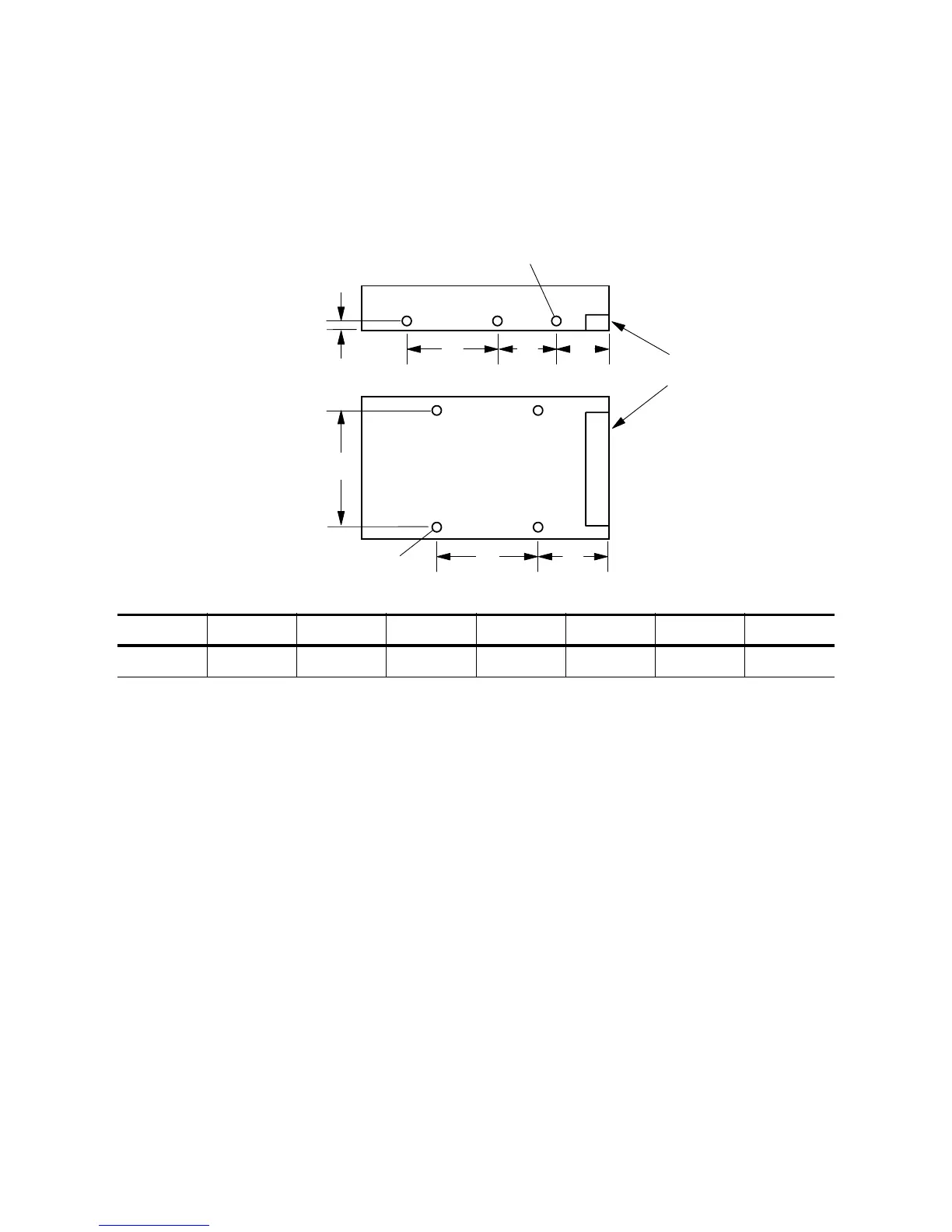

The mounting hole locations and size of the drive are shown below. All dimensions are in mm.
Thread(1)(2)(3)(4)(5)(6)(7)
6-32 UNC 41.28±0.5 44.45±0.2 95.25±0.2 6.35±0.2 28.5±0.5 60.0±0.2 41.6±0.2
Side View
(5)(6) (7)
Bottom View
(1)(2)
(3)
(4)
I/F Connector
(4X) Max. penetration 4.0 mm
(6X) Max. penetration 4.5 mm
