Deskstar T7K500 Hard Disk Drive Specification
45
7.1.4 Jumper positions
7.1.4.1 16 logical head default (normal use)

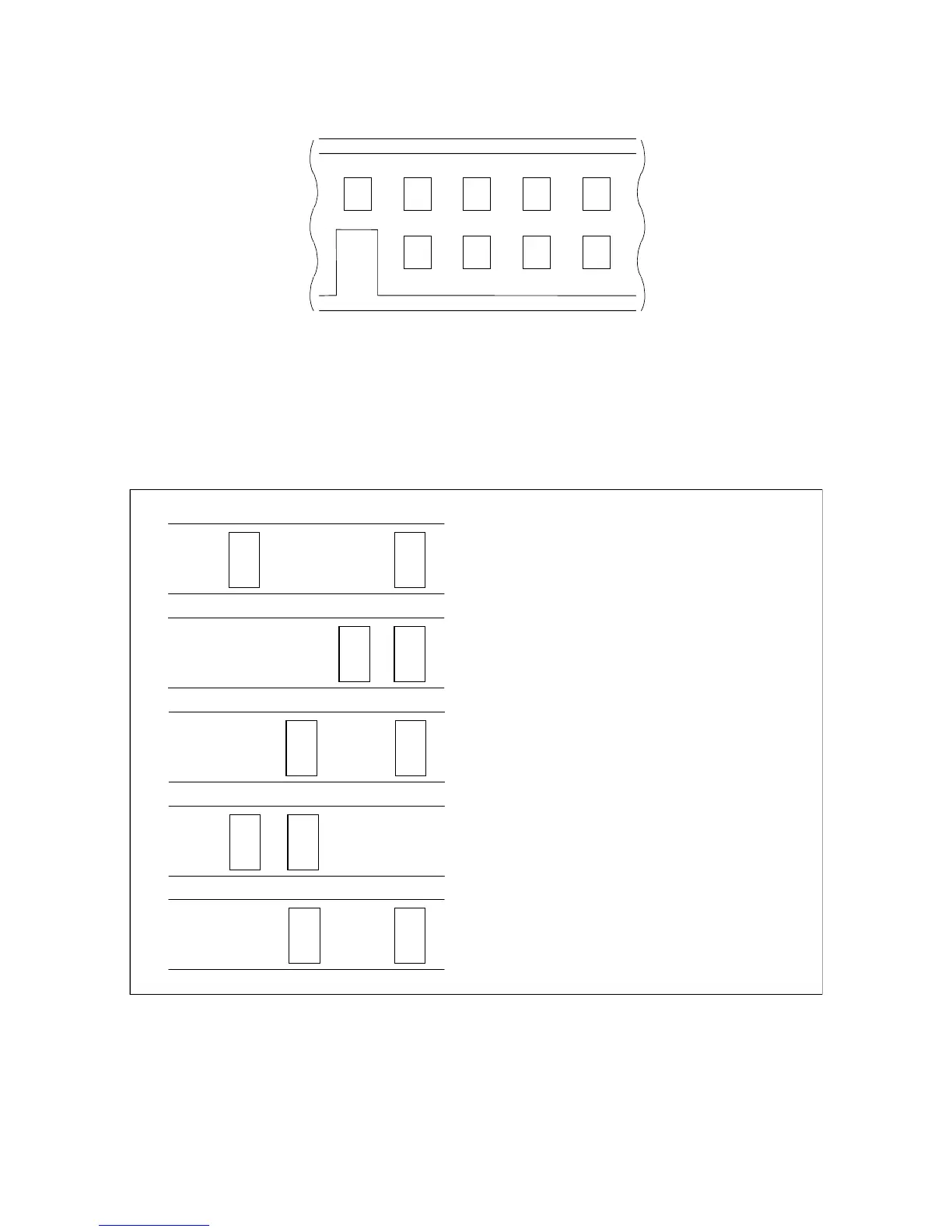

The figure below shows the jumper positions used to select Device 0, Device 1, Cable Selection, or Device1
(Slave) Present.
GND
DS
IGECA
H
D
BF
RSV
GND GND RSV
CS/ SP
GND
RS V
G
I
ECA
HFDB
DEVICE 0 (Master)
G
I
ECA
HFDB
DEVICE 1 (Slave)
G
I
ECA
HFDB
CABLE SEL
G
I
ECA
HFDB
DEVICE 1 (Slave) Present
G
I
ECA
HFDB
Shipping Default Condition
(CABLE SEL)
