MAINTENANCE
ACG Fuse
<Replacement>
A spare fuse is located on the junction
box.
Push two pawls, then pull out the
spare fuse.
1. Stop the engine.
2. Disconnect the battery (see page
130).
3. Remove the engine cover (see page
57).
4. Open the junction box cover.
5. Remove the old fuse by removing
two 5 mm screws.
6. Install a new fuse by tightening two
5 mm screws.
7. After finishing replacement, close
the junction box cover.

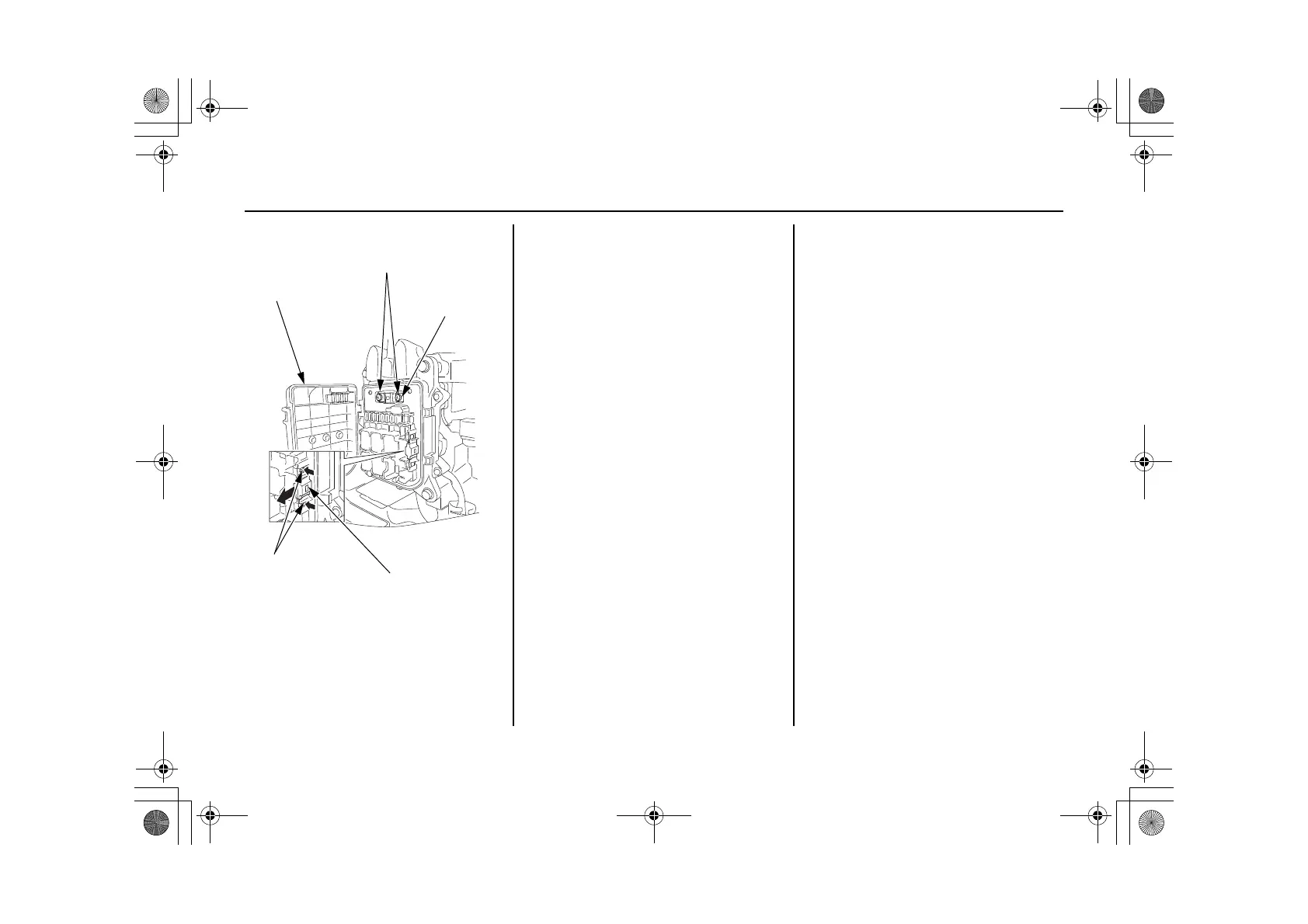

JUNCTION
BOX COVER
5 mm SCREWS
ACG FUSE
(150 A)
SPARE FUSE
(150 A)
PAWLS
