Honda BF250D - Trimming the Outboard Motor

91
OPERATION
For multiple outboard motors, the
trim/tilt angle of all outboard motors
is adjusted at the same time by using
the power trim/tilt switch on the
remote control lever and the trim/tilt
angle of each outboard motor is
adjusted by using each power trim/tilt
switch on the panel.

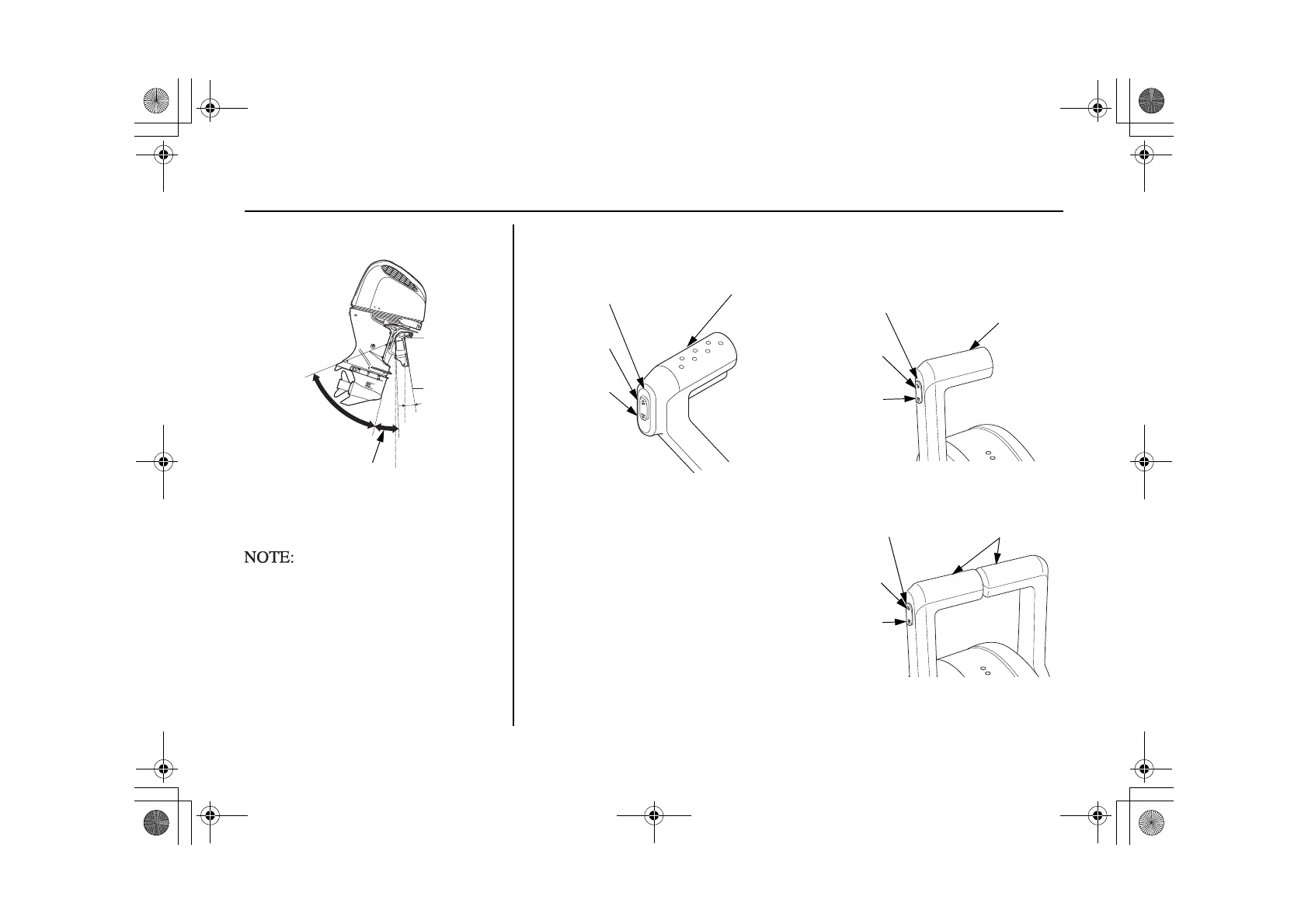

Trimming the Outboard Motor
(VERTICAL LINE)
(when transom angle is 12°)
68°
0°
0°
12°
– 4°
TRIM ANGLE
16°
TILT ANGLE
(D1 type)
REMOTE
CONTROL
LEVER
POWER
TRIM/TILT
SWITCH
Press UP to
raise bow
Press DN to
lower bow.
(D2 type)
(single type)
REMOTE
CONTROL
LEVER
POWER
TRIM/TILT
SWITCH
(dual type)
POWER
TRIM/TILT
SWITCH
REMOTE
CONTROL
LEVERS
Press UP to
raise bow
Press DN to
lower bow.
Press UP to
raise bow
Press DN to
lower bow.
