134
MAINTENANCE
If the propeller is damaged by
striking a rock, or other obstacle,
replace the propeller as follows.
Replacement
1. Remove the cotter pin then remove
the 18 mm castle nut, washer,
propeller and thrust washer.
2. Install the new propeller in the
reverse sequence to removal.
3. Tighten the castle nut with your
hand first until the propeller has no
play. Then, tighten the castle nut
again with a tool until the groove in
the castle nut aligns with the cotter
pin hole. (Note that this tool is not
included in the tools that come
together with the outboard motor.)
TIGHTENING TORQUE:
1 N·m (0.1 kgf·m, 0.7 lbf·ft)
UPPER LIMIT OF TORQUE:
44.1 N·m (4.5 kgf·m, 32.5 lbf·ft)
4. Be sure to replace the cotter pin
with a new one.
• Install the thrust washer with the
grooved side toward the gear case.
• Use a genuine Honda cotter pin and
bend the pin ends as shown.
• Before replacing the propeller,
remove the emergency stop
switch clip from the emergency
stop switch to prevent any
possibility of the engine being
started while you are working
with the propeller.
• The propeller blades may have
sharp edges, so wear heavy
gloves to protect your hands.

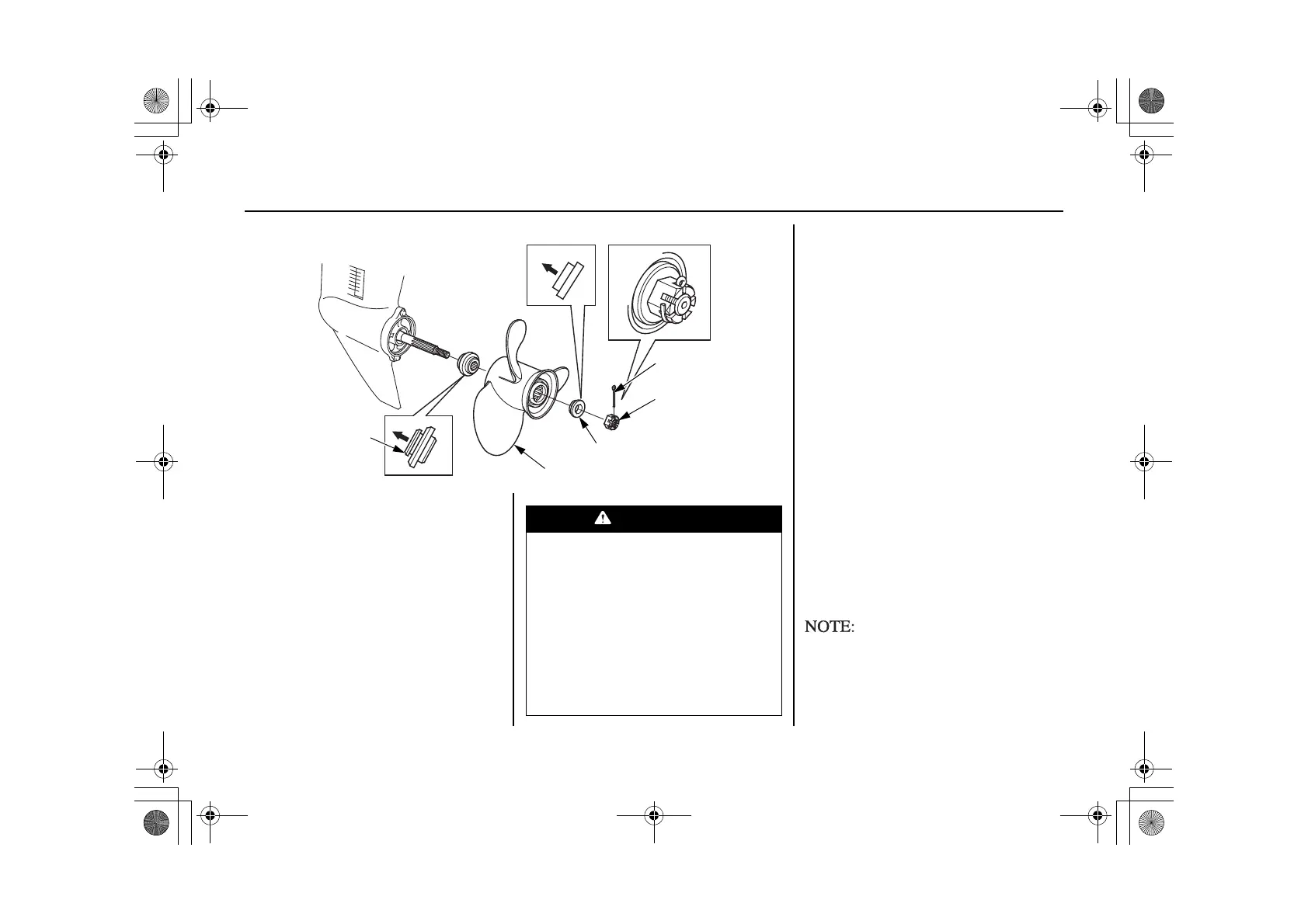

Propeller
COTTER PIN
CASTLE NUT
WA SH ER
PROPELLER
THRUST WASHER
