48
INSTALLATION

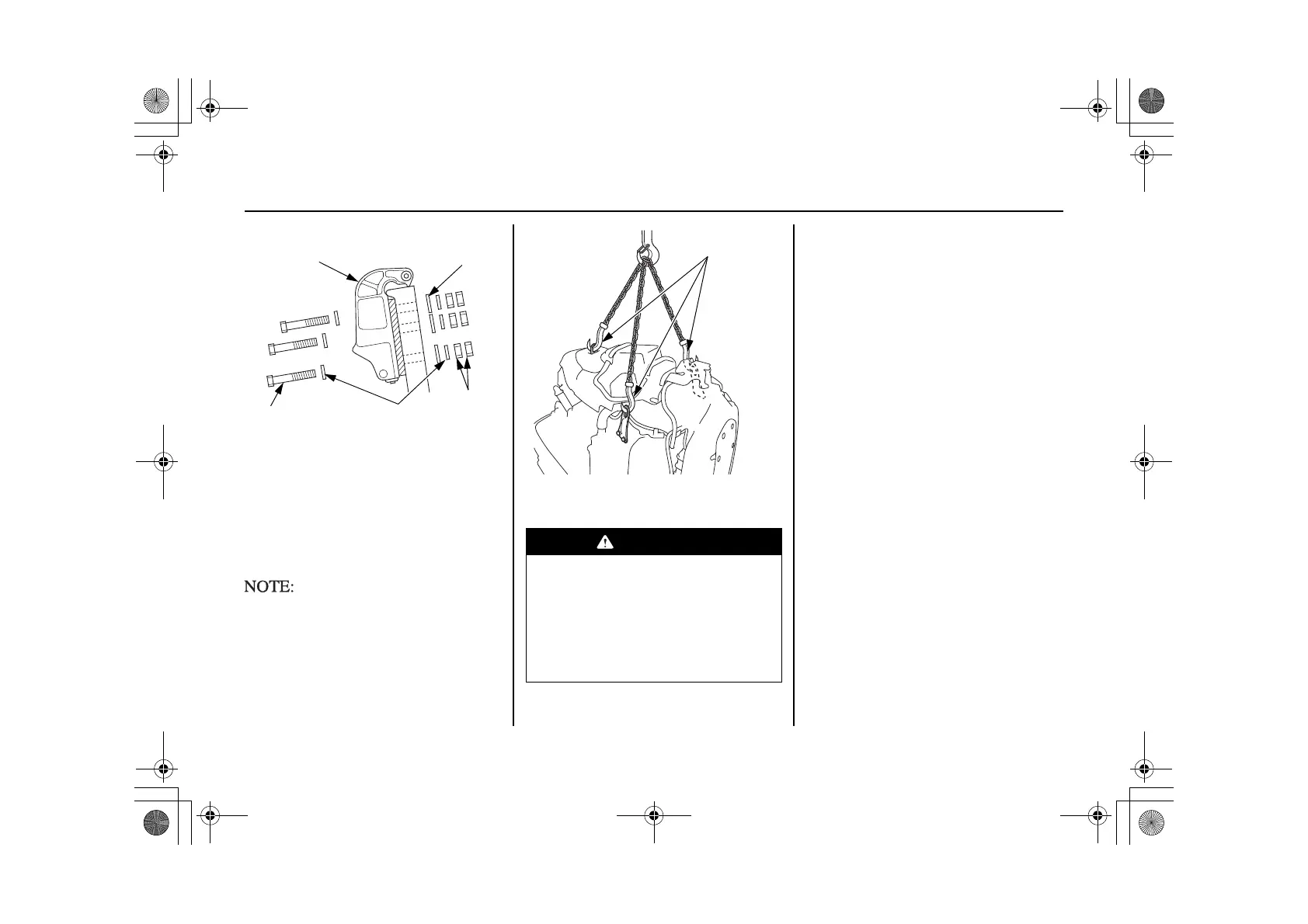

Outboard Motor Installation
1. Apply the silicone sealant (Three
Bond 1216 or equivalent) to the
outboard motor mounting holes.
2. Set the outboard motor on the boat
and secure with the bolts, washers,
and lock nuts.
Standard torque:
55 N·m (5.6 kgf·m , 41 lbf·ft)
The standard torque is given just as a
guideline. Torque of the nut can be
different according to the material of
the boat. Consult with an authorized
Honda outboard motor dealer.
Before installing the outboard motor on
the boat, hang the outboard motor with
the hoist or equivalent devise by attaching
the three lifting eyes to the outboard.
Use the hoist which allowable load is
300 kg (661 lbs) or above.
BOLT (6)
NUT (12)
STERN BRACKET
WAS H E R (6 )
WAS H E R (1 2 )
Install the outboard motor
securely. Loosely mounted
outboard motor can result in
accidental loss of the outboard
motor and damage and injury to
the equipment and personnel.
42ZVL600.book 48 ページ ２０１８年７月１９日 木曜日 午前９時６分
