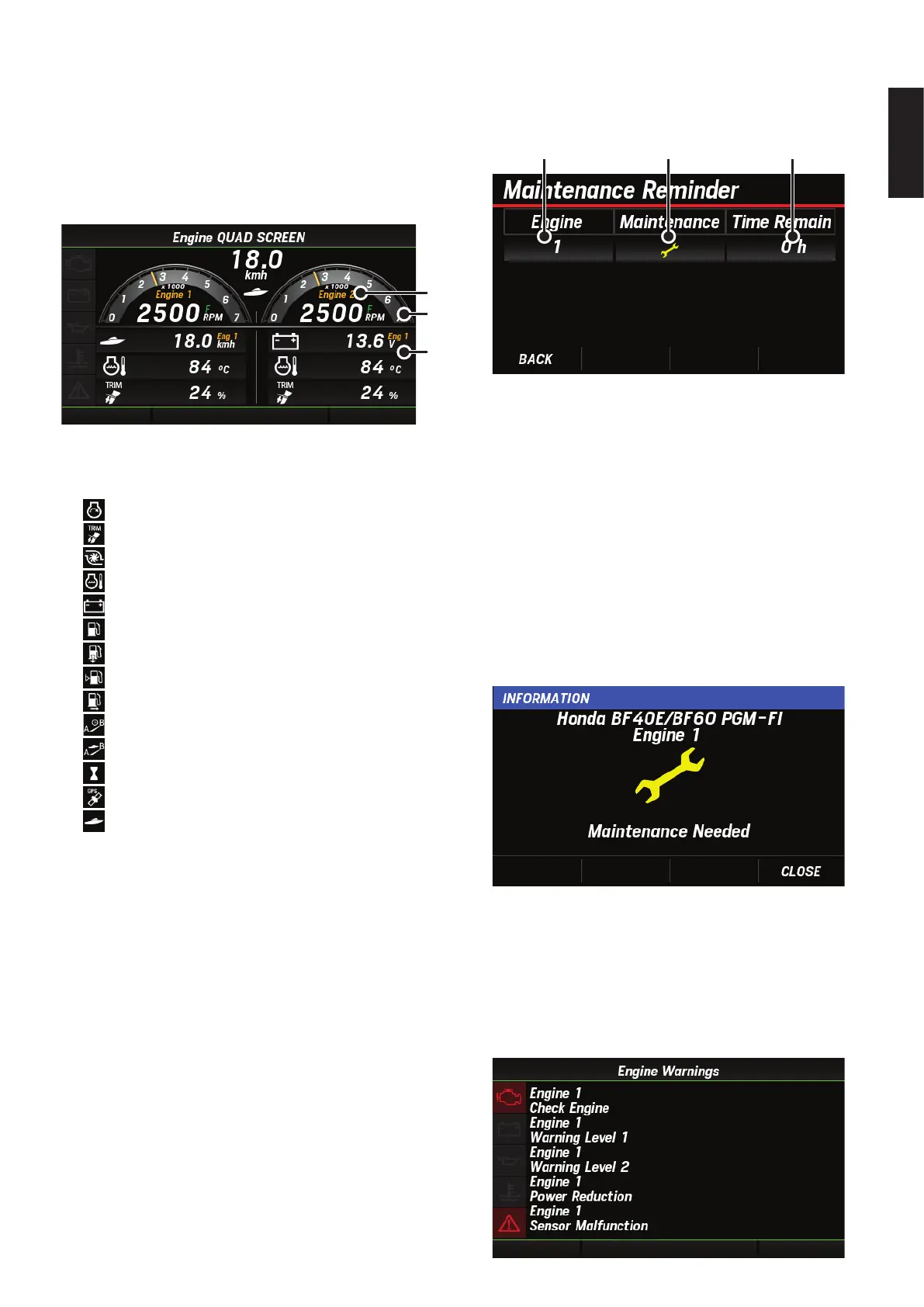

Quad screen layout
Displays information about the single engine, or multiple
engines simultaneously by dividing the screen into four.
In the single screen layout, triple screen layout, and quad
screen layout, the number of divisions of the screen diers.
You can change the layout, the number of pages, and the
display contents of the screen. (P.27)
(2)
(1)
(3)
(1) Number of the engine currently selected
(2) Engine speed (analog display and digital display)
(3) You can select the following options. (digital display)
Engine speed
Trim angle
Engine boost pressure
Engine temperature
Battery voltage
Fuel level
Instantaneous fuel consumption
Fuel eciency
Total fuel consumption
Cruising time
Cruising distance
Total operation time
Speed over ground
Speed over water
Maintenance check screen
Displays the status of a maintenance notication to each
engine and the time until the next maintenance notication is
made.
(1) (2) (3)
(1) Engine number
Number set in each engine.
(2) Maintenance icon
Status of a maintenance notication to each engine.
When the remaining time before maintenance reaches 0
hours, an icon notifying of periodic inspection appears.
(3) Remaining time before maintenance display
Time until a maintenance notication to each engine is
made.
• When a periodic inspection time signal is received from the
outboard motor, the following pop-up window appears.
You can close the pop-up window by pressing any button in
the Multi-Function Display.
* Display of the maintenance time pop-up notication can be set
to ON or OFF. (P.41)
Engine warning screen
Displays the contents of warnings that are currently being
issued. If there are no warnings to display, the No Engine
Warning message appears.
