Honda CB200 User Manual

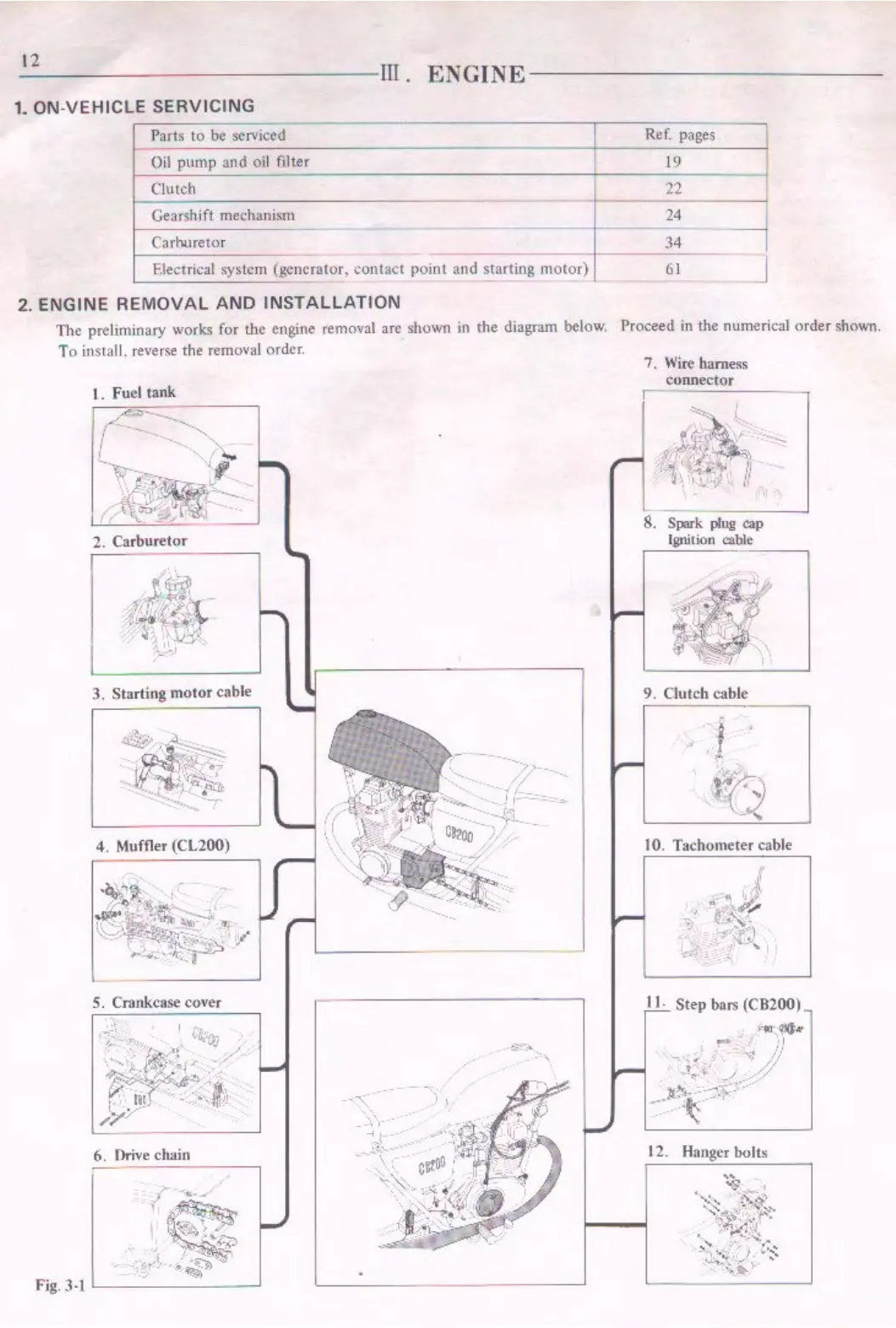

12
- -- - - ----- -III . ENGINE---- ------ -
,. ON- VEHI CLE SERVICING
Parts to be ser\'iced
Ref. pages
Oil
pump and oil filt er
19
-
C'lu1ch
22
-
-
Gear,h if t mechanism 24
Cart)uretor 34
7
-
F.lectrical system (generator. contacc point and starting motor) 61
J
2. ENGINE REMOVAL AND INSTALLATION
The prelim i nary wo,ks for the engine removal are sh.own in the diagra.m below, Proceed in the numerical or der shown .
To install.
reverse the removal order .
I. Fuel tank
2. Car buretor
3. Sta rt ing m otor cab le
4.
Mu ffler (CL200)
S. Crankcase cover
,\c I ,.
---~· ' ,;;,,... .
4- - ;t° ·.· -~ .... VJ /
' .. ..... · ~~. , '. /.
- ~-· 12,; 1,· ·>
~~ -~ ii
[
v.- ·u !J · · _, _. .,. .. .. ,A
y
,7
6. Drive chliin
/ ~
-. ~
~}'-~- ·~~""'
Fig. 3-1 '------ - --'
7. Wi re ham~s
connector
r
8. Spark plug cap
l8Jution cable
9. CJutcb cable
I 0. Tachometer cable
I l · Step bars (CB200)
12. Hanger bolts

Honda CB200 Specifications

General

Compression Ratio	9.0:1
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Brake	Drum
Fuel Capacity	12 Liters
Rear Suspension	Twin shock absorbers
